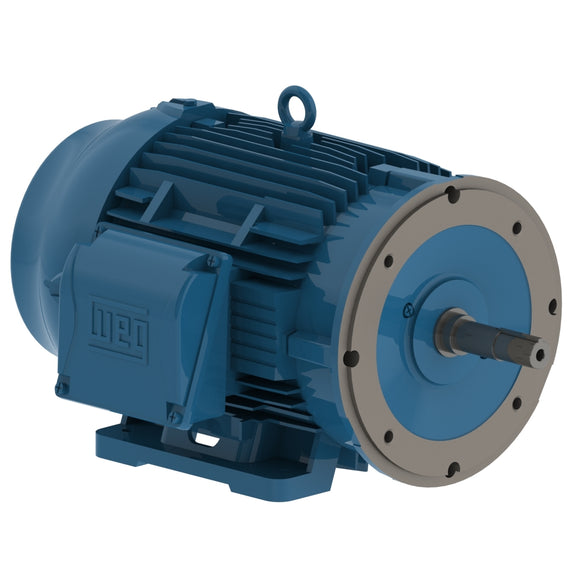

02036ET3E256JM-W22 WEG 20HP JM Close Coupled Pump Electric Motor, 3600 RPM

$2,638.85 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 02036ET3E256JM-W22 Barcode: 7891327602342

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 254JM/256JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 11641169, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Description Product Specs Manufacturer

Electric Motors

Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 46.5/23.3 A
L. R. Amperes 284/142 A
LRC 6.1x(Code G)
No load current 11.2/5.60 A
Rated torque 29.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.7  91.0  91.0

Power factor

50% 75% 100%
0.79  0.86  0.89
Frame 254/6JM
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 20.6 A
L. R. Amperes 144 A
LRC 7.0x(Code H)
No load current 5.50 A
Rated torque 26.8 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.6  90.9  91.2

Power factor

50% 75% 100%
0.78  0.86  0.89
Frame 254/6JM
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 19.8 A
L. R. Amperes 154 A
LRC 7.8x(Code J)
No load current 6.00 A
Rated torque 26.7 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.4  91.2  91.2

Power factor

50% 75% 100%
0.75  0.84  0.88
Frame 254/6JM
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 19.3 A
L. R. Amperes 156 A
LRC 8.1x(Code J)
No load current 6.10 A
Rated torque 26.7 ft.lb
Locked rotor torque 270 %
Breakdown torque 310 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.8  91.1  91.2

Power factor

50% 75% 100%
0.73  0.83  0.87
Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2885 rpm
Slip 3.83 %
Rated voltage 380 V
Rated current 28.9 A
L. R. Amperes 148 A
LRC 5.1x(Code E)
No load current 5.50 A
Rated torque 36.4 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.2  87.5  87.5

Power factor

50% 75% 100%
0.85  0.89  0.90
Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 400 V
Rated current 27.2 A
L. R. Amperes 155 A
LRC 5.7x(Code F)
No load current 6.00 A
Rated torque 36.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.2  89.5  89.5

Power factor

50% 75% 100%
0.82  0.88  0.89
Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 415 V
Rated current 26.2 A
L. R. Amperes 160 A
LRC 6.1x(Code G)
No load current 6.10 A
Rated torque 36.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.2  89.5  89.5

Power factor

50% 75% 100%
0.80  0.87  0.89

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Fan material Plastic
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal V'Ring
DE bearing Seal V'Ring
  • Electric Motor
  • 254JM/256JM
  • TEFC
  • 3-Phase
  • 20HP
  • 3600RPM
  • Close Coupled Pump

WEG Electric Corporation
