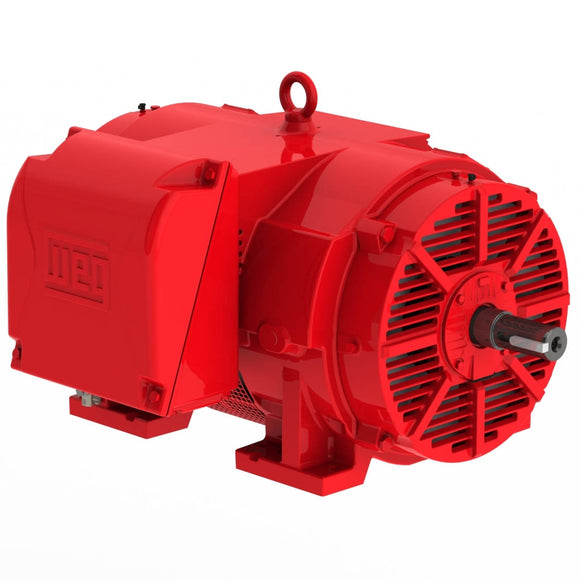

02030OP3OFP256T-W40 WEG 20HP Fire Pump Electric Motor, 3000RPM

$1,368.90 $1,690.00 Save $321.10

Shipping calculated at checkout

WEG Electric Corporation SKU: 02030OP3OFP256T-W40 Barcode: 7909712233528

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2919 rpm
Slip 2.70 %
Rated voltage 380 V
Rated current 28.1 A
L. R. Amperes 169 A
LRC 6.0x(Code F)
No load current 6.30 A
Rated torque 36.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 1.23 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 265 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  90.2  90.2

Power factor

50% 75% 100%
0.83  0.89  0.90
Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 26.7 A
L. R. Amperes 174 A
LRC 6.5x(Code G)
No load current 6.80 A
Rated torque 35.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 1.23 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 265 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  90.2  90.2

Power factor

50% 75% 100%
0.81  0.88  0.90
Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2936 rpm
Slip 2.13 %
Rated voltage 415 V
Rated current 26.0 A
L. R. Amperes 177 A
LRC 6.8x(Code H)
No load current 7.30 A
Rated torque 35.8 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 1.23 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 265 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  90.2  90.2

Power factor

50% 75% 100%
0.79  0.86  0.89

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
