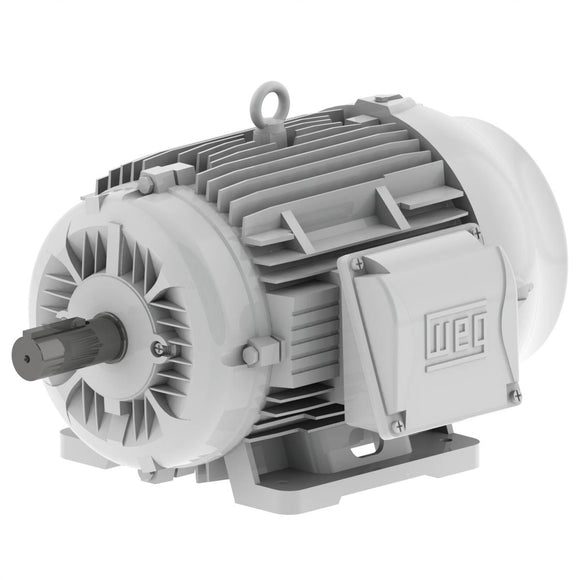

Electric Motors
| Frame | 324/6T |
|---|---|
| Output | 20 HP (15 kW) |
| Number of Poles | 8 |
| Frequency | 60 Hz |
| Rated speed | 840 rpm |
| Slip | 6.67 % |
| Rated voltage | 208-230/460 V |
| Rated current | 65.9-59.6/29.8 A |
| L. R. Amperes | 323-292/146 A |
| LRC | 4.9x(Code G) |
| No load current | 35.4-32.0/16.0 A |
| Rated torque | 125 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 0 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 11.7 sq.ft.lb |
|---|---|
| Design | D |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 531 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
85.5 |
86.5 |
85.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.54 |
0.67 |
0.74 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 9010 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
