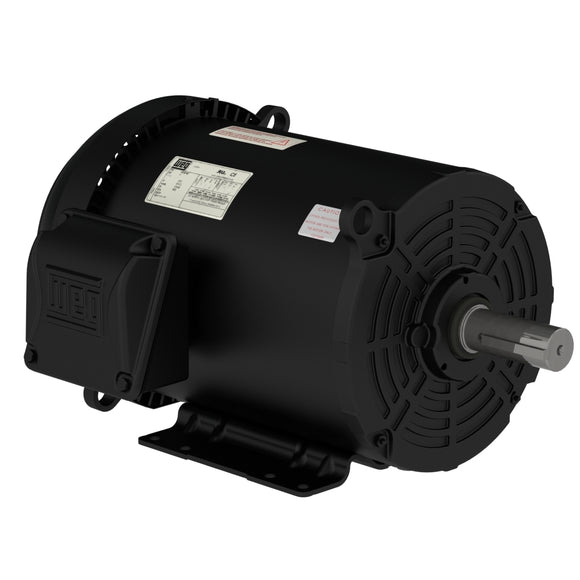

01036ET3E215T-SRT WEG 10HP General Purpose Electric Motor, 3600RPM

$1,135.64 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01036ET3E215T-SRT Barcode: 7909265642457

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, 213T/215T Frame, 208-230/460VAC 3-Phase 50/60Hz, 13207633, Foot Mounted, Rolled Steel, 1-3/8" Keyed Shaft, NEMA Premium Efficiency

Description Product Specs Manufacturer

Electric Motors

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 25.9-23.5/11.7 A
L. R. Amperes 181-165/81.9 A
No load current 0.000-8.20/4.10 A
Rated torque 14.8 ft.lb
Locked rotor torque 229 %
Breakdown torque 305 %
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 123 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.1  89.6  90.2

Power factor

50% 75% 100%
0.77  0.85  0.89

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

Bearing details

  Drive End Non Drive End
Bearing type 6208 ZZ   6206 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
192 lb  315 lb
  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 213T/215T
  • TEFC
  • 3-Phase
  • 10HP
  • 3600RPM

WEG Electric Corporation
