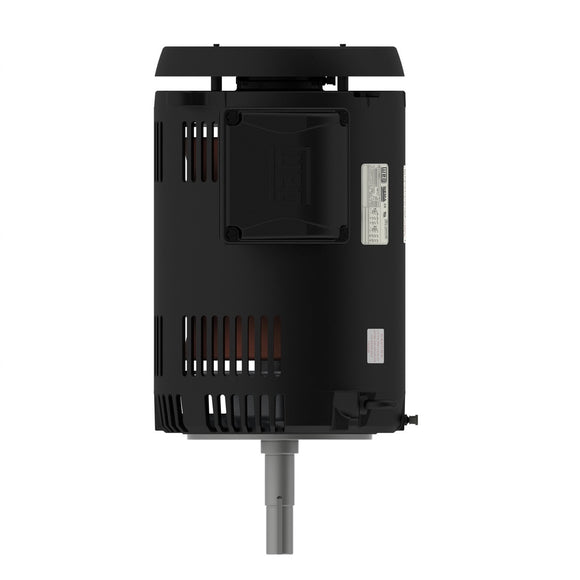

Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1770 rpm |
| Slip | 1.67 % |
| Rated voltage | 208-230/460 V |
| Rated current | 27.4-24.8/12.4 A |
| L. R. Amperes | 192-174/86.8 A |
| LRC | 7.0x(Code H) |
| No load current | 10.3-12.0/5.99 A |
| Rated torque | 29.3 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 350 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.30 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 127 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.2 |
91.0 |
91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.64 |
0.77 |
0.83 |
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1460 rpm |
| Slip | 2.67 % |
| Rated voltage | 190/380 V |
| Rated current | 29.8/14.9 A |
| L. R. Amperes | 191/95.4 A |
| LRC | 6.4x(Code G) |
| No load current | 11.8/5.89 A |
| Rated torque | 35.5 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.30 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 127 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.1 |
89.7 |
88.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.72 |
0.82 |
0.87 |
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1470 rpm |
| Slip | 2.00 % |
| Rated voltage | 220/415 V |
| Rated current | 26.4/14.0 A |
| L. R. Amperes | 201/106 A |
| LRC | 7.6x(Code J) |
| No load current | 13.1/6.93 A |
| Rated torque | 35.2 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 300 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.30 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 127 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
89.1 |
89.7 |
89.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.64 |
0.77 |
0.84 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 1.377" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | With |
| Resilient Base | Without |
Loading...
Loading...
Loading...
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6209 ZZ | 6206 ZZ |
| Sealing | Without Bearing Seal | Without Bearing Seal |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM | |
Foundation loads
| Max. traction | Max. compression |
|---|---|
| 541 lb | 668 lb |
