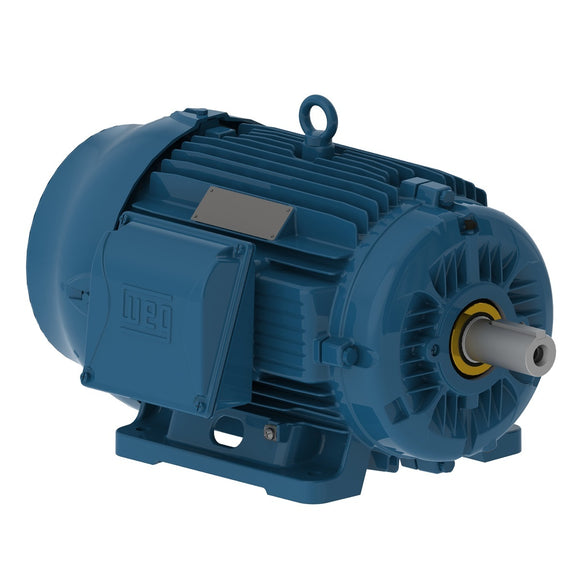

Electric Motors
| Frame | 254/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1175 rpm |
| Slip | 2.08 % |
| Rated voltage | 460 V |
| Rated current | 12.9 A |
| L. R. Amperes | 80.0 A |
| LRC | 6.2x(Code H) |
| No load current | 6.00 A |
| Rated torque | 44.7 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 270 % |
| Locked rotor time | 46s (cold) 26s (hot) |
| Moment of inertia (J) | 4.43 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 292 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.2 |
91.0 |
91.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.63 |
0.74 |
0.80 |
| Frame | 254/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 965 rpm |
| Slip | 3.50 % |
| Rated voltage | 380 V |
| Rated current | 15.4 A |
| L. R. Amperes | 73.9 A |
| LRC | 4.8x(Code E) |
| No load current | 4.90 A |
| Rated torque | 54.4 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 210 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 4.43 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 57.0 dB(A) |
| Approx. weight³ | 292 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.2 |
89.5 |
89.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.70 |
0.79 |
0.83 |
| Frame | 254/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 970 rpm |
| Slip | 3.00 % |
| Rated voltage | 400 V |
| Rated current | 14.8 A |
| L. R. Amperes | 79.9 A |
| LRC | 5.4x(Code F) |
| No load current | 6.30 A |
| Rated torque | 54.1 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 229 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 4.43 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 57.0 dB(A) |
| Approx. weight³ | 292 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.2 |
90.2 |
89.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.66 |
0.77 |
0.82 |
| Frame | 254/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 975 rpm |
| Slip | 2.50 % |
| Rated voltage | 415 V |
| Rated current | 14.4 A |
| L. R. Amperes | 83.5 A |
| LRC | 5.8x(Code G) |
| No load current | 6.60 A |
| Rated torque | 53.9 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 250 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 4.43 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 57.0 dB(A) |
| Approx. weight³ | 292 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
89.5 |
90.2 |
89.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.64 |
0.75 |
0.81 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | Stainless Steel, at Drive end and Non-drive end |
| Main terminal box hole | NPT 1 1/2" |
| Terminal Block | Without |
| Drain | Type T, Threaded |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | According to IEEE-841 (96h) |
| Joints Seal | Molykote |
| Foot flatness | (0.005 pol) 0.127 mm |
| Fan material | Conductive Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
