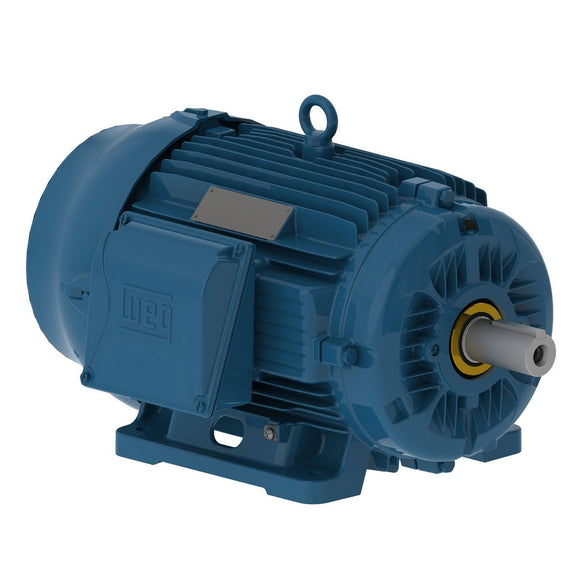

01009ST3QIE284T-W22 WEG 10HP Severe Duty Electric Motor, 900RPM

$5,283.04 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01009ST3QIE284T-W22 Barcode: 7899146770099

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 12424289, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-7/8" Keyed Shaft

Description Product Specs Manufacturer







Electric Motors







































Frame 284/6T
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 13.4 A
L. R. Amperes 75.0 A
LRC 5.6x(Code G)
No load current 6.50 A
Rated torque 59.7 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 57s (cold) 32s (hot)




































Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 366 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

89.5
90.2
90.2



Power factor















50% 75% 100%

0.61
0.72
0.78









































Frame 284/6T
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 16.1 A
L. R. Amperes 70.8 A
LRC 4.4x(Code E)
No load current 6.40 A
Rated torque 72.4 ft.lb
Locked rotor torque 150 %
Breakdown torque 190 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 366 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

89.5
88.5
87.5



Power factor















50% 75% 100%

0.68
0.77
0.81









































Frame 284/6T
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 15.3 A
L. R. Amperes 75.0 A
LRC 4.9x(Code F)
No load current 6.90 A
Rated torque 72.4 ft.lb
Locked rotor torque 170 %
Breakdown torque 210 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 366 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

88.5
88.5
88.5



Power factor















50% 75% 100%

0.64
0.74
0.80









































Frame 284/6T
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 15.1 A
L. R. Amperes 78.5 A
LRC 5.2x(Code G)
No load current 7.35 A
Rated torque 71.9 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 366 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

88.5
89.5
88.5



Power factor















50% 75% 100%

0.61
0.72
0.78






Features
















































Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector











































































Bearing details




































  Drive End Non Drive End
Bearing type 6311 C3  6211 C3
Sealing Inpro/Seal  Inpro/Seal
Lubrication interval 20000 h  20000 h
Lubricant amount 18 g  11 g
Grease Type Mobil Polyrex EM



Foundation loads















Max. traction Max. compression
538 lb  904 lb
