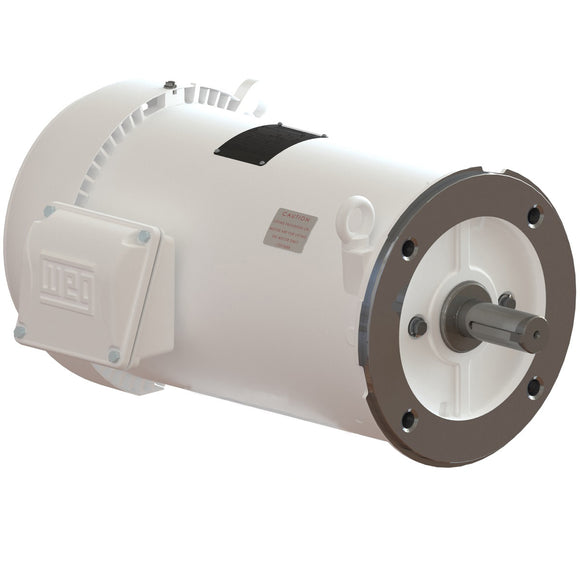

00736ET3EHWR213TC-S WEG 8HP Hydrowash Electric Motor, 3600RPM-1
00736ET3EHWR213TC-S WEG 8HP Hydrowash Electric Motor, 3600RPM-2

00736ET3EHWR213TC-S WEG 8HP Hydrowash Electric Motor, 3600RPM

$1,788.90 USD $2,010.00 USD Save $221.10 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00736ET3EHWR213TC-S Barcode: 7909492338680

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 17.3/8.67 A
L. R. Amperes 132/65.9 A
LRC 7.6x(Code H)
No load current 6.63/3.32 A
Rated torque 1.54 kgfm
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0232 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 1.0 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  89.5

Power factor

50% 75% 100%
0.76  0.85  0.89
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 190/380 V
Rated current 21.2/10.6 A
L. R. Amperes 134/66.8 A
LRC 6.3x(Code G)
No load current 6.54/3.27 A
Rated torque 1.87 kgfm
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0232 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 1.0 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.6  88.4  86.9

Power factor

50% 75% 100%
0.81  0.88  0.91
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 220/415 V
Rated current 19.1/10.1 A
L. R. Amperes 133/70.7 A
LRC 7.0x(Code H)
No load current 6.64/3.52 A
Rated torque 1.87 kgfm
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0232 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 1.0 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.6  88.8  87.7

Power factor

50% 75% 100%
0.78  0.87  0.90

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
