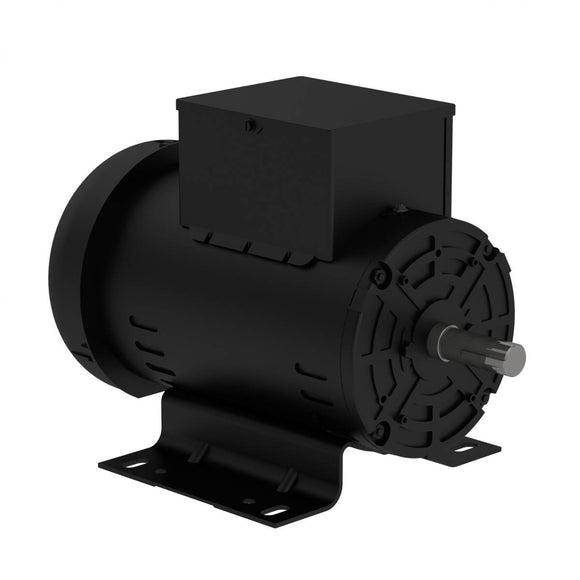

00536OS1CCDW184Y-S WEG 5HP Compressor Duty Electric Motor, 3600RPM

$468.14 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00536OS1CCDW184Y-S Barcode: 7909323758489

30 Day
Return Policy

Ships Fast
in 24 hours

IC01-ODP, W182Y/W184Y Frame, 208-230VAC Single Phase 60Hz, 14201573, Foot Mounted, Rolled Steel, 7/8" Keyed Shaft

1 In Stock!

Description Product Specs Manufacturer





Electric Motors





































Frame W182/4Y
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3465 rpm
Slip 3.75 %
Rated voltage 208-230 V
Rated current 22.4-20.7 A
L. R. Amperes 139-128 A
LRC 6.2x(Code G)
No load current 6.95-6.25 A
Rated torque 7.48 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %

































Locked rotor time 10s (cold) 6s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ CCW
Approx. weight³ 53.4 lb






(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

74.6
79.5
80.0



Power factor















50% 75% 100%

0.92
0.96
0.97






Features






































Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without








 Loading...



































Bearing details




































  Drive End Non Drive End
Bearing type 6205 ZZ   6203 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM



Foundation loads















Max. traction Max. compression
92 lb  146 lb




  • 208VAC
  • 230VAC
  • Electric Motor
  • W182Y/W184Y
  • ODP
  • Single Phase
  • 5HP
  • 3600RPM
