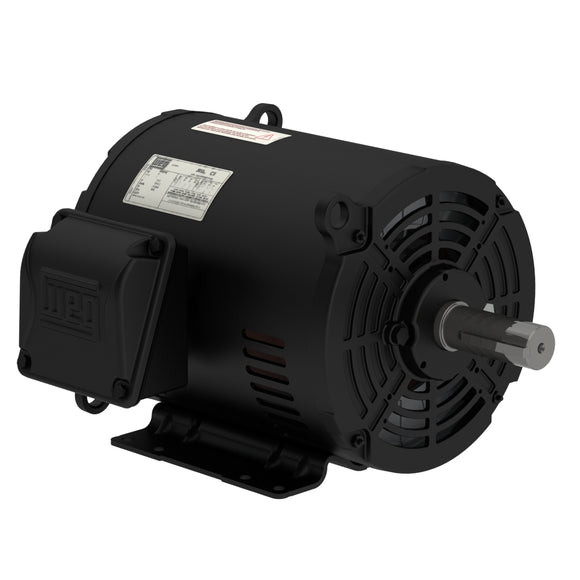

00518OT3P184T-S WEG 5HP Compressor Duty Electric Motor, 1800RPM

$510.30 $630.00 Save $119.70

Shipping calculated at checkout

WEG Electric Corporation SKU: 00518OT3P184T-S Barcode: 7909158531318

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Electric Motors

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 200 V
Rated current 14.6 A
L. R. Amperes 105 A
No load current 7.24 A
Rated torque 14.7 ft.lb
Locked rotor torque 200 %
Breakdown torque 310 %
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 81.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  88.5  89.5

Power factor

50% 75% 100%
0.63  0.76  0.82

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6206 ZZ   6205 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
255 lb  336 lb
