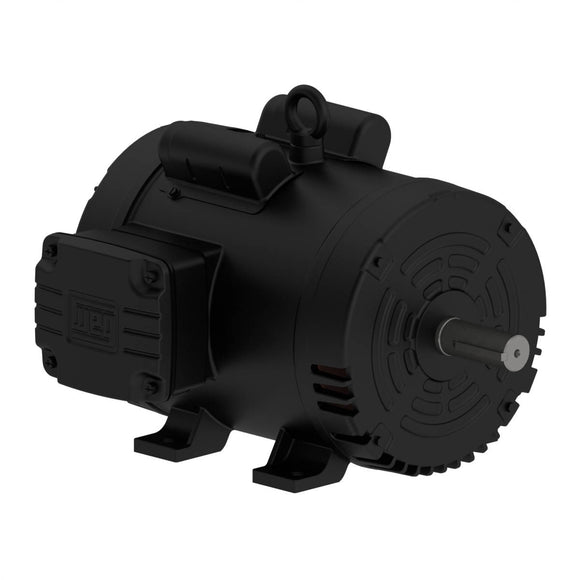

00518OS1CCD184T WEG 5HP Compressor Duty Electric Motor, 1800RPM

$606.98 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00518OS1CCD184T Barcode: 7890208570909

30 Day
Return Policy

Ships Fast
in 24 hours

IC01-ODP, IP22, 184T Frame, 208-230VAC 60Hz Single Phase, 10016488, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Description Product Specs Manufacturer

Electric Motors

Frame 184T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 208-230 V
Rated current 23.0-20.5 A
L. R. Amperes 152-135 A
LRC 6.6x(Code G)
No load current 4.31-5.00 A
Rated torque 14.8 ft.lb
Locked rotor torque 254 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.4983 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP22
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 96.2 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.0 80.0 82.5

Power factor

50% 75% 100%
0.90 0.92 0.95

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207A (ISO 12944 - C2)

Grounding Lugs Single
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6206 ZZ 6205 ZZ
Sealing Without Bearing Seal Without Bearing Seal
Lubrication interval - -
Lubricant amount - -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
188 lb 284 lb
  • 208VAC
  • 230VAC
  • Electric Motor
  • 184T
  • ODP
  • Single Phase
  • 5HP
  • 1800RPM

WEG Electric Corporation
