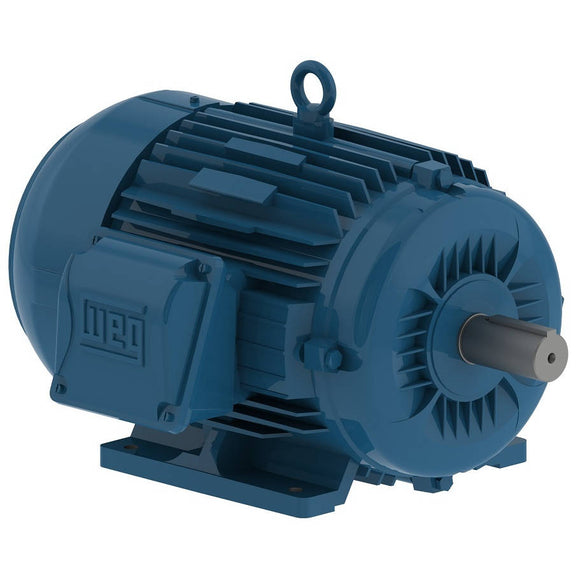

00518ET3P184T-W22 WEG 5HP Severe Duty Electric Motor, 1800RPM

$625.32 $772.00 Save $146.68

Shipping calculated at checkout

WEG Electric Corporation SKU: 00518ET3P184T-W22 Barcode: 7909018422565

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 200 V
Rated current 14.9 A
L. R. Amperes 112 A
LRC 7.5x(Code J)
No load current 6.67 A
Rated torque 15.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 98.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.62  0.74  0.80

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C3)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
Fan material Plastic
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal V'Ring
DE bearing Seal V'Ring
Cable Press Material Sem
