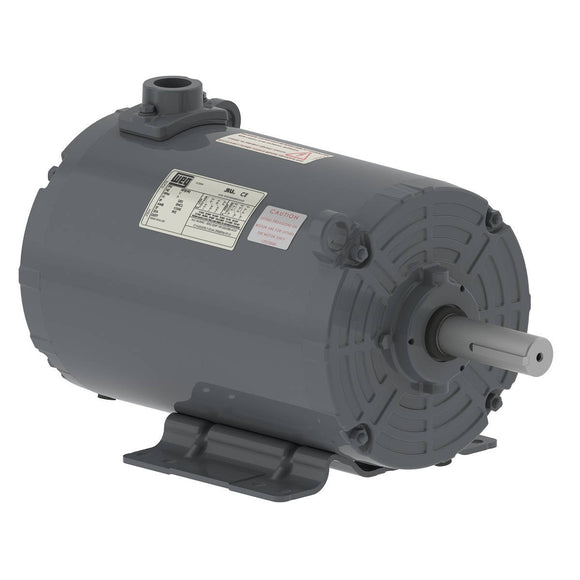

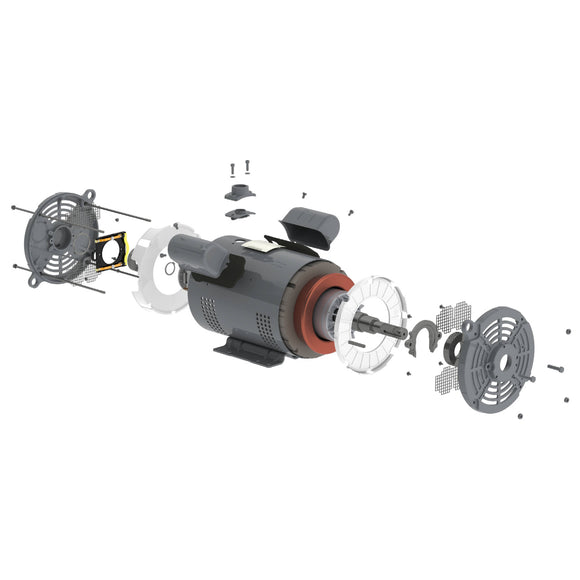

Electric Motors
| Output | 3 HP (2.2 kW) |
|---|---|
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3540 rpm |
| Slip | 1.67 % |
| Rated voltage | 208-230/460 V |
| Rated current | 9.45-8.54/4.27 A |
| L. R. Amperes | 104-93.9/47.0 A |
| LRC | 11.0x(Code N) |
| No load current | 0.000-5.70/2.85 A |
| Rated torque | 4.39 ft.lb |
| Locked rotor torque | 380 % |
| Breakdown torque | 550 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Design | B |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to 40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-3 |
| Rotation¹ | CCW |
| Approx. weight³ | 52.4 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
79.8 |
84.2 |
86.2 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.53 |
0.66 |
0.75 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 7031 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Winding thermal protection | Thermostat - 2 wires 1 per phase 155°C |
| Balancing Method | 1/2 Key |
| Resilient Base | Without |
Loading...
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6206 ZZ | 6205 ZZ |
| Sealing | V'Ring | V'Ring |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM | |
