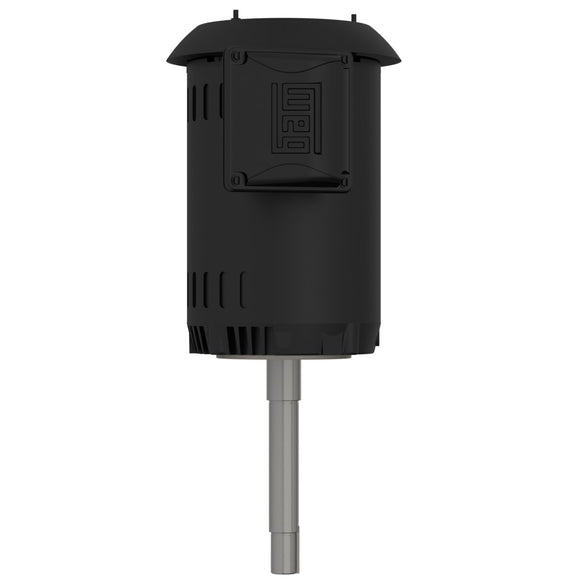

| Frame | 143/5JP |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3480 rpm |
| Slip | 3.33 % |
| Rated voltage | 208-230/460 V |
| Rated current | 7.94-7.18/3.59 A |
| L. R. Amperes | 63.5-57.4/28.7 A |
| LRC | 8.0x(Code J) |
| No load current | 2.24-2.60/1.30 A |
| Rated torque | 4.47 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 300 % |
| Locked rotor time | 16s (cold) 9s (hot) |
| Moment of inertia (J) | 0.1279 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 39.9 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.0 |
85.5 |
85.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.76 |
0.86 |
0.90 |
