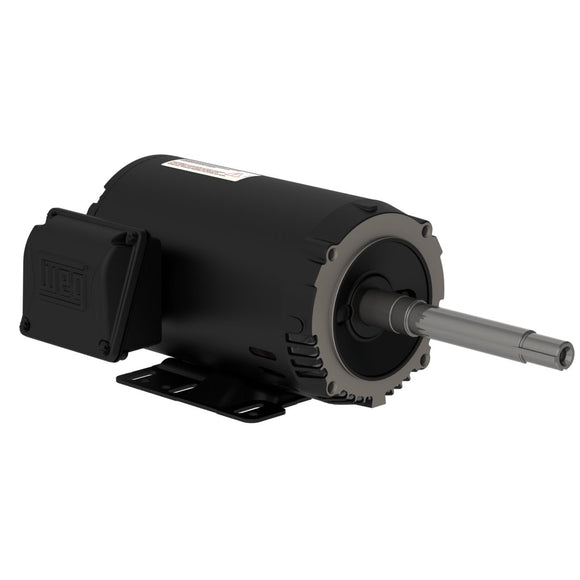

00336OT3E145JP-SG WEG 3HP JP Close-Coupled Pump Electric Motor, 3600RPM

$648.00 $800.00 Save $152

Shipping calculated at checkout

WEG Electric Corporation SKU: 00336OT3E145JP-SG Barcode: 7899058013796

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 7.94-7.18/3.59 A
L. R. Amperes 63.5-57.4/28.7 A
LRC 8.0x(Code J)
No load current 2.24-2.60/1.30 A
Rated torque 4.47 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 39.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  85.5  85.5

Power factor

50% 75% 100%
0.76  0.86  0.90
Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2825 rpm
Slip 5.83 %
Rated voltage 190/380 V
Rated current 8.78/4.39 A
L. R. Amperes 53.6/26.8 A
LRC 6.1x(Code G)
No load current 2.60/1.30 A
Rated torque 5.50 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 39.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.6  85.0  81.8

Power factor

50% 75% 100%
0.83  0.90  0.93
Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2860 rpm
Slip 4.67 %
Rated voltage 220/415 V
Rated current 7.56/4.01 A
L. R. Amperes 56.0/29.7 A
LRC 7.4x(Code J)
No load current 2.91/1.54 A
Rated torque 5.43 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 39.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.2  85.9  83.9

Power factor

50% 75% 100%
0.76  0.86  0.91

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
