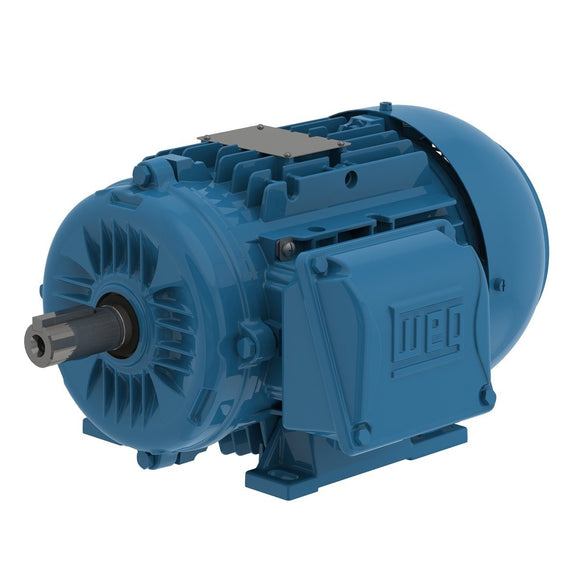

00336ET3WAL100L-W22 WEG 4HP/3kW IEC TRU-Metric Electric Motor, 3600RPM

$716.45 USD $805.00 USD Save $88.55 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00336ET3WAL100L-W22 Barcode: 7909323283042

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 100L
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 220/380 V
Rated current 10.3/5.95 A
L. R. Amperes 93.5/54.1 A
LRC 9.1
No load current 3.97/2.30 A
Rated torque 7.12 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1519 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 61.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.0  87.4  87.1

Power factor

50% 75% 100%
0.75  0.84  0.88
Frame 100L
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 230/400 V
Rated current 10.0/5.77 A
L. R. Amperes 96.3/55.4 A
LRC 9.6
No load current 4.52/2.60 A
Rated torque 7.10 ft.lb
Locked rotor torque 340 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1519 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 61.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  87.3  87.3

Power factor

50% 75% 100%
0.69  0.81  0.86
Frame 100L
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2925 rpm
Slip 2.50 %
Rated voltage 240/415 V
Rated current 9.82/5.68 A
L. R. Amperes 96.3/55.7 A
LRC 9.8
No load current 4.84/2.80 A
Rated torque 7.08 ft.lb
Locked rotor torque 370 %
Breakdown torque 360 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1519 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 61.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.0  87.2  87.4

Power factor

50% 75% 100%
0.66  0.78  0.84
Frame 100L
Output 4 HP (3 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 5.01 A
L. R. Amperes 50.6 A
LRC 10.1
No load current 2.35 A
Rated torque 5.89 ft.lb
Locked rotor torque 380 %
Breakdown torque 500 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.1519 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 61.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  86.5  88.5

Power factor

50% 75% 100%
0.68  0.79  0.85

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM25x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
