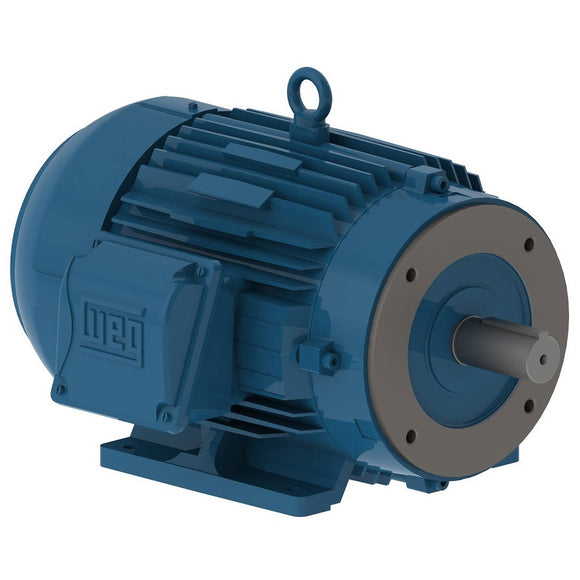

Electric Motors
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3515 rpm |
| Slip | 2.36 % |
| Rated voltage | 230/460 V |
| Rated current | 7.26/3.63 A |
| L. R. Amperes | 62.4/31.2 A |
| LRC | 8.6x(Code K) |
| No load current | 2.60/1.30 A |
| Rated torque | 4.48 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 360 % |
| Locked rotor time | 50s (cold) 28s (hot) |
| Moment of inertia (J) | 0.1889 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 66.0 dB(A) |
| Approx. weight³ | 92.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
82.5 |
86.5 |
86.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.75 |
0.84 |
0.88 |
| Frame | 182/4TC |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2930 rpm |
| Slip | 2.33 % |
| Rated voltage | 380 V |
| Rated current | 3.09 A |
| L. R. Amperes | 29.7 A |
| LRC | 9.6x(Code L) |
| No load current | 1.25 A |
| Rated torque | 3.58 ft.lb |
| Locked rotor torque | 310 % |
| Breakdown torque | 440 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 0.1889 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 92.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
81.0 |
84.5 |
85.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.68 |
0.79 |
0.86 |
| Frame | 182/4TC |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2940 rpm |
| Slip | 2.00 % |
| Rated voltage | 400 V |
| Rated current | 3.00 A |
| L. R. Amperes | 32.1 A |
| LRC | 10.7x(Code M) |
| No load current | 1.35 A |
| Rated torque | 3.57 ft.lb |
| Locked rotor torque | 360 % |
| Breakdown torque | 500 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 0.1889 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 92.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
80.6 |
84.5 |
85.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.65 |
0.77 |
0.84 |
| Frame | 182/4TC |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2945 rpm |
| Slip | 1.83 % |
| Rated voltage | 415 V |
| Rated current | 2.96 A |
| L. R. Amperes | 32.9 A |
| LRC | 11.1x(Code N) |
| No load current | 1.40 A |
| Rated torque | 3.57 ft.lb |
| Locked rotor torque | 390 % |
| Breakdown torque | 550 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 0.1889 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 92.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
79.7 |
84.1 |
85.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.63 |
0.75 |
0.82 |
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2885 rpm |
| Slip | 3.83 % |
| Rated voltage | 380 V |
| Rated current | 4.34 A |
| L. R. Amperes | 29.5 A |
| LRC | 6.8x(Code H) |
| No load current | 1.25 A |
| Rated torque | 5.46 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 290 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 0.1889 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 92.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.0 |
86.5 |
85.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.80 |
0.87 |
0.90 |
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2900 rpm |
| Slip | 3.33 % |
| Rated voltage | 400 V |
| Rated current | 4.17 A |
| L. R. Amperes | 31.7 A |
| LRC | 7.6x(Code J) |
| No load current | 1.35 A |
| Rated torque | 5.43 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 330 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 0.1889 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 92.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.0 |
86.5 |
85.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.77 |
0.86 |
0.89 |
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2910 rpm |
| Slip | 3.00 % |
| Rated voltage | 415 V |
| Rated current | 4.02 A |
| L. R. Amperes | 32.6 A |
| LRC | 8.1x(Code J) |
| No load current | 1.40 A |
| Rated torque | 5.41 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 360 % |
| Locked rotor time | 54s (cold) 30s (hot) |
| Moment of inertia (J) | 0.1889 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 92.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.0 |
86.5 |
86.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.75 |
0.84 |
0.88 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
