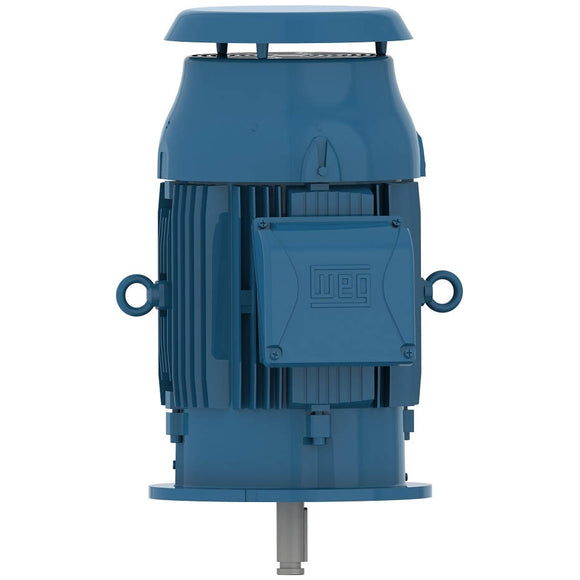

Electric Motors
| Frame | L145HP |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3460 rpm |
| Slip | 3.89 % |
| Rated voltage | 230/460 V |
| Rated current | 7.42/3.71 A |
| L. R. Amperes | 60.1/30.1 A |
| LRC | 8.1x(Code J) |
| No load current | 2.60/1.30 A |
| Rated torque | 4.55 ft.lb |
| Locked rotor torque | 330 % |
| Breakdown torque | 360 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.0605 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
85.5 |
86.5 |
86.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.70 |
0.81 |
0.86 |
| Frame | L145HP |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2890 rpm |
| Slip | 3.67 % |
| Rated voltage | 380 V |
| Rated current | 3.24 A |
| L. R. Amperes | 27.9 A |
| LRC | 8.6x(Code L) |
| No load current | 1.28 A |
| Rated torque | 3.63 ft.lb |
| Locked rotor torque | 400 % |
| Breakdown torque | 400 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.0605 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
81.9 |
84.0 |
84.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.63 |
0.76 |
0.83 |
| Frame | L145HP |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2905 rpm |
| Slip | 3.17 % |
| Rated voltage | 400 V |
| Rated current | 3.17 A |
| L. R. Amperes | 29.2 A |
| LRC | 9.2x(Code M) |
| No load current | 1.43 A |
| Rated torque | 3.62 ft.lb |
| Locked rotor torque | 459 % |
| Breakdown torque | 459 % |
| Locked rotor time | 23s (cold) 13s (hot) |
| Moment of inertia (J) | 0.0605 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
82.0 |
84.4 |
85.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.58 |
0.72 |
0.80 |
| Frame | L145HP |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2910 rpm |
| Slip | 3.00 % |
| Rated voltage | 415 V |
| Rated current | 3.15 A |
| L. R. Amperes | 29.9 A |
| LRC | 9.5x(Code M) |
| No load current | 1.55 A |
| Rated torque | 3.61 ft.lb |
| Locked rotor torque | 490 % |
| Breakdown torque | 509 % |
| Locked rotor time | 23s (cold) 13s (hot) |
| Moment of inertia (J) | 0.0605 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
82.2 |
84.8 |
85.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.55 |
0.69 |
0.77 |
| Frame | L145HP |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2820 rpm |
| Slip | 6.00 % |
| Rated voltage | 380 V |
| Rated current | 4.44 A |
| L. R. Amperes | 27.1 A |
| LRC | 6.1x(Code G) |
| No load current | 1.28 A |
| Rated torque | 5.59 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 260 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.0605 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.0 |
85.0 |
84.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.76 |
0.85 |
0.89 |
| Frame | L145HP |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2840 rpm |
| Slip | 5.33 % |
| Rated voltage | 400 V |
| Rated current | 4.26 A |
| L. R. Amperes | 28.5 A |
| LRC | 6.7x(Code H) |
| No load current | 1.43 A |
| Rated torque | 5.55 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 300 % |
| Locked rotor time | 23s (cold) 13s (hot) |
| Moment of inertia (J) | 0.0605 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.5 |
85.5 |
85.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.72 |
0.82 |
0.87 |
| Frame | L145HP |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2850 rpm |
| Slip | 5.00 % |
| Rated voltage | 415 V |
| Rated current | 4.13 A |
| L. R. Amperes | 29.3 A |
| LRC | 7.1x(Code H) |
| No load current | 1.55 A |
| Rated torque | 5.53 ft.lb |
| Locked rotor torque | 320 % |
| Breakdown torque | 330 % |
| Locked rotor time | 23s (cold) 13s (hot) |
| Moment of inertia (J) | 0.0605 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
85.0 |
86.0 |
86.2 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.69 |
0.80 |
0.86 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Circlip Ring |
| Drip Cover | With |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
