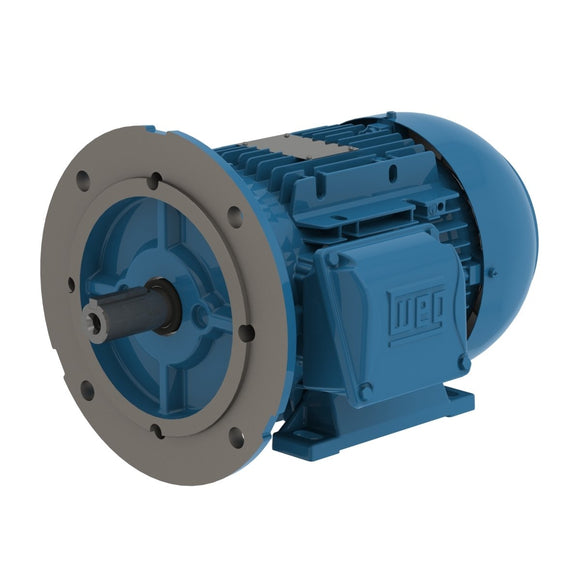

00318ET3WAL100LFF-W22 WEG 4HP/3kW IEC TRU-Metric Electric Motor, 1800RPM

$660.38 USD $742.00 USD Save $81.62 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00318ET3WAL100LFF-W2 Barcode: 7909323420669

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame L100L
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1430 rpm
Slip 4.67 %
Rated voltage 220/380 V
Rated current 10.8/6.26 A
L. R. Amperes 84.3/48.8 A
LRC 7.8
No load current 5.53/3.20 A
Rated torque 14.5 ft.lb
Locked rotor torque 310 %
Breakdown torque 330 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.2848 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 83.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.7  88.0  87.7

Power factor

50% 75% 100%
0.65  0.77  0.83
Frame L100L
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 230/400 V
Rated current 10.7/6.15 A
L. R. Amperes 83.4/48.0 A
LRC 7.8
No load current 6.09/3.50 A
Rated torque 14.4 ft.lb
Locked rotor torque 350 %
Breakdown torque 370 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2848 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 83.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.0  88.0  88.0

Power factor

50% 75% 100%
0.60  0.73  0.80
Frame L100L
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 240/415 V
Rated current 10.5/6.07 A
L. R. Amperes 81.9/47.3 A
LRC 7.8
No load current 6.57/3.80 A
Rated torque 14.3 ft.lb
Locked rotor torque 380 %
Breakdown torque 400 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2848 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 83.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.3  87.7  88.1

Power factor

50% 75% 100%
0.56  0.70  0.78
Frame L100L
Output 4 HP (3 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 460 V
Rated current 5.33 A
L. R. Amperes 45.8 A
LRC 8.6
No load current 3.20 A
Rated torque 11.9 ft.lb
Locked rotor torque 459 %
Breakdown torque 480 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2848 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 83.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  89.5

Power factor

50% 75% 100%
0.59  0.71  0.79

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM25x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
