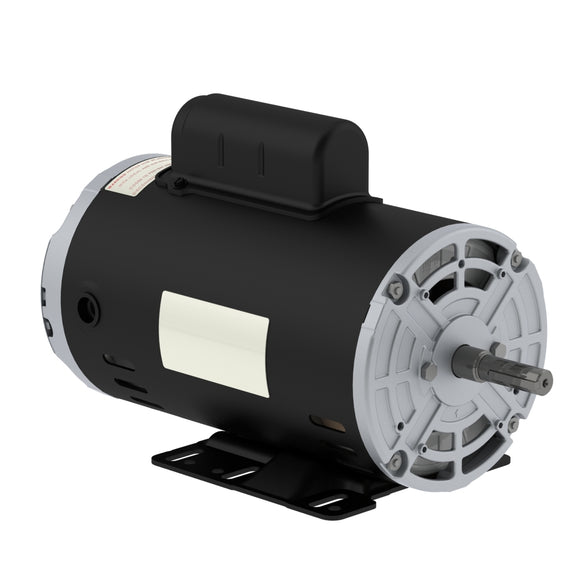

00236OS1BCD56-S WEG 2HP Compressor Duty Electric Motor, 3600RPM

$331.08 USD $372.00 USD Save $40.92 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00236OS1BCD56-S Barcode: 7909322209944

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Electric Motors

Frame 56H
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 115/208-230 V
Rated current 17.8/9.50-8.90 A
L. R. Amperes 121/64.6-60.5 A
LRC 6.8x(Code H)
No load current 7.00/3.02-3.50 A
Rated torque 2.98 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0551 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.00 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 31.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
69.8  75.8  77.5

Power factor

50% 75% 100%
0.86  0.92  0.94

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6204 ZZ   6202 ZZ
Sealing Sem vedação  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
51 lb  83 lb
