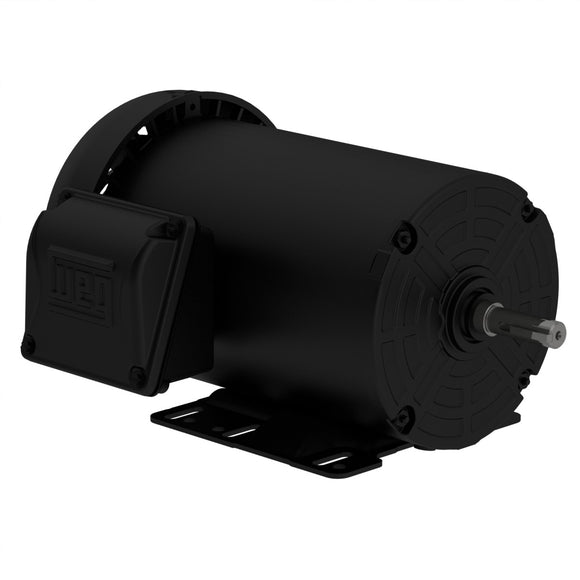

Electric Motors
| Frame | 56H |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 230/460 V |
| Rated current | 5.44/2.72 A |
| L. R. Amperes | 44.6/22.3 A |
| LRC | 8.2x(Code K) |
| No load current | 2.80/1.40 A |
| Rated torque | 6.02 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 300 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 0.1296 sq.ft.lb |
| Design | B |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 42.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
85.5 |
87.5 |
86.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.60 |
0.73 |
0.80 |
| Frame | 56H |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1415 rpm |
| Slip | 5.67 % |
| Rated voltage | 190-220/380 V |
| Rated current | 6.50-5.61/3.25 A |
| L. R. Amperes | 39.0-33.7/19.5 A |
| LRC | 6.0x(Code H) |
| No load current | 2.75-2.37/1.37 A |
| Rated torque | 7.42 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 240 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.1296 sq.ft.lb |
| Design | B |
|---|---|
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 42.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
85.4 |
84.9 |
82.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.68 |
0.80 |
0.85 |
| Frame | 56H |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1435 rpm |
| Slip | 4.33 % |
| Rated voltage | 415 V |
| Rated current | 3.07 A |
| L. R. Amperes | 21.8 A |
| LRC | 7.1x(Code J) |
| No load current | 1.64 A |
| Rated torque | 7.32 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 300 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.1296 sq.ft.lb |
| Design | B |
|---|---|
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 42.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.2 |
85.1 |
84.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.60 |
0.73 |
0.81 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 0.881" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
| Fan material | Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | Without Bearing Seal |
| DE bearing Seal | V'Ring |
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6204 ZZ | 6202 ZZ |
| DE bearing Seal | V'Ring | Without Bearing Seal |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM | |
Foundation loads
| Max. traction | Max. compression |
|---|---|
| 194 lb | 237 lb |
