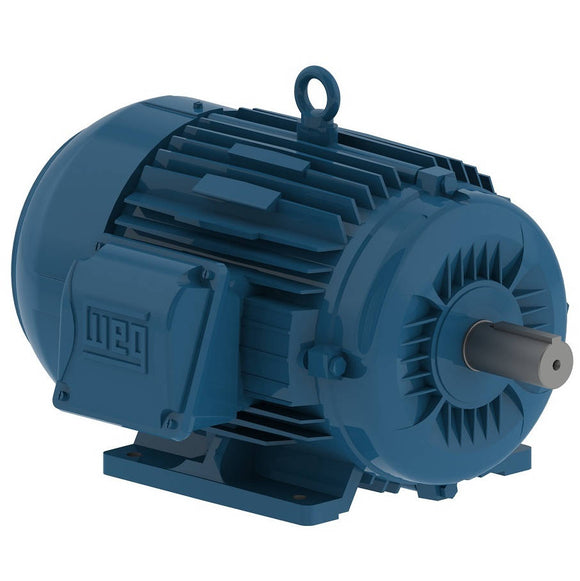

00218ET3E145T-W22 WEG 2HP Severe Duty Electric Motor, 1800RPM

$495.72 $612.00 Save $116.28

Shipping calculated at checkout

WEG Electric Corporation SKU: 00218ET3E145T-W22 Barcode: 7891327095328

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Electric Motors

Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 5.85-5.52/2.76 A
L. R. Amperes 46.8-44.2/22.1 A
No load current 2.81-3.26/1.63 A
Rated torque 5.90 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  86.5

Power factor

50% 75% 100%
0.57  0.70  0.79
Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 2.54 A
L. R. Amperes 19.3 A
No load current 1.48 A
Rated torque 5.32 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.2  84.5

Power factor

50% 75% 100%
0.55  0.69  0.78
Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 2.51 A
L. R. Amperes 20.6 A
No load current 1.63 A
Rated torque 5.30 ft.lb
Locked rotor torque 300 %
Breakdown torque 360 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  83.5  84.5

Power factor

50% 75% 100%
0.50  0.65  0.75
Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 2.56 A
L. R. Amperes 21.5 A
No load current 1.75 A
Rated torque 5.30 ft.lb
Locked rotor torque 330 %
Breakdown torque 390 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.4  83.1  84.1

Power factor

50% 75% 100%
0.47  0.61  0.71
Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1435 rpm
Slip 4.33 %
Rated voltage 380 V
Rated current 3.25 A
L. R. Amperes 19.5 A
No load current 1.48 A
Rated torque 7.22 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  84.0  82.5

Power factor

50% 75% 100%
0.69  0.80  0.85
Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 3.11 A
L. R. Amperes 20.5 A
No load current 1.63 A
Rated torque 7.20 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.0  84.0

Power factor

50% 75% 100%
0.65  0.77  0.83
Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 3.07 A
L. R. Amperes 21.5 A
No load current 1.75 A
Rated torque 7.15 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.0  84.0

Power factor

50% 75% 100%
0.62  0.74  0.81

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)


Grounding Lugs Single
