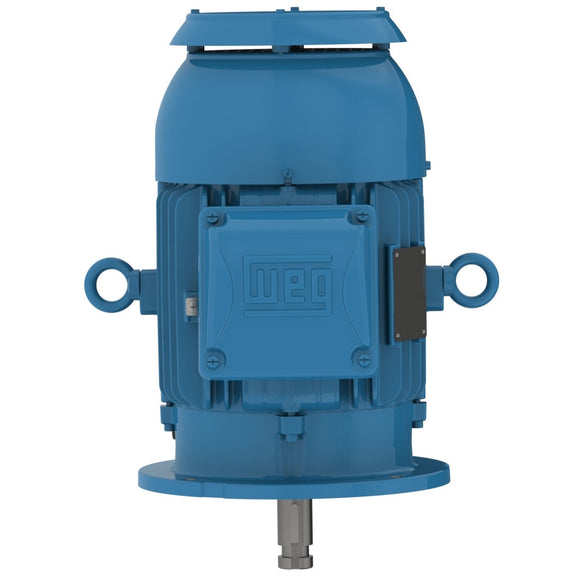

00218ET3E145HP-W22 WEG 2HP P-Base Pump Electric Motor, 1800RPM

$591.30 $730.00 Save $138.70

Shipping calculated at checkout

WEG Electric Corporation SKU: 00218ET3E145HP-W22 Barcode: 7909265381875

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 145HP
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 230/460 V
Rated current 5.52/2.76 A
L. R. Amperes 45.8/22.9 A
LRC 8.3x(Code L)
No load current 3.26/1.63 A
Rated torque 6.00 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 57.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  86.5

Power factor

50% 75% 100%
0.57  0.70  0.79
Frame 145HP
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 2.57 A
L. R. Amperes 21.1 A
LRC 8.2x(Code L)
No load current 1.61 A
Rated torque 5.40 ft.lb
Locked rotor torque 290 %
Breakdown torque 330 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 57.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.2  84.5

Power factor

50% 75% 100%
0.55  0.69  0.77
Frame 145HP
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 2.57 A
L. R. Amperes 22.4 A
LRC 8.7x(Code M)
No load current 1.80 A
Rated torque 5.38 ft.lb
Locked rotor torque 320 %
Breakdown torque 380 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 57.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  83.5  84.5

Power factor

50% 75% 100%
0.50  0.64  0.73
Frame 145HP
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 2.56 A
L. R. Amperes 21.5 A
LRC 8.4x(Code M)
No load current 1.97 A
Rated torque 5.38 ft.lb
Locked rotor torque 350 %
Breakdown torque 409 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 57.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.4  83.1  84.1

Power factor

50% 75% 100%
0.47  0.61  0.71
Frame 145HP
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1435 rpm
Slip 4.33 %
Rated voltage 380 V
Rated current 3.33 A
L. R. Amperes 20.0 A
LRC 6.0x(Code H)
No load current 1.61 A
Rated torque 7.32 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 57.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  84.0  82.5

Power factor

50% 75% 100%
0.66  0.78  0.83
Frame 145HP
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 3.22 A
L. R. Amperes 21.3 A
LRC 6.6x(Code J)
No load current 1.80 A
Rated torque 7.29 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 57.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.0  84.0

Power factor

50% 75% 100%
0.62  0.74  0.80
Frame 145HP
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 3.14 A
L. R. Amperes 22.9 A
LRC 7.3x(Code K)
No load current 1.97 A
Rated torque 7.24 ft.lb
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
