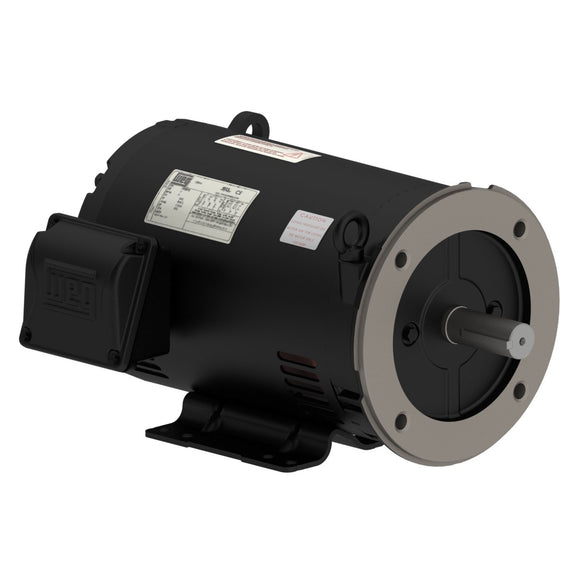

00212OT3H184TC-S WEG 2HP General Purpose Electric Motor, 1200RPM

$514.35 $635.00 Save $120.65

Shipping calculated at checkout

WEG Electric Corporation SKU: 00212OT3H184TC-S Barcode: 7909158529025

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 575 V
Rated current 2.36 A
L. R. Amperes 15.6 A
LRC 6.6x(Code J)
No load current 1.37 A
Rated torque 8.89 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 66.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  87.5

Power factor

50% 75% 100%
0.53  0.66  0.73

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
