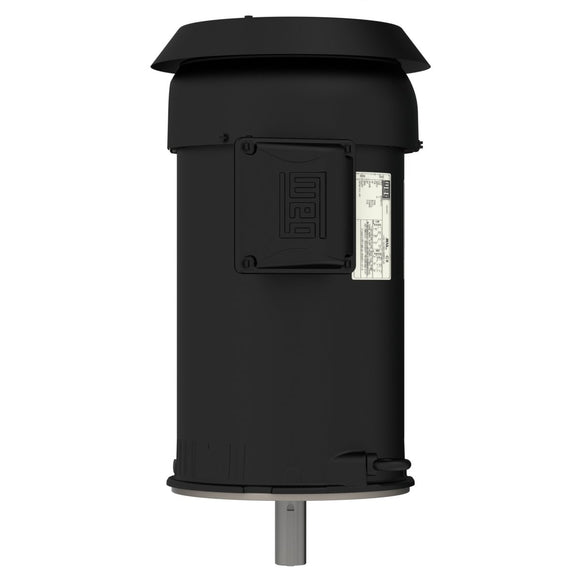

00212ET3ER184TC-S WEG 2HP General Purpose Electric Motor, 1200RPM

$605.07 $747.00 Save $141.93

Shipping calculated at checkout

WEG Electric Corporation SKU: 00212ET3ER184TC-S Barcode: 7909158998845

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 6.63-6.00/3.00 A
L. R. Amperes 49.8-45.0/22.5 A
LRC 7.5x(Code K)
No load current 3.23-3.74/1.87 A
Rated torque 8.86 ft.lb
Locked rotor torque 260 %
Breakdown torque 370 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 88.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  88.5

Power factor

50% 75% 100%
0.50  0.62  0.71
Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 190/380 V
Rated current 7.00/3.50 A
L. R. Amperes 42.7/21.3 A
LRC 6.1x(Code H)
No load current 3.69/1.85 A
Rated torque 10.8 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 88.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.3  86.4  85.7

Power factor

50% 75% 100%
0.57  0.69  0.76
Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 220/415 V
Rated current 6.43/3.41 A
L. R. Amperes 45.7/24.2 A
LRC 7.1x(Code K)
No load current 4.05/2.15 A
Rated torque 10.7 ft.lb
Locked rotor torque 280 %
Breakdown torque 350 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 88.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.7  86.0  86.2

Power factor

50% 75% 100%
0.50  0.63  0.71

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
