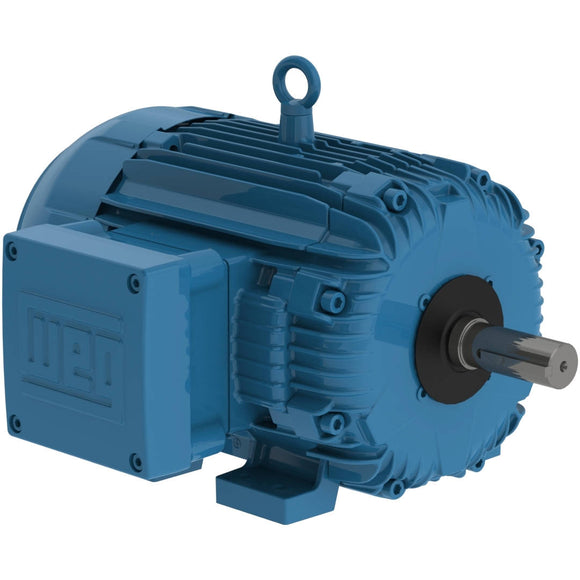

Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 8 |
| Frequency | 60 Hz |
| Rated speed | 860 rpm |
| Slip | 4.44 % |
| Rated voltage | 230/460 V |
| Rated current | 5.68/2.84 A |
| L. R. Amperes | 35.2/17.6 A |
| LRC | 6.2x(Code L) |
| No load current | 3.80/1.90 A |
| Rated torque | 9.16 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 260 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 0.5223 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 50.0 dB(A) |
| Approx. weight³ | 134 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
77.0 |
78.5 |
78.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.42 |
0.54 |
0.62 |
| Frame | 182/4T |
|---|---|
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 700 rpm |
| Slip | 6.67 % |
| Rated voltage | 380 V |
| Rated current | 3.04 A |
| L. R. Amperes | 17.6 A |
| LRC | 5.8x(Code J) |
| No load current | 1.79 A |
| Rated torque | 11.3 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 190 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 0.5223 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 46.0 dB(A) |
| Approx. weight³ | 134 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
80.0 |
80.0 |
78.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.51 |
0.62 |
0.70 |
| Frame | 182/4T |
|---|---|
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 710 rpm |
| Slip | 5.33 % |
| Rated voltage | 400 V |
| Rated current | 3.12 A |
| L. R. Amperes | 18.7 A |
| LRC | 6.0x(Code K) |
| No load current | 1.92 A |
| Rated torque | 11.1 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 210 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 0.5223 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 46.0 dB(A) |
| Approx. weight³ | 134 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
78.5 |
78.5 |
77.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.47 |
0.58 |
0.66 |
| Frame | 182/4T |
|---|---|
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 715 rpm |
| Slip | 4.67 % |
| Rated voltage | 415 V |
| Rated current | 3.11 A |
| L. R. Amperes | 19.3 A |
| LRC | 6.2x(Code L) |
| No load current | 2.04 A |
| Rated torque | 11.0 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 240 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 0.5223 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 46.0 dB(A) |
| Approx. weight³ | 134 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
77.0 |
78.0 |
77.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.44 |
0.55 |
0.64 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202P (ISO 12944 - C4) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Winding thermal protection | Thermostat - 2 wires 1 per phase 155°C |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
