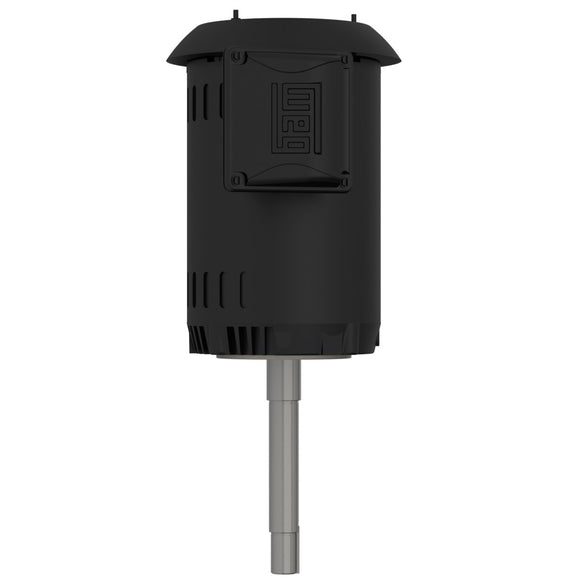

| Frame | 143/5JP |
|---|---|
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 208-230/460 V |
| Rated current | 4.09-3.70/1.85 A |
| L. R. Amperes | 35.2-31.8/15.9 A |
| LRC | 8.6x(Code K) |
| No load current | 1.40-1.62/0.809 A |
| Rated torque | 2.21 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 330 % |
| Locked rotor time | 34s (cold) 19s (hot) |
| Moment of inertia (J) | 0.0835 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 29.3 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
81.5 |
84.0 |
84.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.73 |
0.83 |
0.89 |
