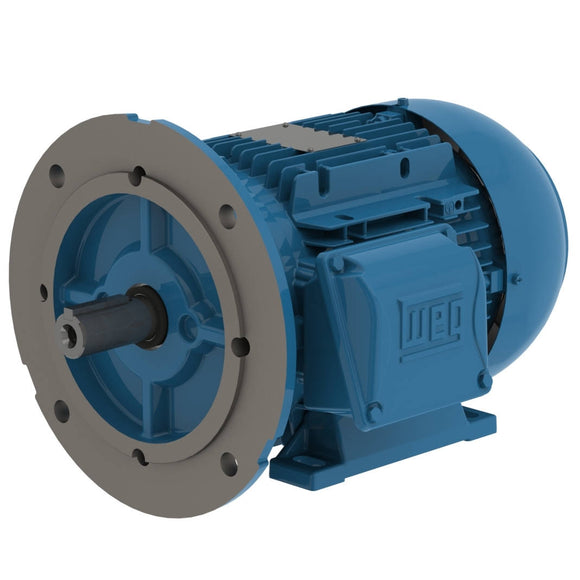

00156ET3WAL90SFF-W22 WEG 2HP Aluminum Frame Electric Motor, 3600RPM

$501.07 USD $563.00 USD Save $61.93 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00156ET3WAL90SFF-W22 Barcode: 7909323282892

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3505 rpm
Slip 2.64 %
Rated voltage 460 V
Rated current 2.75 A
L. R. Amperes 25.9 A
LRC 9.4
No load current 1.50 A
Rated torque 3.00 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.0  84.0  85.5

Power factor

50% 75% 100%
0.61  0.73  0.80
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 220/380 V
Rated current 5.56/3.22 A
L. R. Amperes 42.3/24.5 A
LRC 7.6
No load current 2.47/1.43 A
Rated torque 3.66 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  83.5  84.2

Power factor

50% 75% 100%
0.67  0.78  0.84
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2885 rpm
Slip 3.83 %
Rated voltage 400 V
Rated current 3.17 A
L. R. Amperes 24.4 A
LRC 7.7
No load current 1.60 A
Rated torque 3.64 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  83.5  84.2

Power factor

50% 75% 100%
0.62  0.74  0.81
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 240/415 V
Rated current 5.50/3.18 A
L. R. Amperes 44.0/25.4 A
LRC 8.0
No load current 3.11/1.80 A
Rated torque 3.63 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.5  83.5  84.2

Power factor

50% 75% 100%
0.57  0.70  0.78

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM25x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Connection Cables Quantity 6
