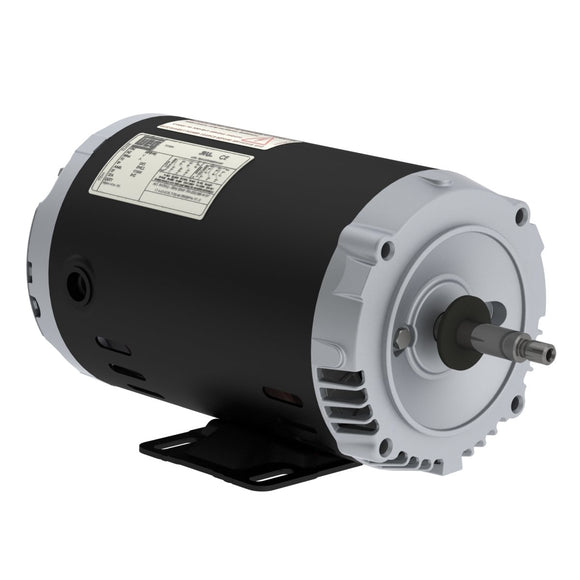

00136OS3EJP56J-S WEG 1HP Jet Pump Electric Motor, 3600RPM

$254.54 USD $286.00 USD Save $31.46 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00136OS3EJP56J-S Barcode: 7909158494644

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56J
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3470 rpm
Slip 3.61 %
Rated voltage 208-230/460 V
Rated current 3.40-3.08/1.54 A
L. R. Amperes 21.8-19.7/9.86 A
LRC 6.4x(Code J)
No load current 1.64-1.90/0.950 A
Rated torque 1.49 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.0517 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.40 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 62.0 dB(A)
Approx. weight³ 22.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
70.0  74.0  75.5

Power factor

50% 75% 100%
0.60  0.73  0.81
Frame 56J
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2800 rpm
Slip 6.67 %
Rated voltage 190/380 V
Rated current 3.52/1.76 A
L. R. Amperes 16.2/8.10 A
LRC 4.6x(Code F)
No load current 1.80/0.900 A
Rated torque 1.85 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0517 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.40 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 60.0 dB(A)
Approx. weight³ 22.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.6  74.5  72.6

Power factor

50% 75% 100%
0.70  0.82  0.89
Frame 56J
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2840 rpm
Slip 5.33 %
Rated voltage 220/415 V
Rated current 3.28/1.74 A
L. R. Amperes 17.1/9.05 A
LRC 5.2x(Code H)
No load current 2.26/1.20 A
Rated torque 1.82 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0517 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.40 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 60.0 dB(A)
Approx. weight³ 22.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
67.8  72.5  73.1

Power factor

50% 75% 100%
0.58  0.72  0.82

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 304 Stainless Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Without Key
Drip Cover Without
Resilient Base Without
