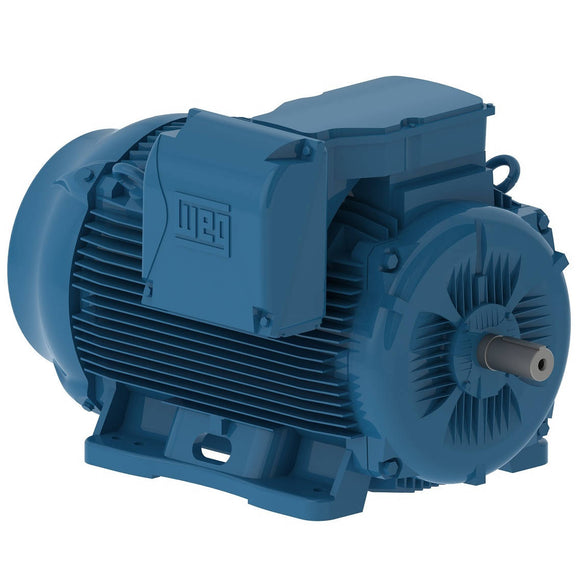

20036ET3G504S-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

$20,970.18 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 20036ET3G504S-W22 Barcode: 7909322448596

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 504TS/505TS Frame, 460VAC 60Hz 3 Phase, 13572086, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Description Product Specs Manufacturer

Electric Motors

Frame 504/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3575 rpm
Slip 0.69 %
Rated voltage 460 V
Rated current 222 A
L. R. Amperes 1510 A
LRC 6.8x(Code G)
No load current 50.0 A
Rated torque 294 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  95.0  95.4

Power factor

50% 75% 100%
0.81  0.87  0.89
Frame 504/5TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2979 rpm
Slip 0.70 %
Rated voltage 380 V
Rated current 195 A
L. R. Amperes 1424 A
LRC 7.3x(Code G)
No load current 50.0 A
Rated torque 264 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 90s (cold) 50s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  95.2  95.2

Power factor

50% 75% 100%
0.82  0.88  0.90
Frame 504/5TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2981 rpm
Slip 0.63 %
Rated voltage 400 V
Rated current 187 A
L. R. Amperes 1515 A
LRC 8.1x(Code H)
No load current 55.0 A
Rated torque 264 ft.lb
Locked rotor torque 229 %
Breakdown torque 330 %
Locked rotor time 81s (cold) 45s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.0  95.2  95.3

Power factor

50% 75% 100%
0.79  0.86  0.89
Frame 504/5TS
Output 150 HP (110 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2983 rpm
Slip 0.57 %
Rated voltage 415 V
Rated current 182 A
L. R. Amperes 1565 A
LRC 8.6x(Code J)
No load current 60.0 A
Rated torque 264 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 77s (cold) 43s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.9  95.2  95.3

Power factor

50% 75% 100%
0.77  0.85  0.88
Frame 504/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 267 A
L. R. Amperes 1442 A
LRC 5.4x(Code E)
No load current 50.0 A
Rated torque 354 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.0

Power factor

50% 75% 100%
0.85  0.89  0.90
Frame 504/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 256 A
L. R. Amperes 1536 A
LRC 6.0x(Code F)
No load current 55.0 A
Rated torque 354 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.0

Power factor

50% 75% 100%
0.82  0.88  0.89
Frame 504/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 415 V
Rated current 249 A
L. R. Amperes 1619 A
LRC 6.5x(Code G)
No load current 60.0 A
Rated torque 353 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  95.4

Power factor

50% 75% 100%
0.79  0.86  0.88

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Fan material Plastic
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal WSeal
DE bearing Seal WSeal
Cable Press Material Sem
  • 460VAC
  • Electric Motor
  • 504TS/505TS
  • TEFC
  • 3-Phase
  • 200HP
  • 3600RPM
  • Severe Duty

WEG Electric Corporation
