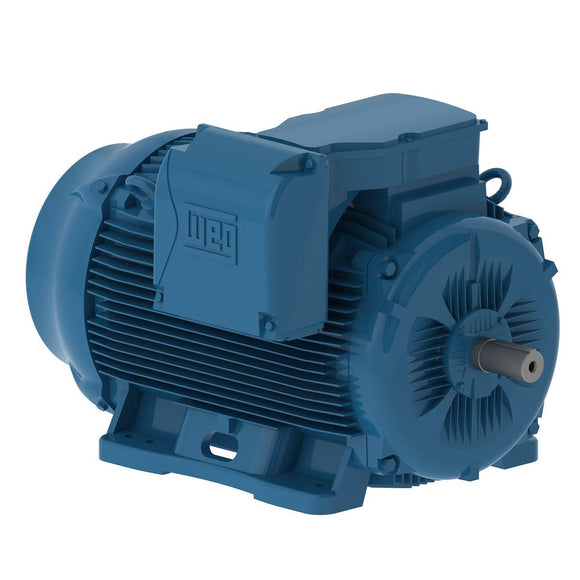

15012ET3GRB447T-W22 WEG 150HP Crusher Duty Electric Motor, 1200RPM

$18,368.71 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 15012ET3GRB447T-W22 Barcode: 7891327200708

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 11457762, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer

Electric Motors

Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1187 rpm
Slip 1.08 %
Rated voltage 460 V
Rated current 176 A
L. R. Amperes 1091 A
LRC 6.2x(Code G)
No load current 70.0 A
Rated torque 664 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2285 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.8

Power factor

50% 75% 100%
0.67  0.78  0.82
Frame 445/7T
Output 125 HP
Number of Poles 6
Frequency 50 Hz
Rated speed 987 rpm
Slip 1.30 %
Rated voltage 380 V
Rated current 174 A
L. R. Amperes 1044 A
LRC 6.0x(Code F)
No load current 70.0 A
Rated torque 665 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2285 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.8  95.1  94.9

Power factor

50% 75% 100%
0.67  0.79  0.83
Frame 445/7T
Output 125 HP
Number of Poles 6
Frequency 50 Hz
Rated speed 989 rpm
Slip 1.10 %
Rated voltage 400 V
Rated current 167 A
L. R. Amperes 1086 A
LRC 6.5x(Code G)
No load current 74.0 A
Rated torque 664 ft.lb
Locked rotor torque 270 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2285 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.1  95.1

Power factor

50% 75% 100%
0.64  0.76  0.82
Frame 445/7T
Output 125 HP
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 165 A
L. R. Amperes 1155 A
LRC 7.0x(Code H)
No load current 78.0 A
Rated torque 663 ft.lb
Locked rotor torque 290 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2285 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.1  95.1

Power factor

50% 75% 100%
0.60  0.74  0.80
Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 982 rpm
Slip 1.80 %
Rated voltage 380 V
Rated current 211 A
L. R. Amperes 1055 A
LRC 5.0x(Code E)
No load current 70.0 A
Rated torque 802 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2285 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  94.5

Power factor

50% 75% 100%
0.73  0.82  0.84
Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 201 A
L. R. Amperes 1106 A
LRC 5.5x(Code F)
No load current 74.0 A
Rated torque 800 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2285 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.0

Power factor

50% 75% 100%
0.70  0.80  0.83
Frame 445/7T
Output 150 HP (110 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 986 rpm
Slip 1.40 %
Rated voltage 415 V
Rated current 196 A
L. R. Amperes 1176 A
LRC 6.0x(Code G)
No load current 78.0 A
Rated torque 799 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 134 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 2285 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.0  95.0

Power factor

50% 75% 100%
0.67  0.78  0.82

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
