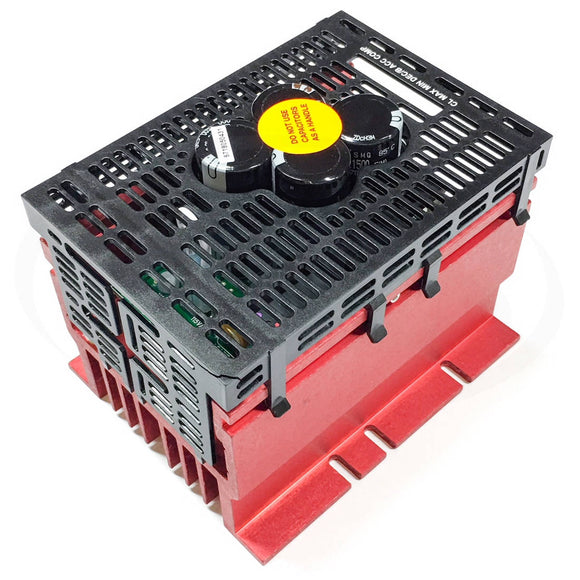

KB Electronics 9496 KBVF-26D Hybrid AC Drive

KBVF-26D Hybrid AC Drive, A Digital Drive with Analog Interface

• IP 20 Enclosure



Primary Features:

• 1 ½ Horsepower

• 1Ø Input 115/230 VAC, 50/60 Hz

• 3Ø Output 230 VAC

• 200% Starting Torque

• Power and Status Indicators

Additional Features:

• Sensorless Flux Vector Control

• Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation

• Electronic Inrush Current Limit (EICL™) Protection

• Eliminates harmful inrush AC line current during power up.

• Ride-Through

• Holding Torque at Zero Speed

• Regeneration Protection

• Undervoltage and Overvoltage Protection

• Short Circuit Protection

• Basic, Programmable, Trimpot Adjustments

Drive Options:

• Drive-Link™ Programming Kit

• SIVFR Signal Isolator and Run Fault Relay*

• DIVF Modbus Serial Communication Module

• Class “A” or “B” (CE) RFI Filter

• DBVF Dynamic Brake Module

• Multi-Speed Board

• KBRK Remote Digital Keypad

• IOVF Input/Output Multi-Function Module

Dimensions approx. 4.7" x 5.7" X 4.5"

Agency approvals: UL, CE, CSA, C-Tick, RoHS available
