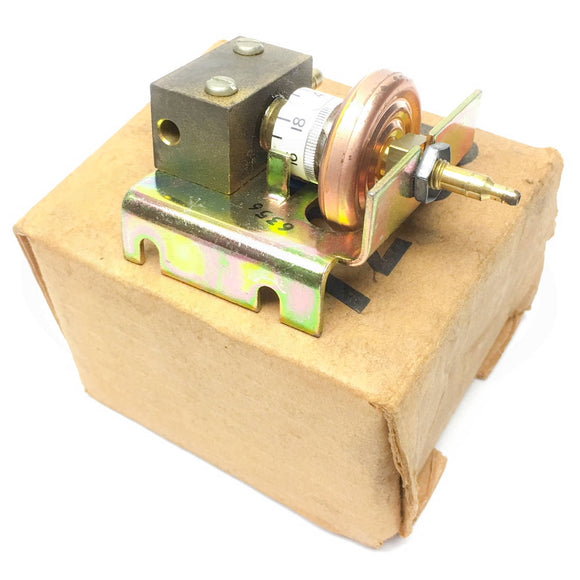

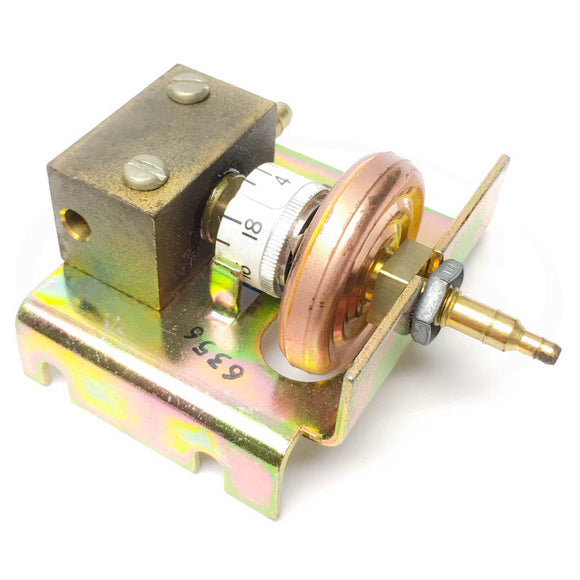

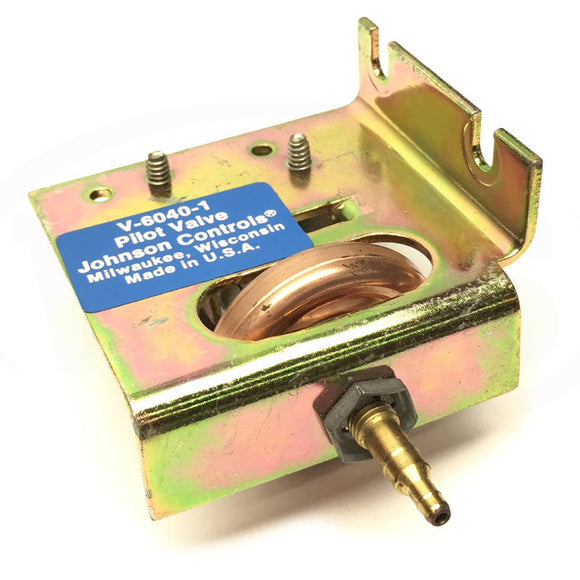

V-6040-1 Johnson Controls Pilot Valve, N.O.

Specifications
Control Pressure: 1 to 20 PSIG (7 to 138kPa)
Set Point: Adjustable 3 to 18 PSIG (21 to 124 kPa)
Accuracy: ± 1 PSI (±7kPa)
Maximum System (in) Pressure: 10 Inches WG
Ambient Temperature Limits: -10 to 140F (30 to 60C)
Connections (In and Out): Barbed Fitting for ¼” OD Polyethylene Tubing
Connections (Pilot): Barbed Fitting for 5/32 or 1/4” OD Polyethylene Tubing
Mounting: Bracket Supplied
Style: Normally Open
Application: Carrier Moduline
Fail Safe: Yes
Control: (Cool Mode) Thermostat Rev; (Heat Mode) Thermostat Dir
