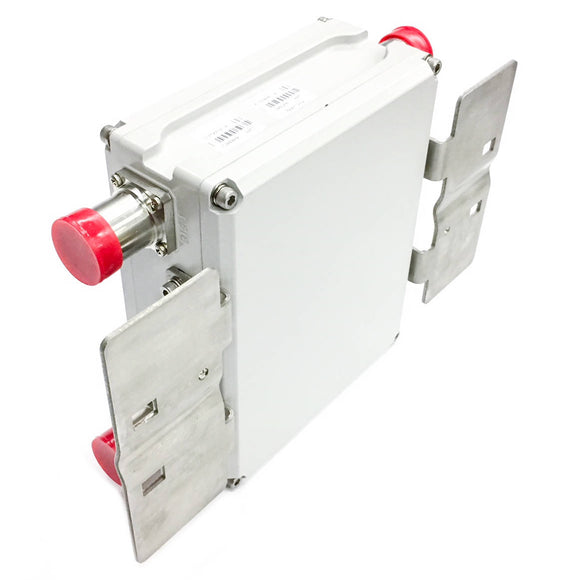

General Specifications |
|
|
Product Type |
1-BTS:1-ANT (Uniplex) |
|
Modularity |
2-Twin |
|
Includes |
Mounting hardware |
| Electrical Specifications | |
| Sub-module | 1 | 2 |
| Branch | 1 |
| Port Designation | ANT |
| AISG 2.0 Device Subunit | E15S08P80 1/2 |
| License Band | AWS 1700, LNA |
| Electrical Specifications Rx (Uplink) | |
| Frequency Range | 1710–1755 MHz |
| Bandwidth | 45.00 MHz |
| Gain, nominal | 12.0 dB |
| Gain Tolerance | ±1 |
| Noise Figure, maximum | 1.3 dB |
| Noise Figure, typical | 1.1 dB |
| Total Group Delay, maximum | 40 ns |
| Output IP3, minimum | 22 dBm |
| Return Loss, typical | 20 dB |
| Insertion Loss - Bypass Mode, typical | 1.5 dB |
| Return Loss - Bypass Mode, typical | 18 dB |
| Electrical Specifications Tx (Downlink) | |
| Frequency Range | 2110–2155 MHz |
| Bandwidth | 45.00 MHz |
| Insertion Loss, maximum | 0.30 dB |
| Total Group Delay, maximum | 10 ns |
| Return Loss, typical | 20 dB |
| Input Power, RMS, maximum | 200 W |
| Higher Order PIM, typical | -153 dBc |
| Higher Order PIM Test Method | 1 x 20 W AWS CW tone 1 x 20 W PCS CW tone |
| VSWR Alarm Threshold | 9.54 dB |
| VSWR Alarm Threshold Tolerance | ±2 dB |
|
Product Classification |
|
|
Product Type |
Tower mounted amplifier |
|
|
|
|
AISG Electrical Specifications |
|
|
Voltage, AISG Mode |
10–30 Vdc |
|
Protocol |
AISG 2.0 |
|
AISG Connector |
8-pin DIN Female |
|
AISG Connector Standard |
IEC 60130-9 |
|
|
|
|
dc Power/Alarm Electrical Specifications |
|
|
Voltage |
7–30 Vdc |
|
Voltage, CWA Mode |
10–18 Vdc |
|
dc Switching/Redundancy |
Yes |
|
Operating Current at Voltage |
100 mA @ 12 V |
|
Operating Current Tolerance |
±20 mA |
|
Alarm Current, CWA Mode |
190 mA ±10 mA |
|
Lightning Surge Current |
20 kA |
|
Lightning Surge Current Waveform |
8/20 waveform |
|
|
|
|
Block Diagram |
|
|
|
|
|

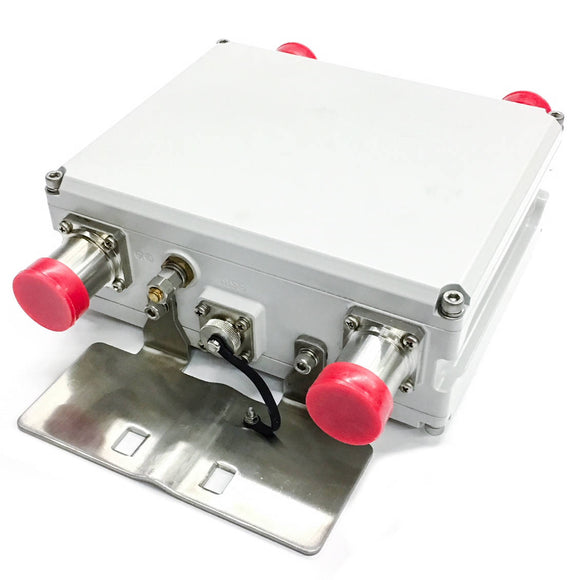

Mechanical Specifications |
|
|
RF Connector Interface |
7-16 DIN Female |
|
RF Connector Interface Body Style |
Long neck |
|
Ground Screw Diameter |
6.00 mm |
|
Color |
Gray |
|
Finish |
Painted |
|
Mount Type |
Pole | Wall |
|
Mounting Pipe Diameter |
40–160 mm |
|
Mounting Pipe Hardware |
Band clamps (2) |
|
Wind Speed, maximum |
200 km/h | 124 mph |
|
|
|
|
Dimensions |
|
|
Height |
160.0 mm | 6.3 in |
|
Width |
196.0 mm | 7.7 in |
|
Depth |
78.0 mm | 3.1 in |
|
Weight |
3.0 kg | 6.6 lb |
|
|
|
|
Environmental Specifications |
|
|
Operating Temperature |
-40 °C to +65 °C (-40 °F to +149 °F) |
|
Relative Humidity |
Up to 100% |
|
Ingress Protection Test Method |
IEC 60529:2001, IP67 |
|
|
|
|
Outline Drawing |
|
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2008 | Designed, manufactured and/or distributed under this quality management system |
