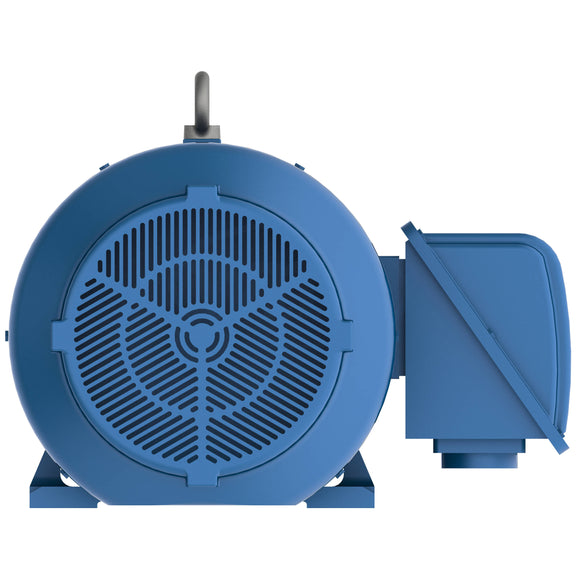

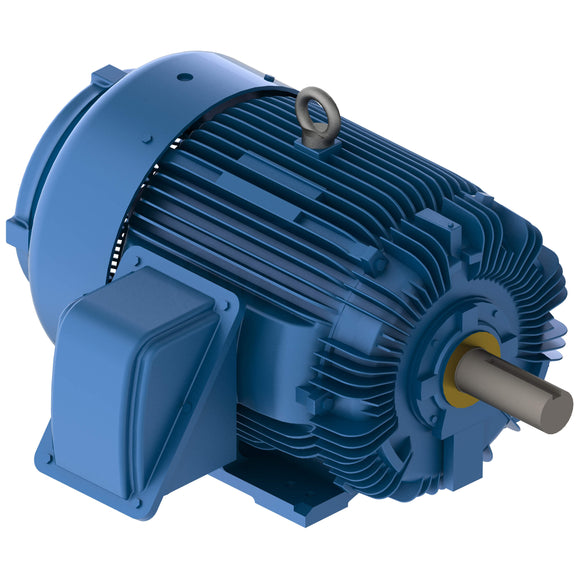

HH1256 Teco-Westinghouse 125HP IEEE 841 Ready Electric Motor, 1200 RPM

APPLICATIONS: • Fans & Blowers • Compressors • Any Severe Duty/ Petro-Chem/ • Pumps • Mixers Pulp & Paper Application • Crushers • Conveyors FEATURES: • 125 HP • 1200 RPM • Totally Enclosed Fan Cooled (IP55 Rating) • IEEE 841 Ready • Meets GM 7E-TA Specifications • Meets IEEE 45 Marine Duty • NEMA Premium Efficient • Department of Energy Efficiency Certification #CC002A • 36 Month Warranty from Date of Manufacture • 60 Hz , 460V Only • 1.15 Service Factor – Continuous • NEMA Design B Torques as a Minimum • Class B Temperature Rise, Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes • Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed with NPT Threaded Entrance – F1 Mounted. F2 Available – See EXTRAS/ OPTIONS Below • Designed for 40°C Ambient Temperature - Note (1) • Designed for 3300 ft. Elevation - Note (2) • CSA Certified for Class I, Division II, Groups B, C, D; Temp Code T3C, Non-Sparking, Non-Static Fan - Note (3) • Bidirectional Rotation • Cast Iron Frame, End Brackets, Fan Cover, and Main Conduit Box • Cast Iron Inner and Outer Bearing Caps • Dual Drilled Feet – Longer Frames. (i.e. 145T Drilled Also for 143T) • 1045 Carbon Steel Shaft • Aluminum Die Cast Squirrel Cage Rotor Construction • Paint System: 2 Part Epoxy • Paint Color: Blue – Munsell 5PB 3/ 8 • Vacuum De-Gassed Re-Greasable Ball Bearings Using Polyrex EM Grease • Automatic Grease Discharge Fittings on Frames on Re-Greaseable Motors • Grounding Terminal Inside Main Box with Provisions for Grounding on Foot • Stainless Steel Nameplate and Hardware • Stainless Steel Automatic Breather Drains • UL and CSA Approved for Inverter Duty per NEMA MG 1, Part 31 - Note (4) • Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts • Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG1, Part 31.4.4.3. • Speed Ranges: 20:1 VT, 10:1 CT • 3 Leads Only • Vibration Not to Exceed 0.08 Inches per Second • Noise Level Not to Exceed 85 dB(A) at 1 Meter Unloaded href="https://buy.tecowestinghouse.com/EcommerceFiles/ProdDesc/MAXE2.pdf">Product Description Instruction Manual
