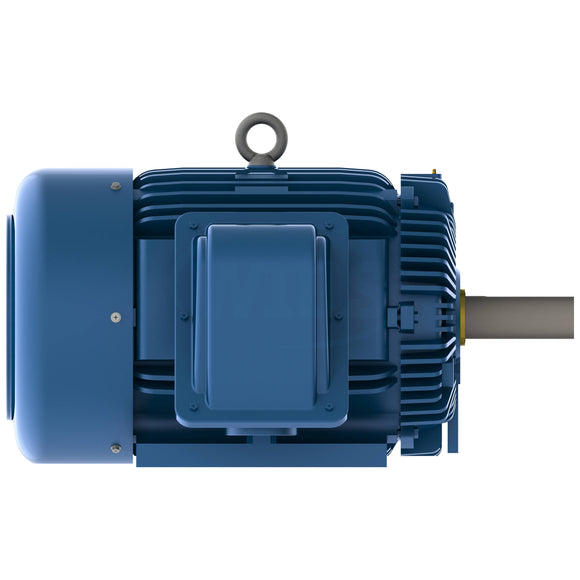

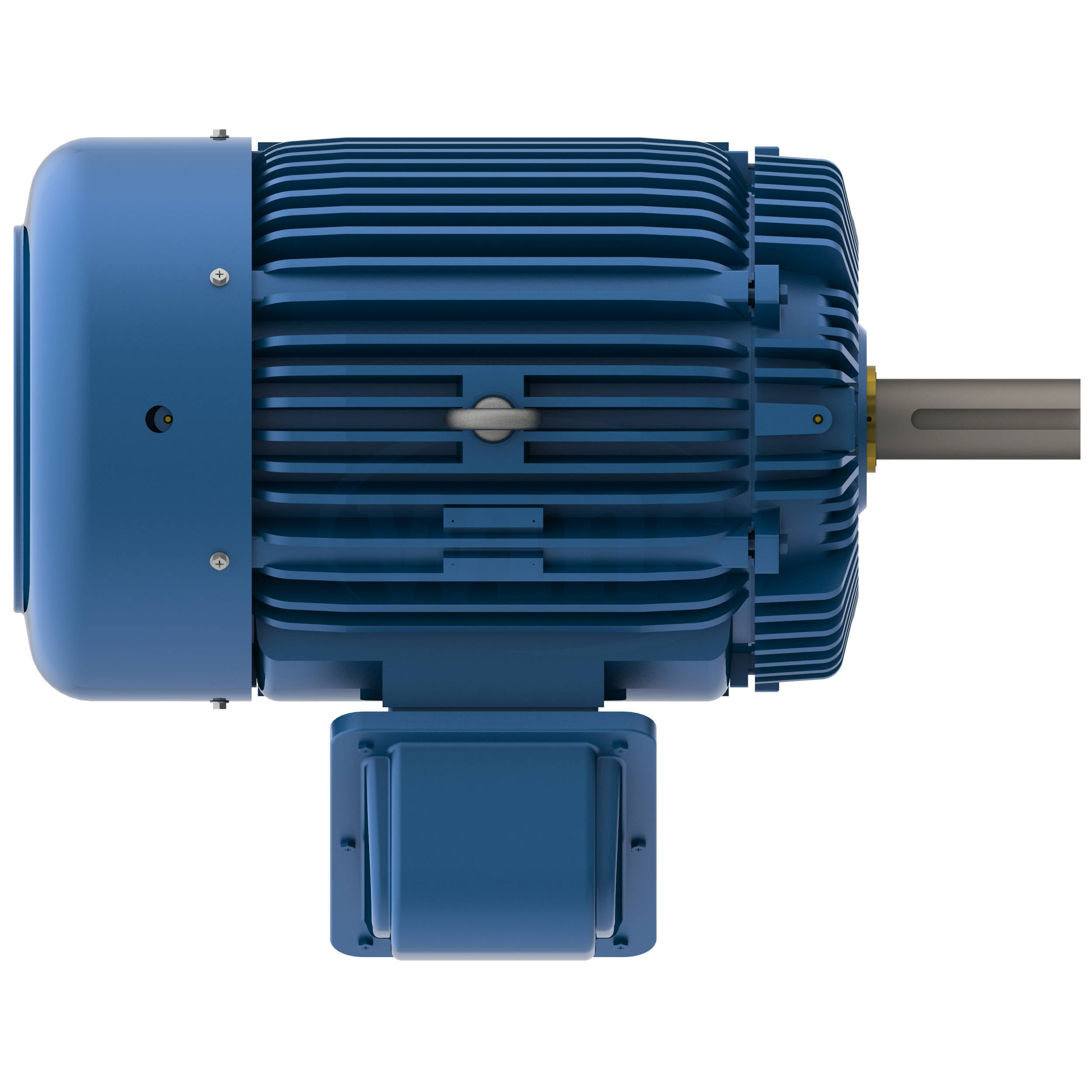

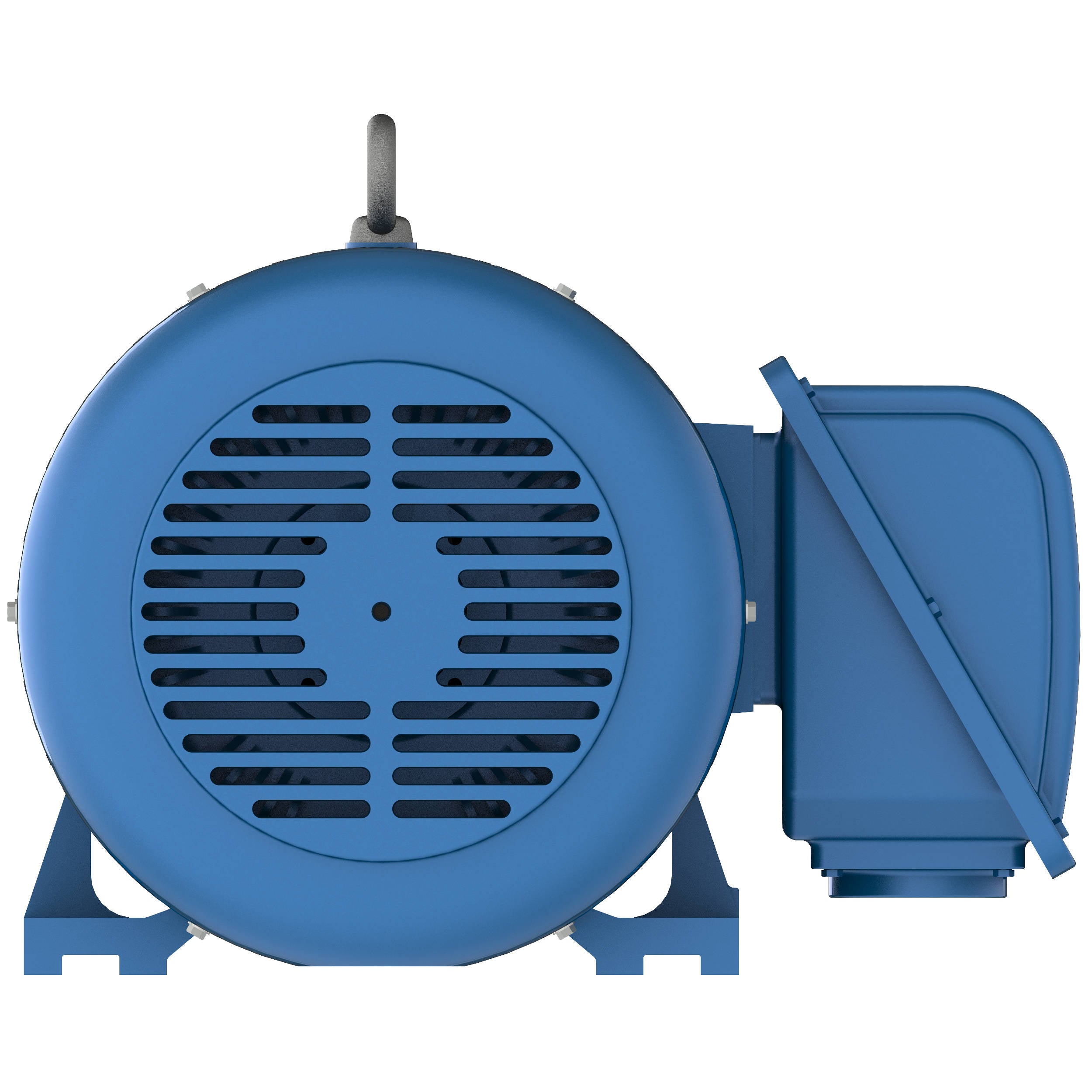

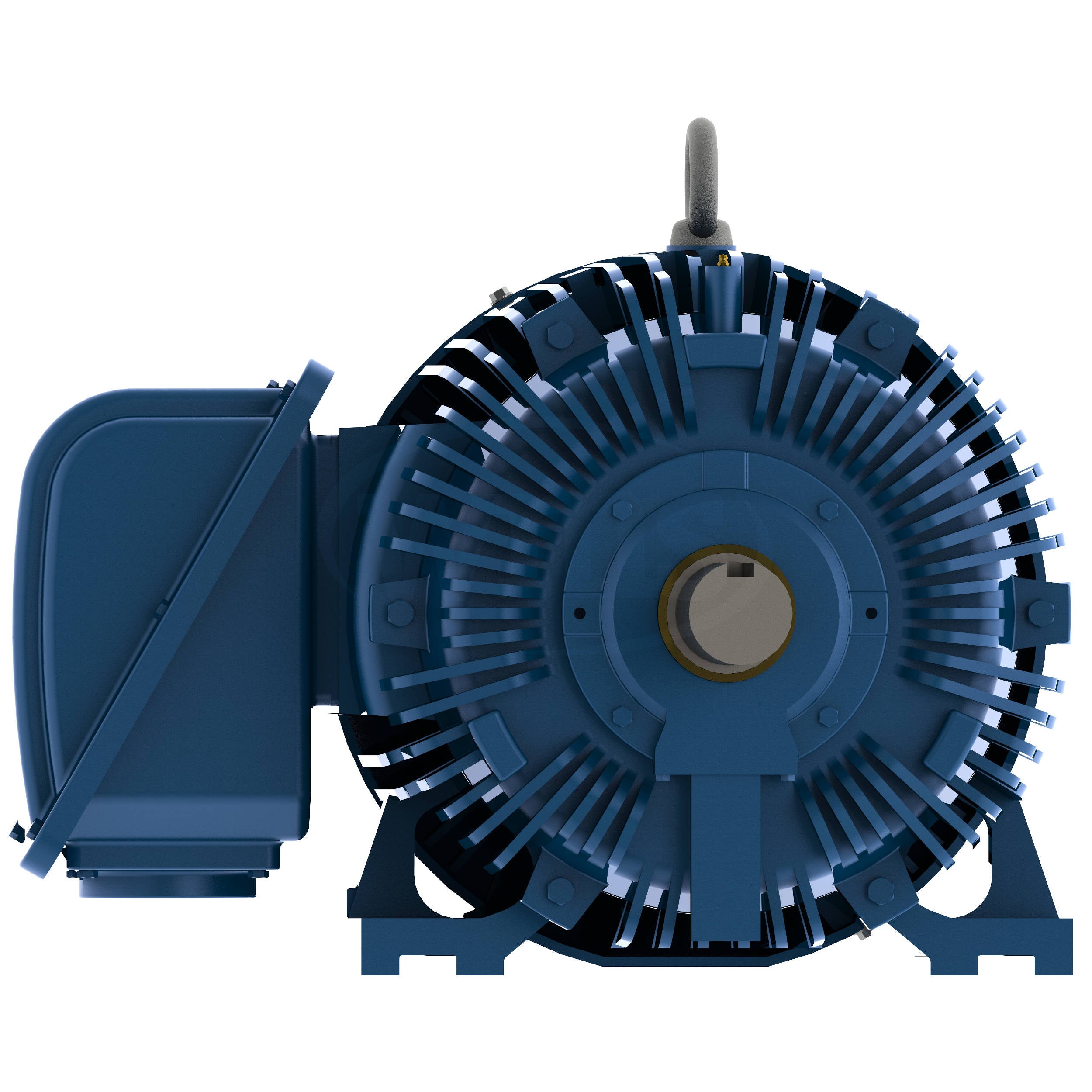

HB0756 Teco-Westinghouse 75 HP IEEE 841 Severe Duty Electric Motor, 1200 RPM

APPLICATIONS: • Fans & Blowers • Compressors • Any Severe Duty/ Petro-Chem/ • Pumps • Mixers Pulp & Paper Application • Crushers • Conveyors FEATURES: • 75 HP • 1200 RPM • Totally Enclosed Fan Cooled (IP55 Rating) • Meets or Exceeds IEEE 841 Standards - Note (1) • Meets GM 7E-TA Specifications • Meets IEEE 45 Marine Duty and ABS "Design Assessment" up to 150 hp • NEMA Premium Efficient • Department of Energy Efficiency Certification #CC002A • 60 Month Warranty from Date of Manufacture • 3 Phase, 60 Hz , 460V • 1.15 Service Factor – Continuous • NEMA Design B Torques as a Minimum • Class B Temperature Rise, Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes • Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed with NPT Threaded Entrance – F1 Mounted. F2 Available – See EXTRAS/ OPTIONS Below • Designed for 40°C Ambient Temperature or 50°C @ 1.0 S.F. - Note (2) • Designed for 3300 ft. Elevation - Note (2) • CSA Certified for Class I, Division II, Groups B, C, D; Temp Code T3C, Non-Sparking, Non-Static Fan • Bidirectional Rotation • Cast Iron Frame, End Brackets, Fan Cover, and Main Conduit Box • Dual Drilled Feet – Longer Frames. (i.e. 145T Drilled Also for 143T) • 1045 Carbon Steel Shaft • Aluminum Die Cast Squirrel Cage Rotor Construction • Paint System: 2 Part Epoxy • Paint Color: Blue – Munsell 5PB 3/ 8 • Single Shielded Regreasable Bearings with Polyrex Grease • Vacuum De-Gassed Re-Greasable Ball Bearings for Frames 280TS - 5808B Using Polyrex EM Grease • Automatic Grease Discharge Fittings on Frames on Re-Greasable motors • Grounding Terminal Inside Main Box with Provisions for Grounding on Frame • Stainless Steel Nameplate and Hardware • Stainless Steel Automatic Breather Drains • UL Recognized and CSA Approved for Inverter Duty per NEMA MG 1, Part 31 - Note (3) • Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200V • Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD. • Speed Ranges: 20:1 VT, 10:1 CT. 3:1 CT for 350 hp and up • 3 Leads Only • Vibration Not to Exceed 0.08 Inches per Second • Noise Level Not to Exceed 85 dB(A) at 1 Meter Unloaded • INPRO™ Seals Installed on Both Ends • Breather Drains in Both End Frames for Vertical Mount Product Description Instruction Manual
