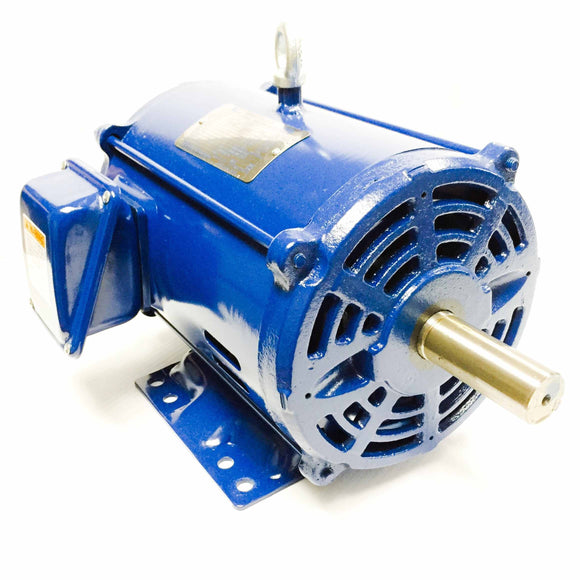

DTP1/56 1.5 HP Teco-Westinghouse Rolled Steel

APPLICATIONS:

• Fans & Blowers
• Compressors
• Pumps
• HVAC Equipment

FEATURES:

• 1-1/2 HP
• 1200 RPM
• Totally Enclosed Fan Cooled Enclosure (IP44)
• 36 Month Warranty from Date of Manufacture
• Meets or Exceeds NEMA Premium Efficiency Levels
• 60 Hz - 230/ 460V (Usable on 200 & 208V)
• 1.15 Service Factor - Continuous
• Class F Insulation with Phenolic Alkyd Resin Varnish
• Class B Temperature Rise
• NEMA Design B Torques
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
• Designed for 40°C Ambient Temperature - Note (1)
• Designed for 3300 ft. Elevation - Note (2)
• Bi-Directional Rotation
• Rolled Steel Frame, Fan Cover, and Conduit Box
• Cast Iron End Brackets
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: Blue - Munsell 5PB 3/ 8
• Double Shielded Bearings Pre-Packed with MULTEMP SRL Grease
• Grounding Terminal Inside Main Box
• Stainless Steel Nameplate
• Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of up to 2200 V
• Speed Ranges: 20:1 VT, 10:1 CT
• 9 Leads - 5 HP and Below
