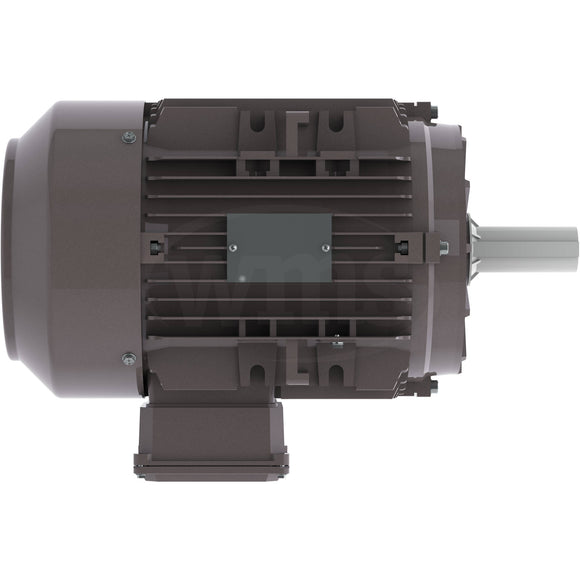

GX3-AL-TF-184T-4-B-D-5 Techtop 5HP Aluminum Frame Electric Motor, 1800RPM-1

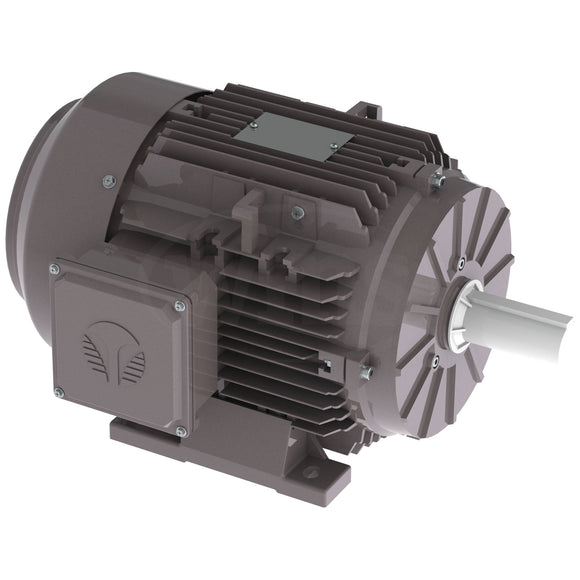

GX3-AL-TF-184T-4-B-D-5 Techtop 5HP Aluminum Frame Electric Motor, 1800RPM-2

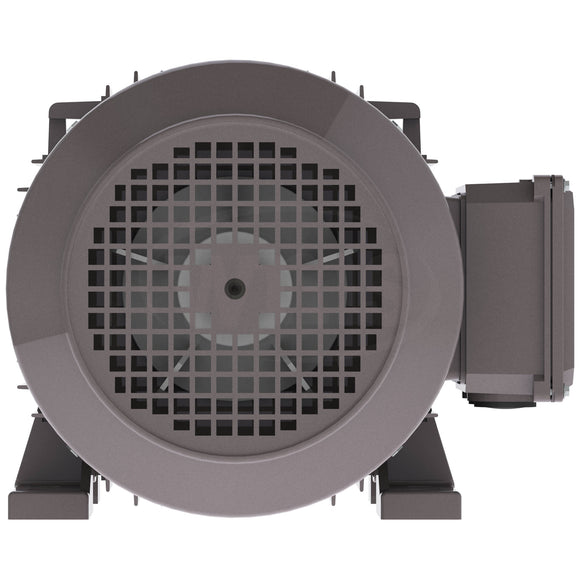

GX3-AL-TF-184T-4-B-D-5 Techtop 5HP Aluminum Frame Electric Motor, 1800RPM-3

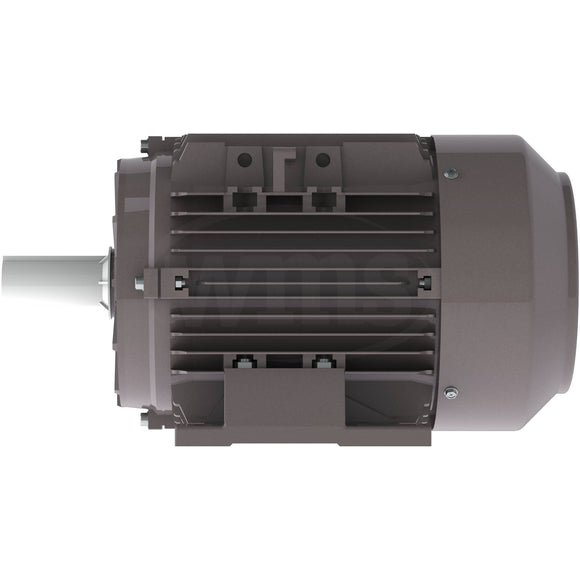

GX3-AL-TF-184T-4-B-D-5 Techtop 5HP Aluminum Frame Electric Motor, 1800RPM-4

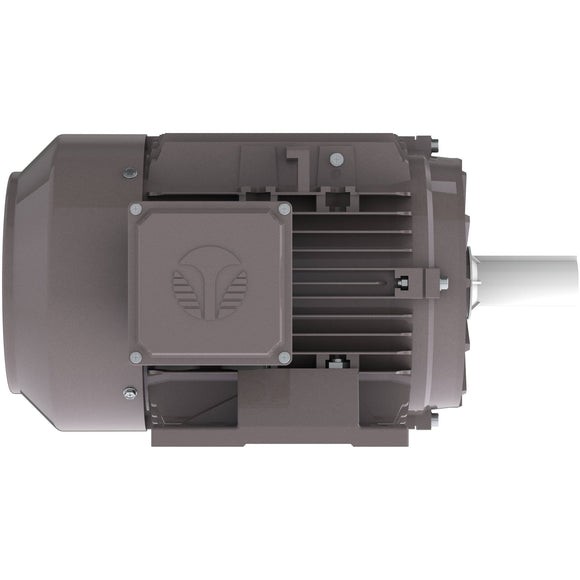

GX3-AL-TF-184T-4-B-D-5 Techtop 5HP Aluminum Frame Electric Motor, 1800RPM-5

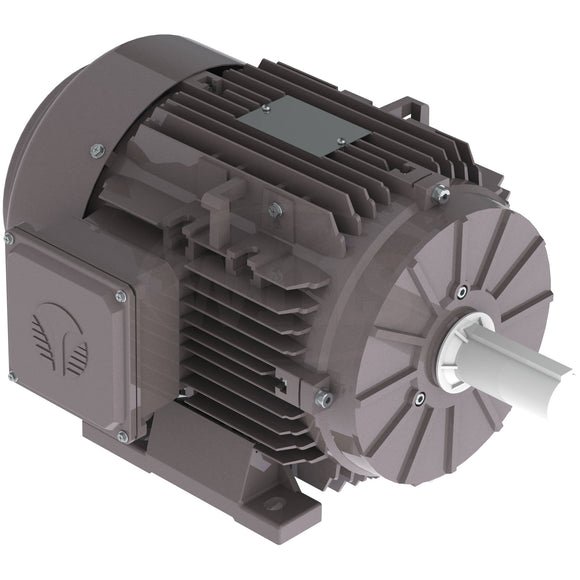

GX3-AL-TF-184T-4-B-D-5 Techtop 5HP Aluminum Frame Electric Motor, 1800RPM-6

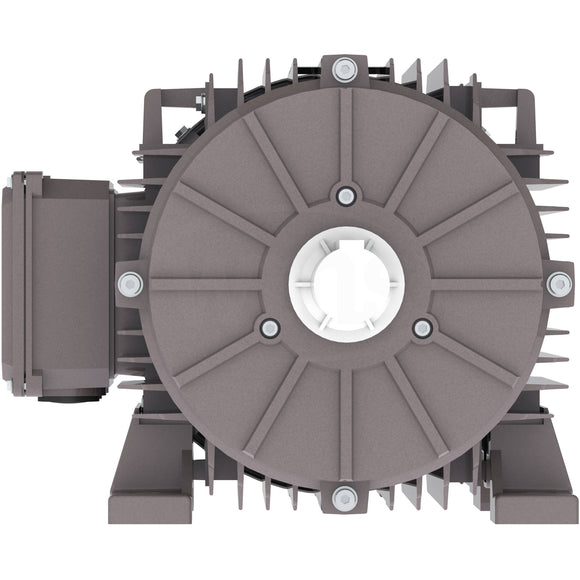

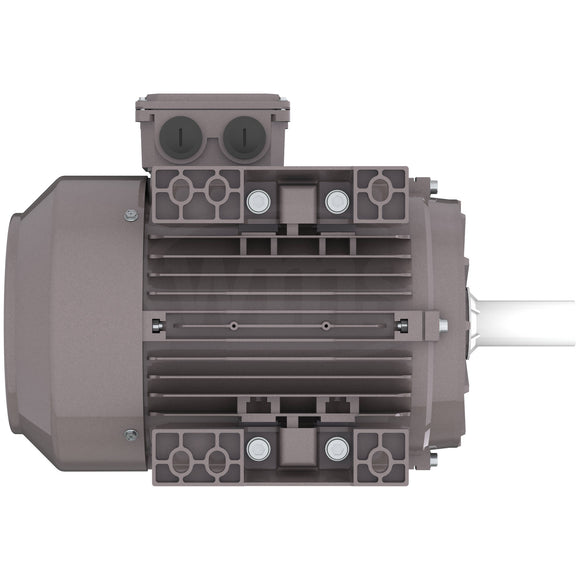

GX3-AL-TF-184T-4-B-D-5 Techtop 5HP Aluminum Frame Electric Motor, 1800RPM

$567.75 USD $757.00 USD Save $189.25 USD

Shipping calculated at checkout

TechTop Industries, Inc. SKU: GX3ALTF184T4BD5

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Standard Features

  • NEMA Premium Efficiency
  • Dual Voltage – Three Phase
  • Inverter Duty – 15: Constant Torque (MG1 Part 31)
  • Totally Enclosed Fan Cooled, IP55 Protection
  • VPI Lap Wound Stator with Anti-Fungal Coating
  • Double Lip Oil Seal on DE & ODE
  • Internal Shaft Grounding Brush
  • 1.25 Service Factor – 143T Frame and Up
  • 50 Hz Capabble at 1.00 Service Factor
  • 40°C Ambient Temperature Rating
  • 1045 Carbon Steel Shaft
  • Multi-Mount Frame with Removable Feet
  • Oversized Drive End Bearing
  • One-Way Brass Condensation Drains
  • Aluminum Conduit Box, 90° Rotatable
  • Class F Insulation System with Class H Stator
  • F1, F2 & F3 Box Position Convertible (Shipped F1)
  • Class 1, Division 2, Group C & D Compliant
  • Installation up to 3300ft Altitude
  • 36 Month Warranty from Purchase Date

General Data

Brand Techtop
Model Number GX3-AL-TF-184T-4-B-D-5
Factory Type TXA
Frame Size 184T
Frame Enclosure TEFC
Mounting Rigid
Insulation Class F
Duty Continuous / S1
NEMA Design A
Frame Material Cast Aluminum
Ingress Protection IP55
Tropicalization True
Cable Entry One 3/4" NPT
Feet Removable True
Double Drilled -
Paint Color Graphite Gray
Paint RAL 7024
Weight 73.5 lbs

Electrical Data

Horsepower 5.0 HP
Speed 1750 RPM @ 60Hz
1445 RPM @ 50Hz
Voltage 208-230/460VAC
190/380VAC
Phase 3
Full Load Amps 13.2/12.4/6.18 Amps (208/230/460V) @ 60Hz
14.5/7.25 Amps (190/380V) @ 50Hz
Power Factor 0.84 @ 60Hz
Nominal Efficiency 89.5% @ 60Hz
88.4% @ 50Hz
Service Factor 1.25 @ 60Hz
1.00 @ 50Hz
KVA Code L @ 60Hz
H @ 50Hz
Number of Leads 9
Connection YY/Y

Mechanical Data

DE Bearing 6306ZZ
NDE Bearing 6206ZZ
Wavy Washer NDE

Site Conditions

Ambient Temperature 40°C
Altitude 1000m above sea level

Dimensions

Techtop Motor Dimensions

Documentation
