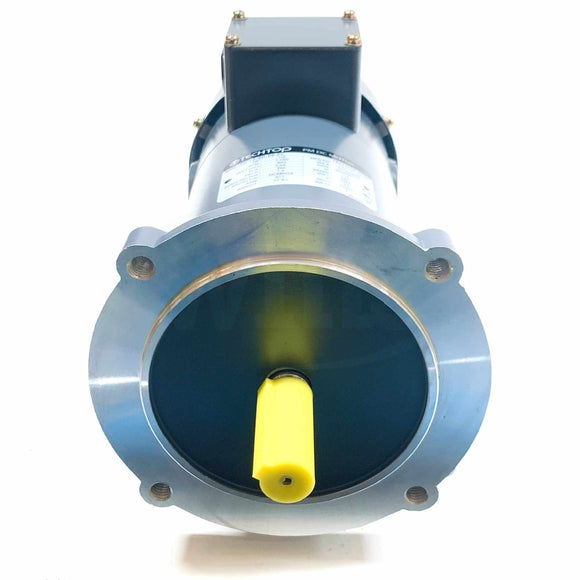

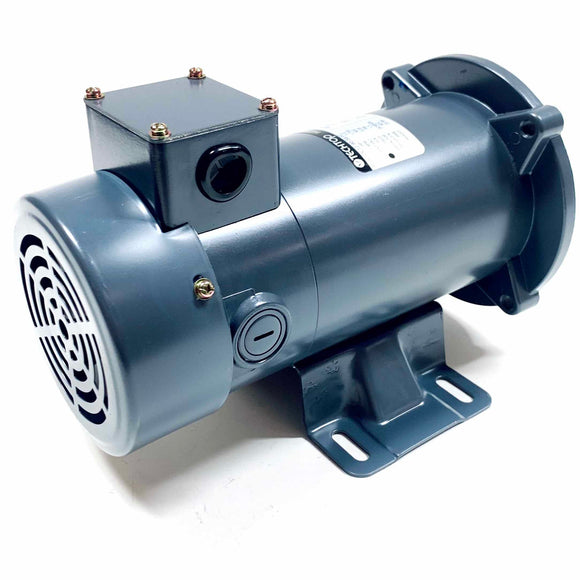

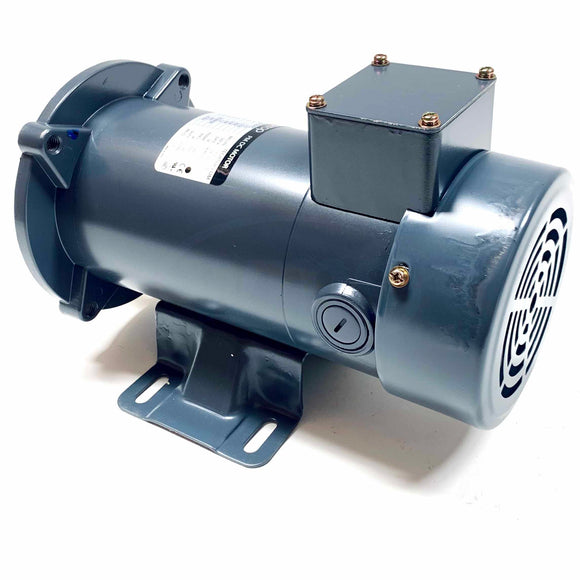

DC1-90-56-FC Techtop 1HP Permanant Magnet 90VDC Electric Motor, 1800RPM

Designed for use on SCR and PWM type direct current adjustable speed drives and on across-the-line DC controls. Ideal applications include conveyors, turntables, packaging or anywhere adjustable speed and constant torque is required.

• 1 HP
• DC1-90-56-FC Model Number
• 1800 Sync. Speed

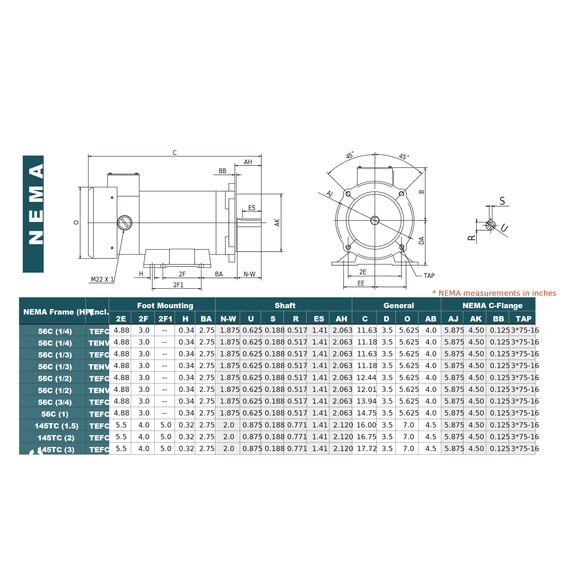

• 56C Frame
• 90 VDC

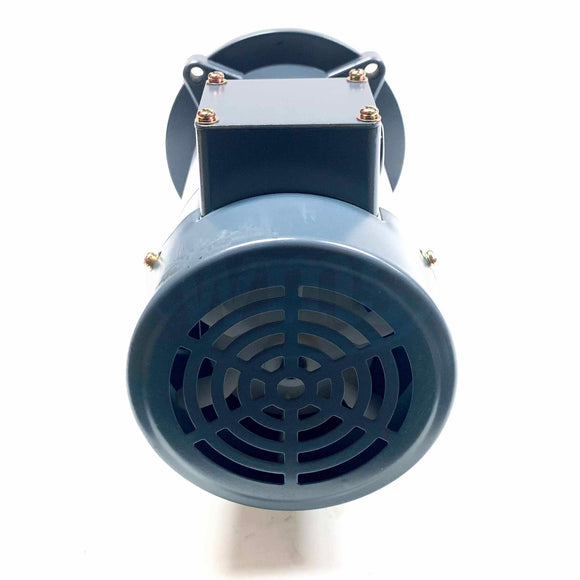

• TEFC Enclosure
• 10.4 Full Load Amps (A)
• 33 lbs

• SCR Rated
• 20:1 Constant Torque Speed Range
• 1.15 Service Factor
• Rolled Steel Frame Construction
• Bolt-on Removable Base
• Double Shielded Ball Bearings
• 1045 Steel Shaft
• Corrosion Resistant Hardware
• Continuous (S1) Duty
• Ambient Temperatures up to 40°C
• Installation up to 3300 feet (1000 MASL)
• IP54 Rated Ingress Protection
• Class F Insulation
• Class B Temperature Rise
• 12 Month Warranty
