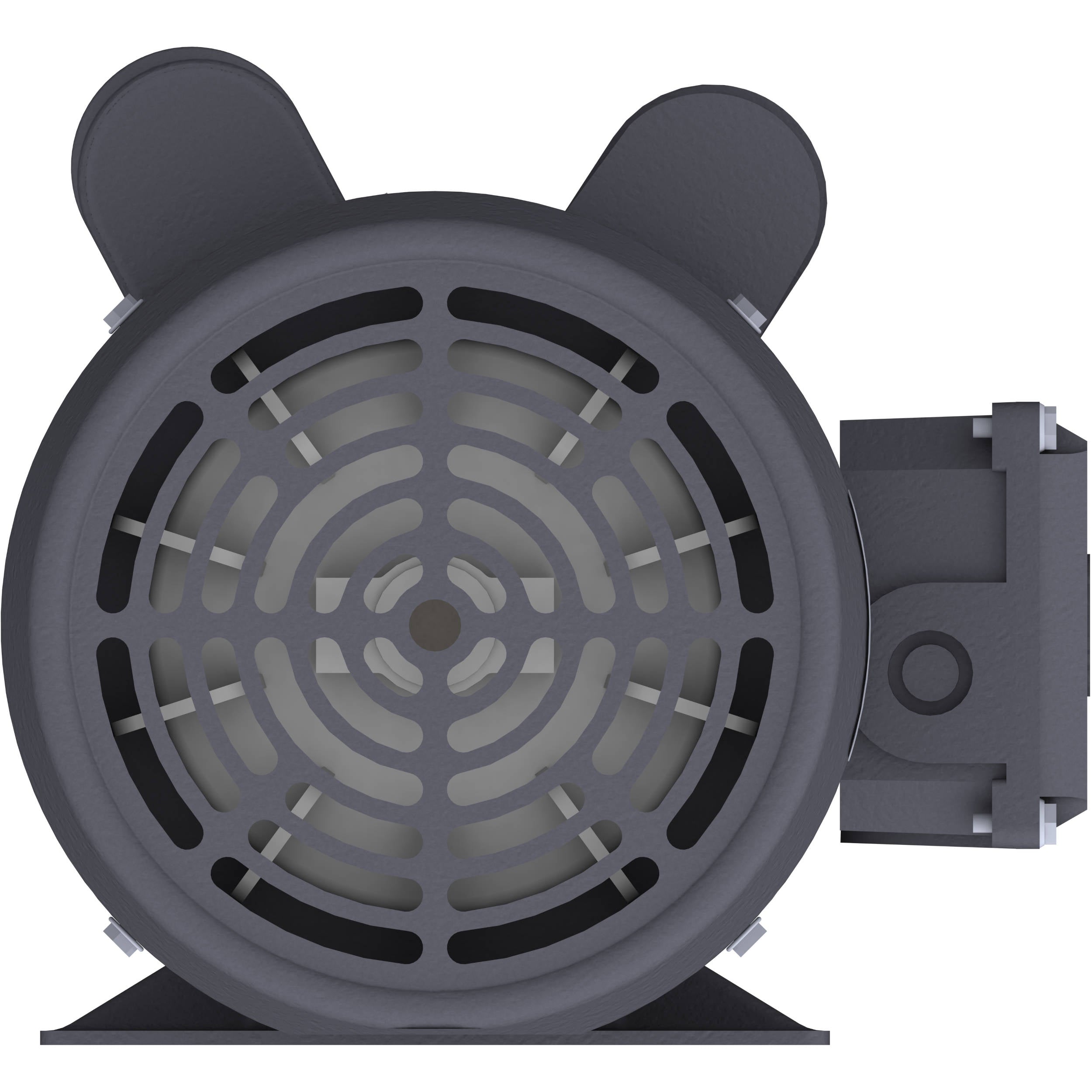

RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM-1

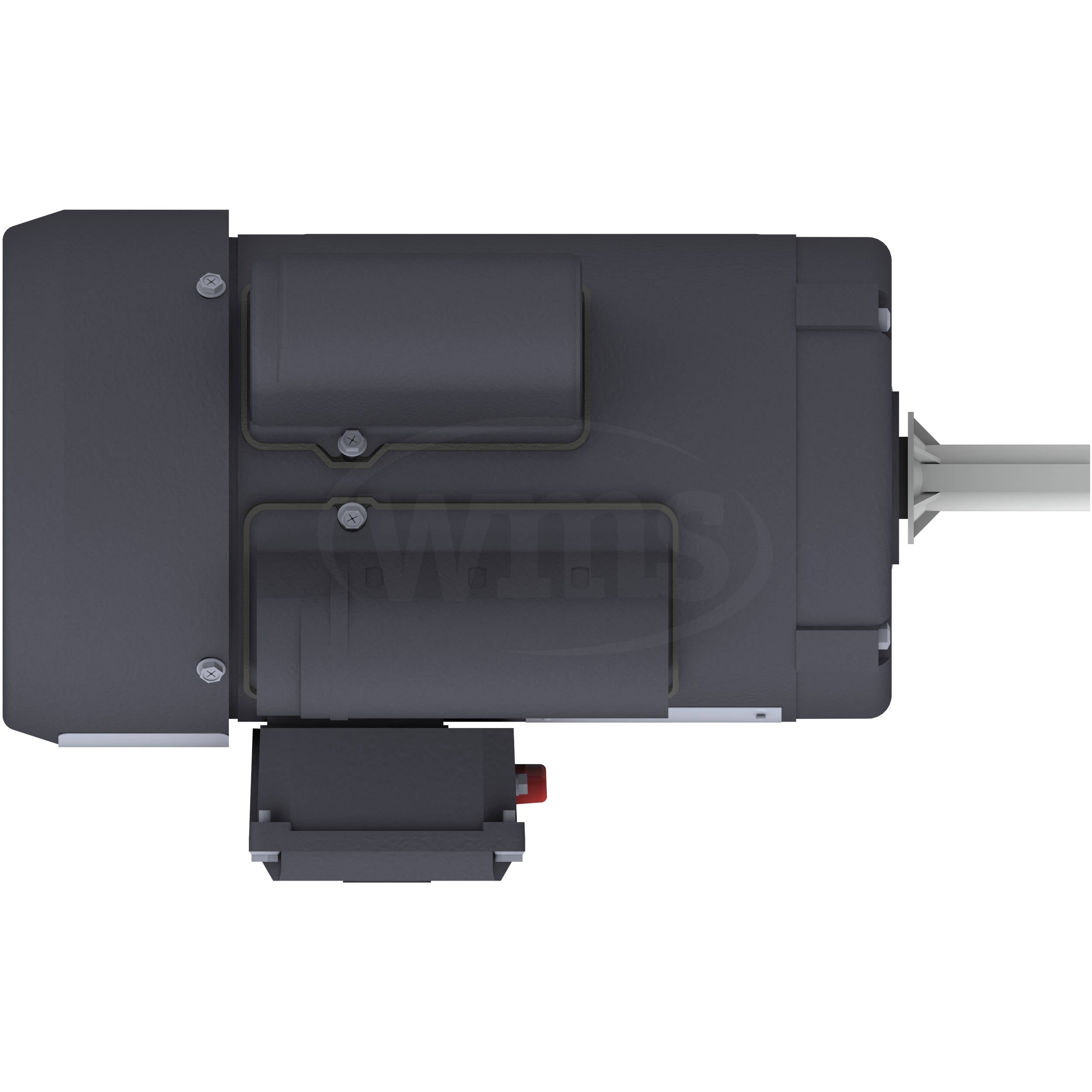

RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM-2

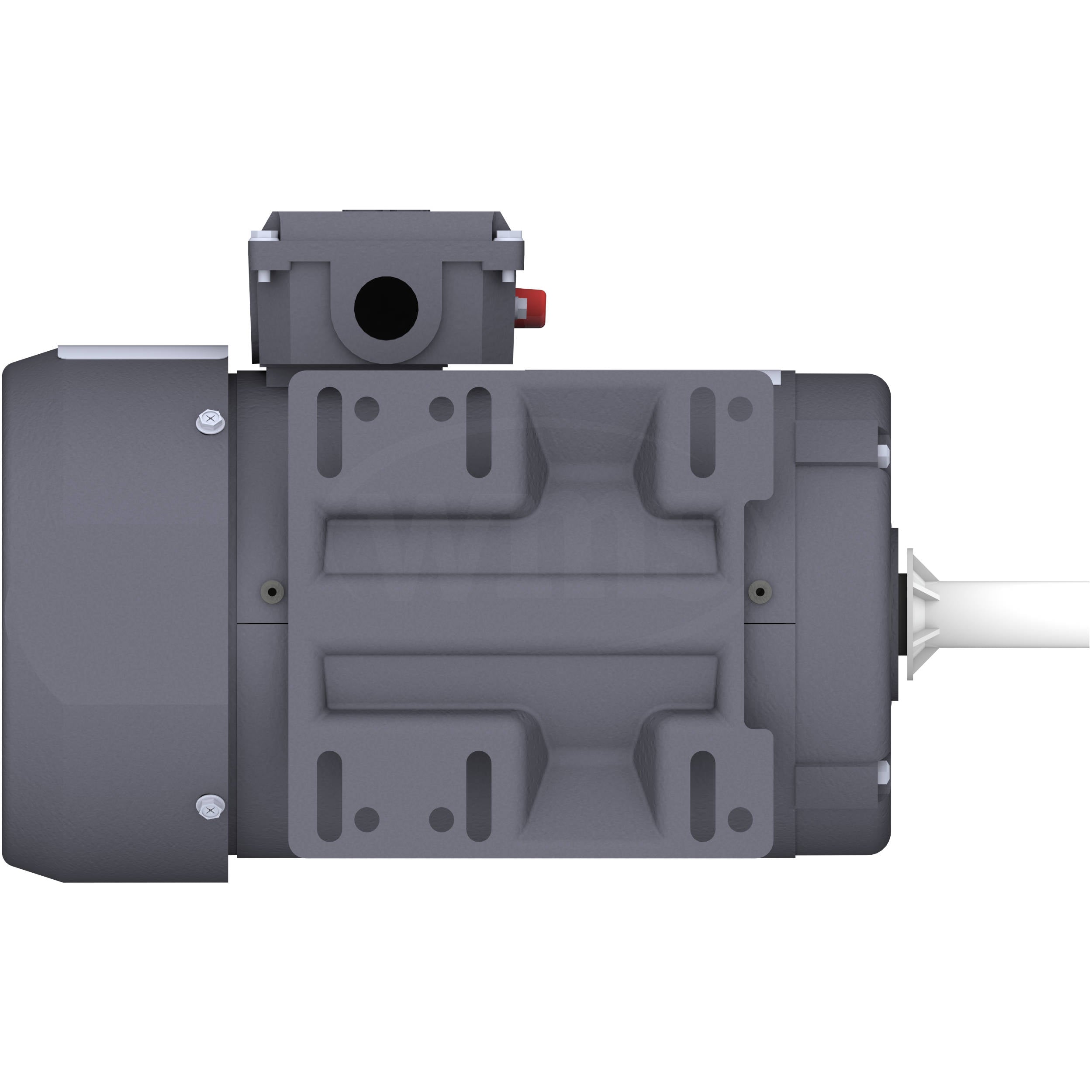

RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM-3
RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM-4
RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM-5

RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM

$436.00

Shipping calculated at checkout

TechTop Industries, Inc. SKU: RD1RSTF56H4BC1

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

Manufacturer Techtop
Part Number RD1RSTF56H4BC1
RD1-RS-TF-56H-4-B-C-1
Horsepower 1 HP
Speed 1750 RPM
Voltage 115/208-230V
Phase Single (1)
Full Load Amps 9.3/4.95-4.65 A
Power Factor 0.90
Nominal Efficiency 77.5 %
Service Factor 1.15
KVA Code J
LRC @ 60Hz HV 32.5622
Start Capacitor SCAP165V-300UF
Run Capacitor RCAP250V-60UF
Number of Leads 7

General Data:

Frame Size 56H
Frame Enclosure TEFC
Mounting Rigid
Insulation Class F
Duty Continuous / S1
NEMA Design L
Frame Material Rolled Steel
Ingress Protection IP54
Cable Entry 0.88”
Double Drilled
Paint Color Graphite Gray
Paint RAL 7024
Weight 41.0 lbs

Torque Values:

Locked Rotor 10.4631 lb-ft
346.0 % FLT
Pull-Up 7.25761 lb-ft
240.0 % FLT
Breakdown 8.04385 lb-ft
266.0 % FLT
Full Load 3.024 lb-ft
100.0 % FLT
