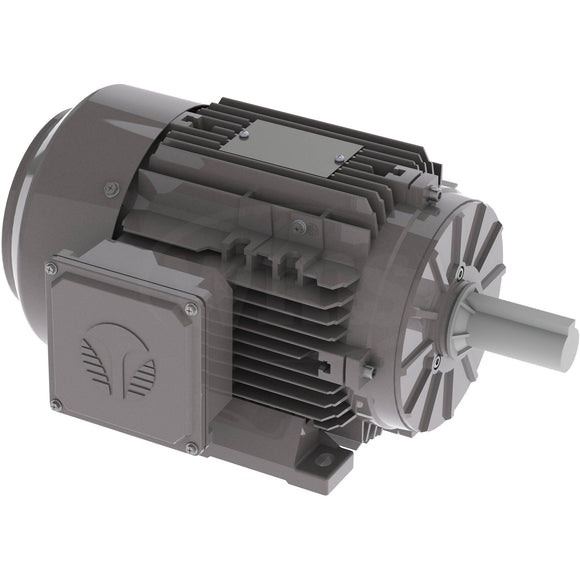

GX3-AL-TF-145T-2-B-D-2 Techtop 2HP Aluminum Frame Electric Motor, 3600RPM-1

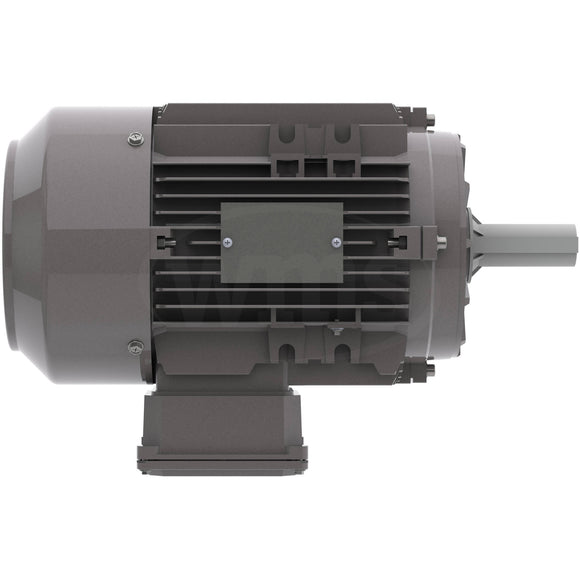

GX3-AL-TF-145T-2-B-D-2 Techtop 2HP Aluminum Frame Electric Motor, 3600RPM-2

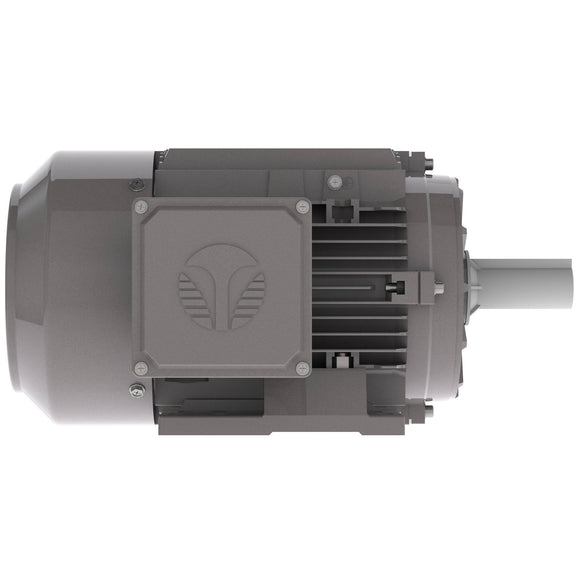

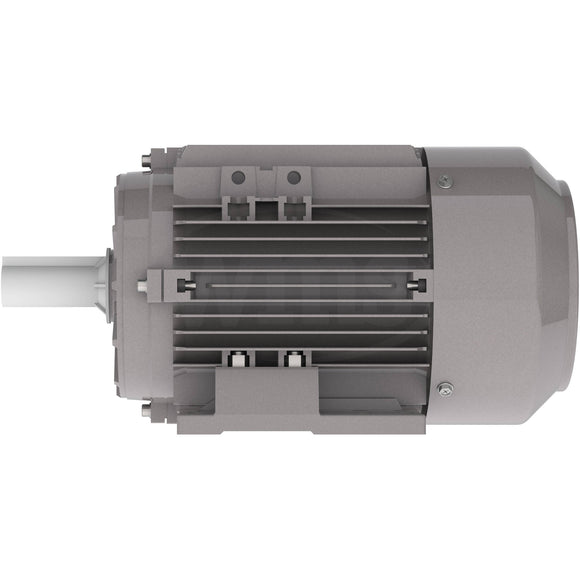

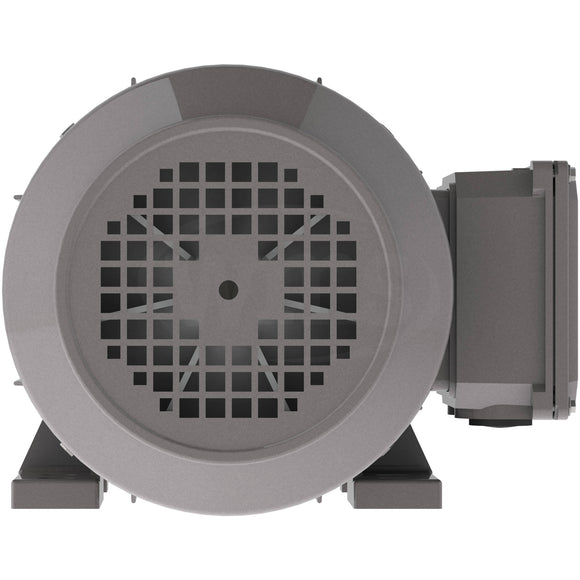

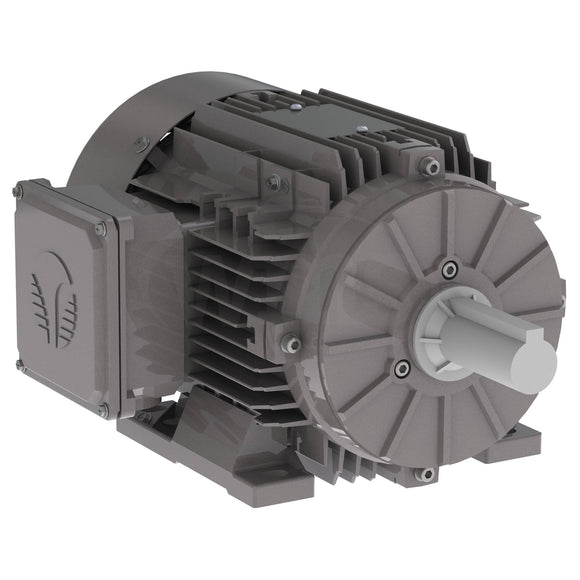

GX3-AL-TF-145T-2-B-D-2 Techtop 2HP Aluminum Frame Electric Motor, 3600RPM

$376.97

Shipping calculated at checkout

TechTop Industries, Inc. SKU: GX3ALTF145T2BD2

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Standard Features

  • NEMA Premium Efficiency
  • Dual Voltage – Three Phase
  • Inverter Duty – 15: Constant Torque (MG1 Part 31)
  • Totally Enclosed Fan Cooled, IP55 Protection
  • VPI Lap Wound Stator with Anti-Fungal Coating
  • Double Lip Oil Seal on DE & ODE
  • Internal Shaft Grounding Brush
  • 1.25 Service Factor – 143T Frame and Up
  • 50 Hz Capabble at 1.00 Service Factor
  • 40°C Ambient Temperature Rating
  • 1045 Carbon Steel Shaft
  • Multi-Mount Frame with Removable Feet
  • Oversized Drive End Bearing
  • One-Way Brass Condensation Drains
  • Aluminum Conduit Box, 90° Rotatable
  • Class F Insulation System with Class H Stator
  • F1, F2 & F3 Box Position Convertible (Shipped F1)
  • Class 1, Division 2, Group C & D Compliant
  • Installation up to 3300ft Altitude
  • 36 Month Warranty from Purchase Date

General Data

Brand Techtop
Model Number GX3-AL-TF-145T-2-B-D-2
Factory Type TXA
Frame Size 145T
Frame Enclosure TEFC
Mounting Rigid
Insulation Class F
Duty Continuous / S1
NEMA Design B
Frame Material Cast Aluminum
Ingress Protection IP55
Tropicalization True
Cable Entry One 3/4" NPT
Feet Removable True
Double Drilled -
Paint Color Graphite Gray
Paint RAL 7024
Weight 29.5 lbs

Electrical Data

Horsepower 2.0 HP
Speed 3500 RPM @ 60Hz
2880 RPM @ 50Hz
Voltage 208-230/460VAC
190/380VAC
Phase 3
Full Load Amps 5.58/5.18/2.59 Amps (208/230/460V) @ 60Hz
6.16/3.08 Amps (190/380V) @ 50Hz
Power Factor 0.85 @ 60Hz
Nominal Efficiency 85.5% @ 60Hz
83.8% @ 50Hz
Service Factor 1.25 @ 60Hz
1.00 @ 50Hz
KVA Code L @ 60Hz
H @ 50Hz
Number of Leads 9
Connection YY/Y

Mechanical Data

DE Bearing 6205ZZ
NDE Bearing 6205ZZ
Wavy Washer NDE

Site Conditions

Ambient Temperature 40°C
Altitude 1000m above sea level

Dimensions

Techtop Motor Dimensions

Documentation
