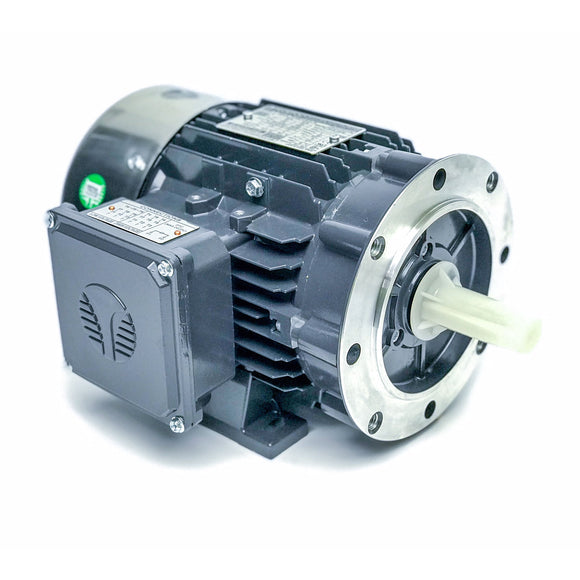

- NEMA Premium Efficiency
- 3 HP
- 3-Phase
- 3600 RPM (-Pole)

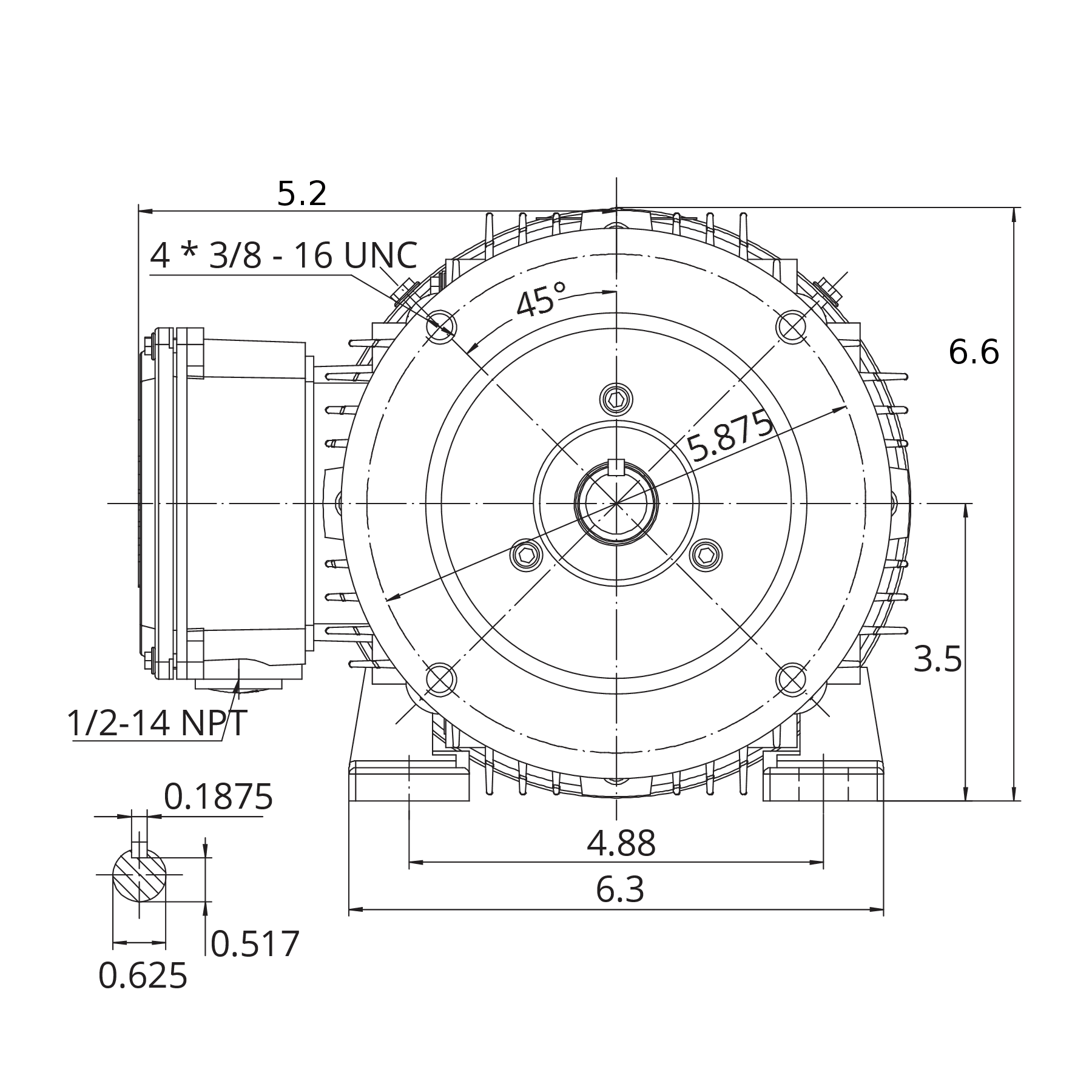

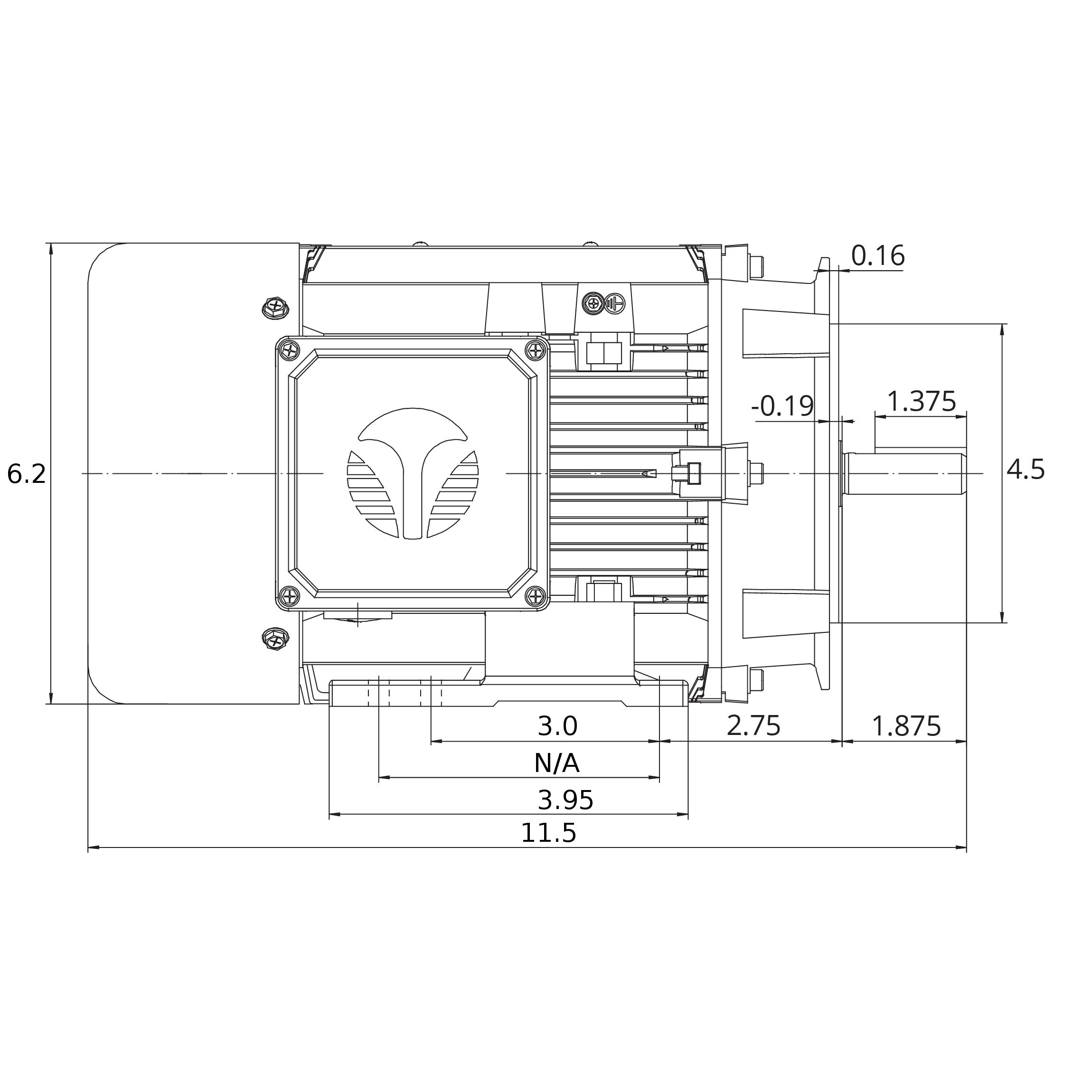

- NEMA Frame 56HC
- 230/460V @ 60 Hz (50Hz Capable; Usable at 208V)
- 7.26 Amps @ 230V
3.63 Amps @ 460V - Full Load Efficiency %
- Totally Enclosed Fan Cooled (TEFC)
- 38 lbs
- Continuous (S1) Duty
- Ambient Temperatures up to 104°F (40°C)
- Installation up to 3300 Feet (1000 Meters)
- IP 55
- Inverter Rated 15:1 Constant Torque (1.0 S.F. on VFD Power) per NEMA MG 1 Part 31
- Class F Insulation
- Designed to Class B Temperature Rise
- Vacuum Pressure Impregnated Stator
- Shaft Grounding Brush Installed

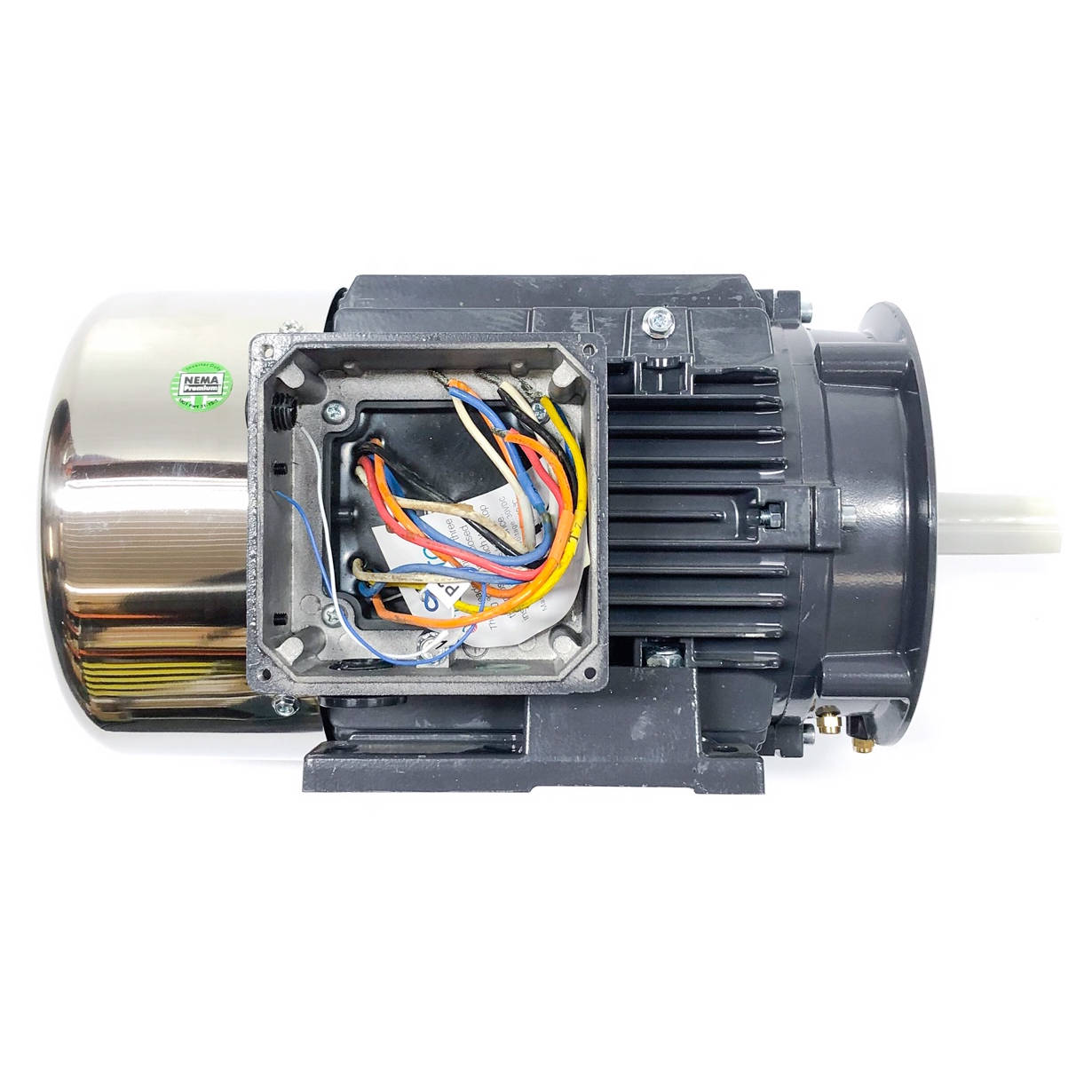

- Fully Epoxy Potted Conduit Box Entry

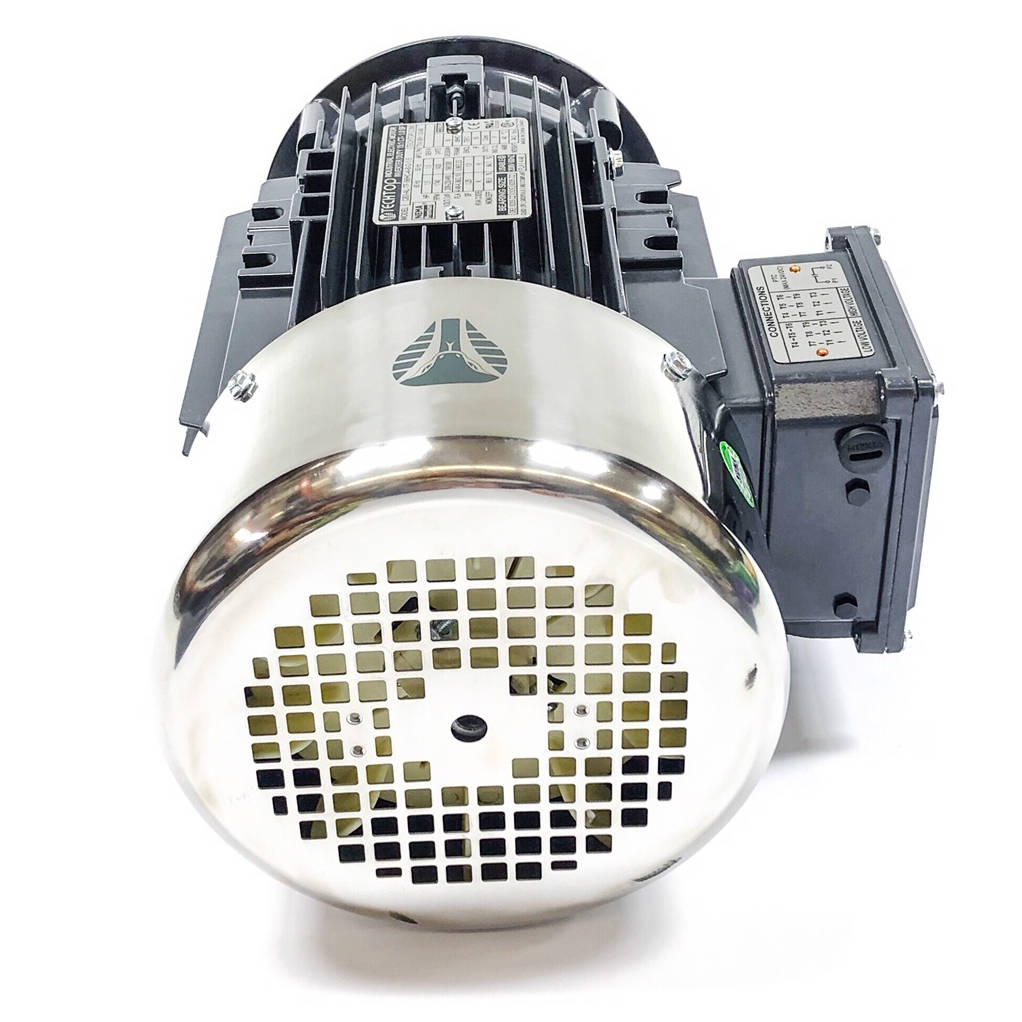

- Stainless Steel Anti-Corrosion Fan Cover
- Brake Kit & Encoder Kit Ready
- PTC Thermal Protection Installed
- Multi-Mount Removable Feet; F1, F2, F0 Convertible
- 1.25 Service Factor with 60Hz TEFC Operation
- Conduit Base 90° Rotatable
- Full Die-Cast Aluminum Frame
- Anti-microbial (Tropicalization) Coating on Stator
- Over-sized Shielded Bearings
- Vitonâ„¢ Double Lip Shaft Seal
- TENV Capable at 1.0 SF
- 1045 Steel Shaft
- Stainless Steel Nameplate
- Corrosion Resistant Blue Zinc Hardware
- Class 1, Division II, Groups A, B, C and D Compliant
- Powder Coated RAL7024 - Graphite Gray
- 36 Months from date of Purchase
