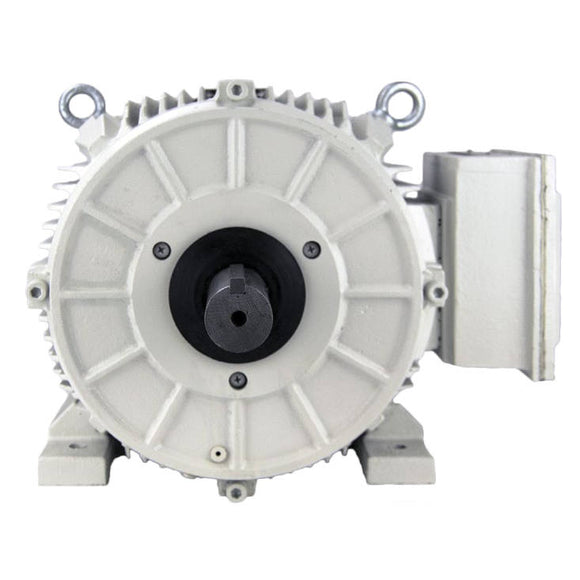

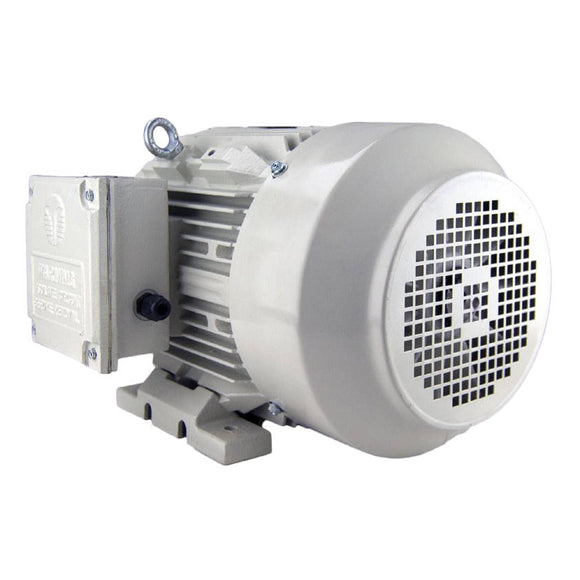

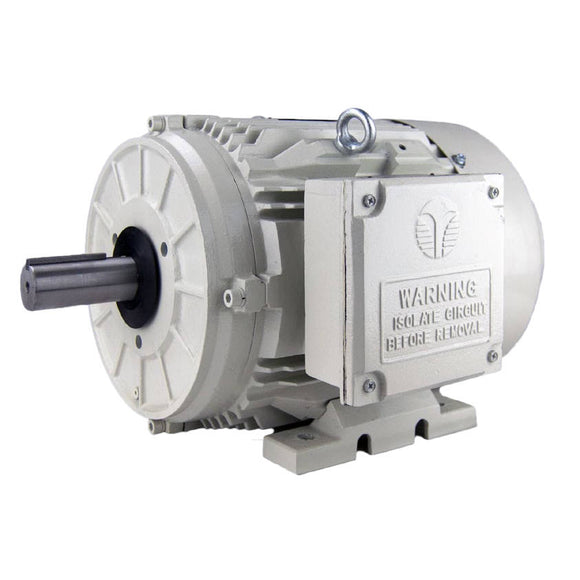

BK3-CI-TF-284T-6-BR-G-15 Techtop 15HP Oil Pump Electric Motor, 1200RPM

$1,707.41 USD

Shipping calculated at checkout

TechTop Industries, Inc. SKU: BK3CITF284T6BRG15

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 284T Frame, 230/460/796V 3-Phase 60Hz

Description Product Specs Manufacturer

Specifications

Manufacturer Techtop
Model Number BK3-CI-TF-284T-6-BR-G-15
Frame Size 284T
Power 15 HP
Speed 1200 RPM
Voltage 230/460/796V
3-Phase
60Hz
Full Load Amps 38.2/19.1/11 Amps
Enclosure TEFC
IP55
Mounting Rigid Base
Frame Material Cast Iron
Service Factor 1.15
Number of Leads 12
Insulation Class F
NEMA Design D
Weight 301 lbs

Standard Features

  • 5% to 8% Slip NEMA Design “D” Operation
  • Double Lip Oil Seals on Both Ends
  • Cast Iron Terminal Box with Gasket
  • Roller Bearing on 404T and Above
  • TEFC Cast Iron Frame
  • Corrosion Resistant Hardware
  • Vacuum Impregnated Stator
  • Mounting Position Convertible F1, F2, F3
  • Class F Insulation System , Class H Stator
  • Tropicalization on Stator Winding
  • One-Way Brass Condensation Drains
  • 24 Month Warranty from Date of Purchase
  • 230VAC
  • 460VAC
  • 796VAC
  • Electric Motor
  • 284T
  • TEFC
  • 3-Phase
  • 15HP
  • 1200RPM
  • Oil Pump
