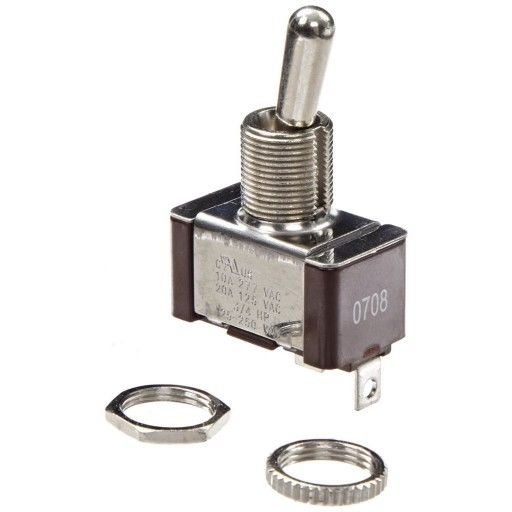

XTD2D2AGP Eaton Toggle Switch, 20A@125VAC, 21EW29

$5.47 USD

Shipping calculated at checkout

Eaton SKU: XTD2D2AGP Barcode: 786685885681

30 Day
Return Policy

Ships Fast
in 24 hours

New, Surplus Stock. On/Momentary On

29 In Stock!

Description Product Specs Manufacturer


X Series Toggle

XTD2D2AGP


UPC:786685885681



Dimensions:


  • Height: 2.34 IN

  • Length: 1.14 IN

  • Width: .64 IN








Warranties:

  •  Eaton Selling Policy 25-000, two (2) years from the date of shipment, excluding incandescent bulbs. LEDs and X Series products are warrantied for one (1) year from the date of shipment.




Specifications:

  • Type: Switch
  • Amperage Rating: 20A/10A
  • Circuit Position Center: NONE
  • Circuit Position Down: ON
  • Functions: 1PDT
  • Number Of Poles: Single-pole
  • Terminals: Screw
  • Voltage Rating: 125 Vac/277 Vac





Technical Specs








  • Item
    Toggle Switch



  • Contact Form
    SPDT



  • Number of Connections
    3



  • Switch Function
    On/Momentary On



  • AC Contact Rating
    20A @ 125VAC, 10A @ 277VAC



  • HP
    3/4



  • Terminals
    Screw



  • Mounting Hole
    0.50" dia.






  • DC Contact Rating
    15A @ 28VDC



  • Actuator Length
    0.68"



  • Stem Length
    0.500"



  • Stem Dia. and Thread Size
    0.500"



  • Actuator Color
    Silver



  • Stem Color
    Silver



  • Standards
    UL Recognized, RoHS



  • Includes
    Panel Mounting
