| range of product |
9007 |
|
|---|---|---|
| series name |
Heavy duty |
|
| product or component type |

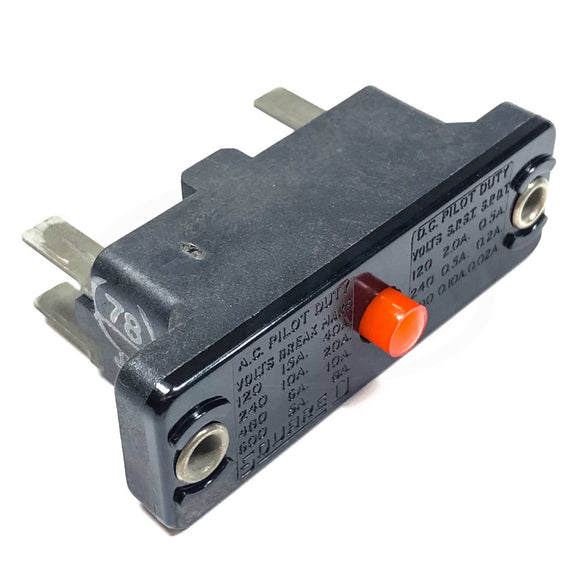

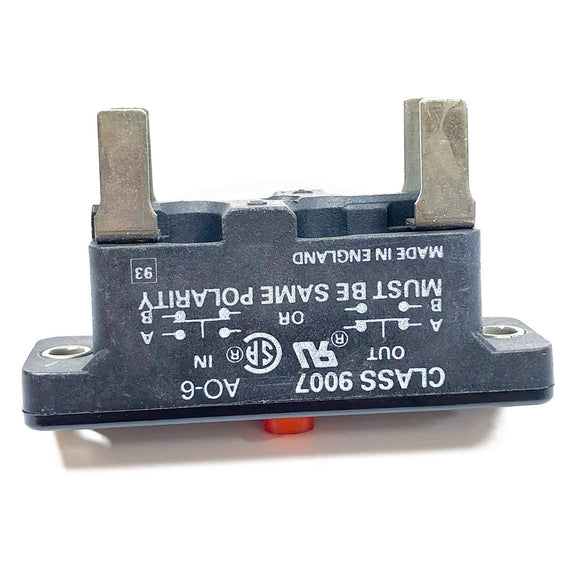

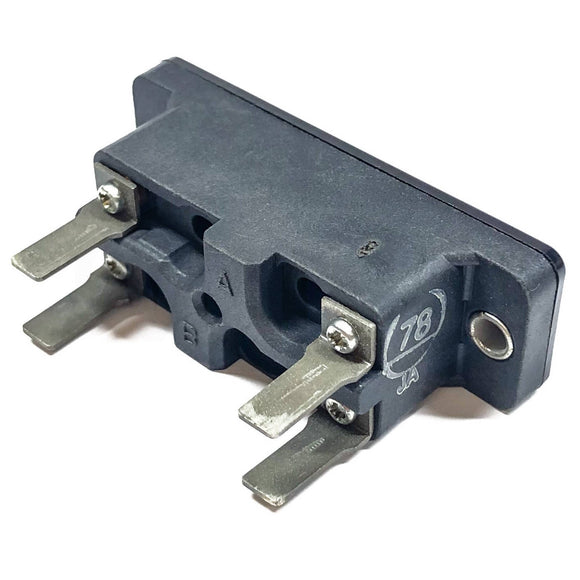

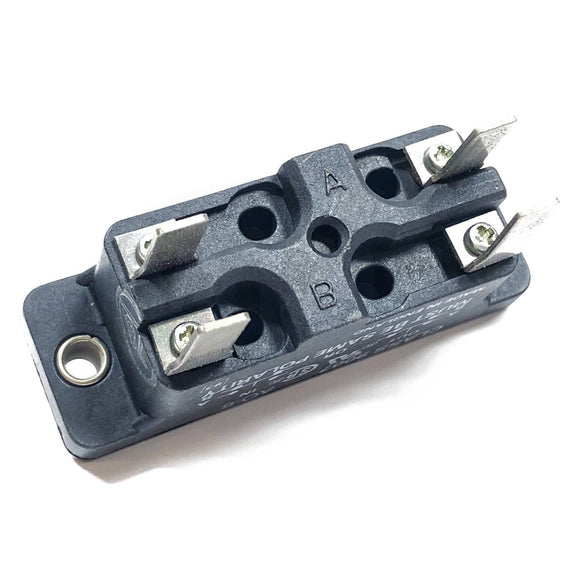

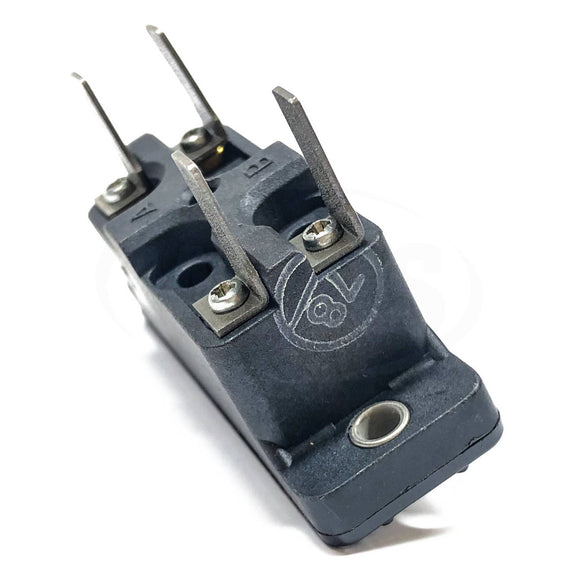

Snap basic limit switch |
|
| device short name |
9007AO/CO |
|
| body type |
Plug-in |
|
| mounting mode |
- |
|
|---|---|---|
| operator profile |
Plunger head |
|
| material |
Metal |
|
| body material |
Cast zinc |
|
| operator material |
Cast zinc |
|
| fixing mode |
By the body |
|
| movement of operating head |
Linear |
|
| type of operator |
Plastic spring return plunger with thermoplastic end |
|
| switch actuation |
On end |
|
| type of approach |
1 direction vertical approach |
|
| electrical connection |
1...2 cables 6 binder head screw terminals (AWG 22...AWG 14) |
|
| number of poles |
1 |
|
| contacts type and composition |
NC-NO, switch function: SPDT-DB |
|
| contact form |
Form Z |
|
| contact operation |
Snap action |
|
| number of steps |
1 |
|
| contacts material |
Silver contacts |
|
| positive opening |
Without |
|
| terminals description ISO n°1 |
(1-2)NC (3-4)NO |
|
| minimum force for tripping |
0.63 lbf |
|
| maximum force for tripping |
0.88 lbf |
|
| [Ie] rated operational current |
6 A at 480 V AC, A600 conforming to NEMA rating designation 10 A at 240 V AC, A600 conforming to NEMA rating designation 15 A at 120 V AC, A600 conforming to NEMA rating designation 0.1 A at 250 V DC 0.25 A at 125 V DC 5 A at 600 V AC, A600 conforming to NEMA rating designation |
|
| [Ithe] conventional enclosed thermal current |
15 A |
|
| [Ui] rated insulation voltage |
600 V - for contact block (degree of pollution: 3) conforming to UL 508 600 V - for contact block conforming to CSA C22.2 No 14 |
|
| width |
0.83 in |
|
| height |
2.5 in |
|
| depth |
1.03 in |
|
| product weight |
0.1 lb(US) |
|
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250 |
|
|---|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529 |
|
| ambient air temperature for operation |
-20...185 °F |
|
| ambient air temperature for storage |
-20...185 °F |
|
| Category |
21491 - 9007 A SNAP SWITCHES |
|
|---|---|---|
| Discount Schedule |
DS1 |
|
| GTIN |
00785901803317 |
|
| Nbr. of units in pkg. |
1 |
|
| Package weight(Lbs) |
0.10000000000000001 |
|
| Returnability |
Y |
|
| Country of origin |
MX |
|
