| range of product |
Harmony 9001K |
|
|---|---|---|
| product or component type |

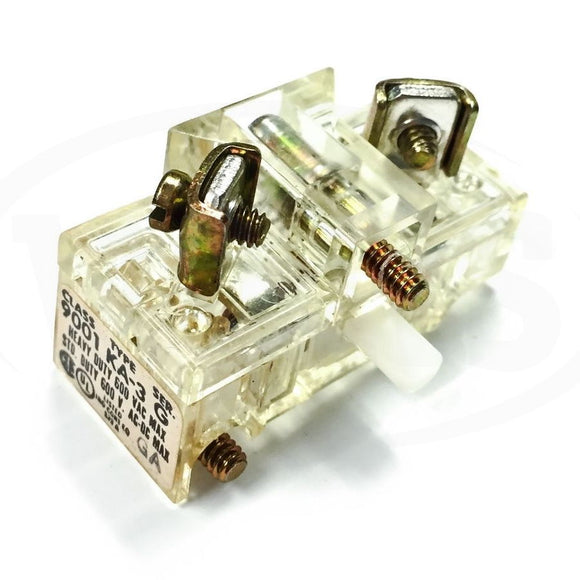

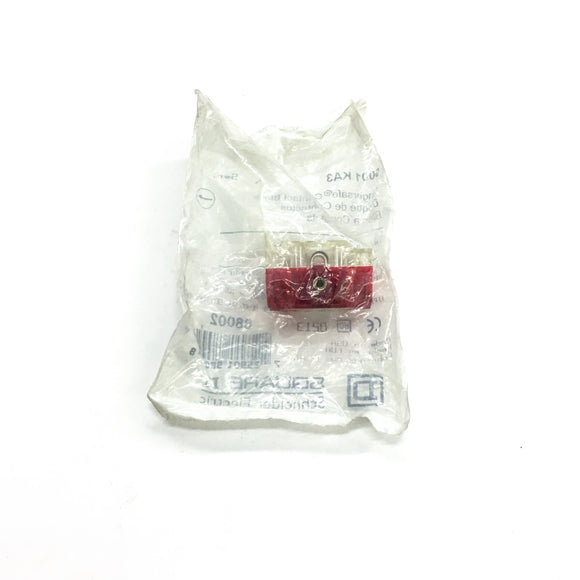

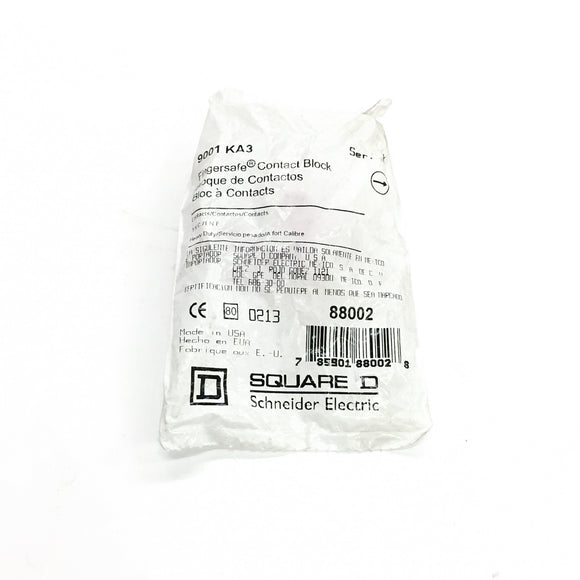

Contact block with protected terminals |
|
| device short name |
9001K |
|
| terminals description ISO n°1 |
(3-4)NO |
|
|---|---|---|
| product weight |
0.05 lb(US) (0.023 kg) |
|
| contacts type and composition |
1 NC |
|
| contact operation |
Standard |
|
| positive opening |
With conforming to IEC 60947-5-2 |
|
| connections - terminals |
Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to IEC 60947-1 |
|
| tightening torque |
7.08 lbf.in (0.8 N.m) conforming to IEC 60947-1 |
|
| shape of screw head |
Cross slotted head |
|
| contacts material |
Silver alloy contacts |
|
| short-circuit protection |
10 A cartridge fuse conforming to IEC 60947-5-1 |
|
| [Ith] conventional free air thermal current |
10 A |
|
| [Ui] rated insulation voltage |
250 V (degree of pollution: 3) conforming to IEC 60947-1 |
|
| [Uimp] rated impulse withstand voltage |
2.5 kV conforming to IEC 60947-1 |
|
| [Ie] rated operational current |
3 A at 240 V AC-15, A600-Q600 conforming to NEMA 0.55 A at 125 V DC-13, A600-Q600 conforming to NEMA |
|
| [Icm] rated short-circuit making capacity |
<= 0.1 kA at 600 V DC-13 <= 12 kA at 600 V AC-15, 7200 VA <= 15 kA at 480 V AC-15, 7200 VA <= 30 kA at 240 V AC-15, 7200 VA <= 60 kA at 120 V AC-15, 7200 VA <= 0.27 kA at 250 V DC-13 <= 0.55 kA at 125 V DC-13 |
|
| rated breaking capacity |
<= 3 kA at 240 V AC-15, 720 VA <= 6 kA at 120 V AC-15, 720 VA <= 0.1 kA at 600 V DC-13 <= 0.27 kA at 250 V DC-13 <= 0.55 kA at 125 V DC-13 <= 1.2 kA at 600 V AC-15, 720 VA <= 1.5 kA at 480 V AC-15, 720 VA |
|
| protective treatment |
TC |
|
|---|---|---|
| ambient air temperature for storage |
-40...158 °F (-40...70 °C) |
|
| ambient air temperature for operation |
-13...158 °F (-25...70 °C) |
|
| electrical shock protection class |
Class II conforming to IEC 61140 |
|
| IP degree of protection |
IP20 conforming to IEC 60529 |
|
| standards |
EN/IEC 60947-5-4 JIS C 852 JIS C 4520 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508 |
|
| product certifications |
NEMA UL 508 |
|
| vibration resistance |
7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 |
|
| shock resistance |
50 gn conforming to IEC 60068-2-27 |
|
| Category |
21434 - 9001 KA CONTACT BLOCKS |
|
|---|---|---|
| Discount Schedule |
CS1 |
|
| GTIN |
00785901880028 |
|
| Nbr. of units in pkg. |
1 |
|
| Package weight(Lbs) |
5.0000000000000003E-2 |
|
| Returnability |
Y |
|
| Country of origin |
MX |
|
