| range of product |
Harmony 9001K |
|
|---|---|---|
| product or component type |

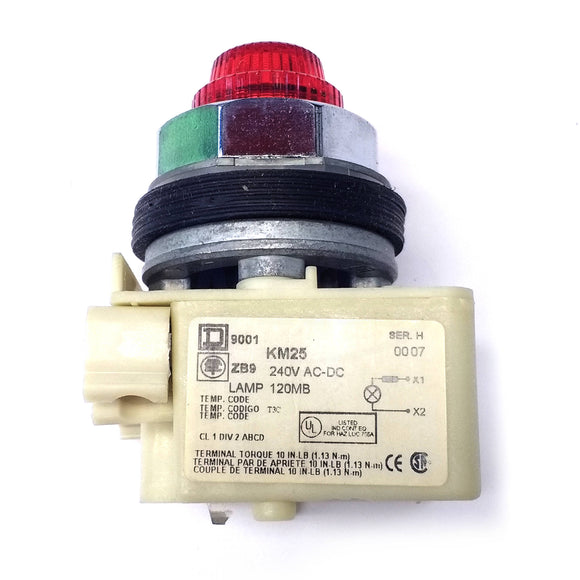

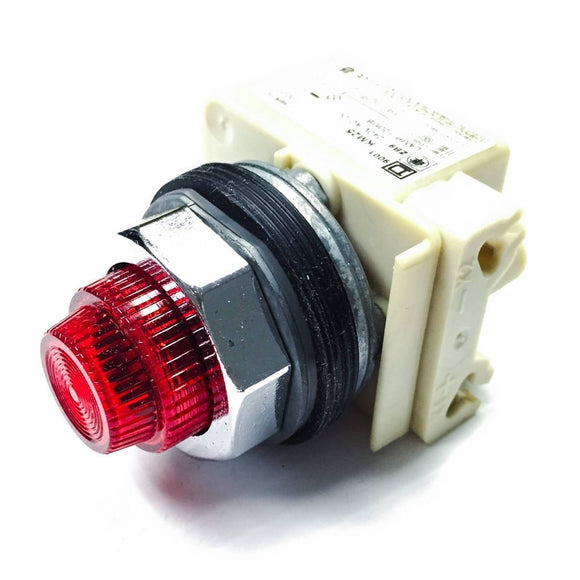

Pilot light |
|
| device short name |
9001K |
|
| bezel material |
Chromium plated metal |
|
|---|---|---|
| mounting diameter |
1.18 in (30 mm) |
|
| shape of signaling unit head |
Round |
|
| lens type |
Domed (plastic) |
|
| cap/operator or lens colour |
Red |
|
| light source |
Incandescent |
|
| bulb base |
BA 9s |
|
| light block supply |
With resistor |
|

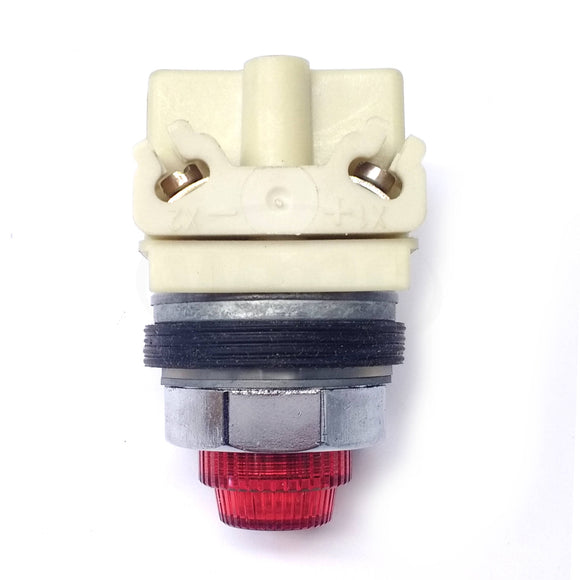

| connections - terminals |
Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to IEC 60947-1 |
|
| tightening torque |
7.08 lbf.in (0.8 N.m) conforming to IEC 60947-1 |
|
| shape of screw head |
Cross slotted |
|
| operating position |
Any position |
|
| [Ui] rated insulation voltage |
250 V (degree of pollution: 2) conforming to IEC 60947-1 |
|
| [Uimp] rated impulse withstand voltage |
2.5 kV conforming to IEC 60947-1 |
|
| short-circuit protection |
10 A cartridge fuse conforming to IEC 60947-5-1 |
|
| [Ith] conventional free air thermal current |
10 A |
|
| CAD overall width |
2.13 in (54 mm) |
|
| CAD overall height |
2.76 in (70 mm) |
|
| CAD overall depth |
1.65 in (42 mm) |
|
| product weight |
0.46 lb(US) (0.21 kg) |
|
| compatibility code |
9001K |
|
| standards |
JIS C 4520 CSA C22.2 No 14 UL 508 EN/IEC 60947-1 JIS C 852 EN/IEC 60947-5-1 EN/IEC 60947-5-4 |
|
|---|---|---|
| product certifications |
NEMA UL 508 |
|
| protective treatment |
TC |
|
| ambient air temperature for storage |
-40...158 °F (-40...70 °C) |
|
| ambient air temperature for operation |
-13...158 °F (-25...70 °C) |
|
| vibration resistance |
7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 |
|
| shock resistance |
50 gn conforming to IEC 60068-2-27 |
|
| overvoltage category |
Class II conforming to IEC 61140 |
|
| IP degree of protection |
IP66 conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
|
| Category |
21426 - 9001 K (NOT KA,KM,KX) |
|
|---|---|---|
| Discount Schedule |
CS1 |
|
| GTIN |
00785901032120 |
|
| Nbr. of units in pkg. |
1 |
|
| Package weight(Lbs) |
0.5 |
|
| Returnability |
N |
|
| Country of origin |
MX |
|
