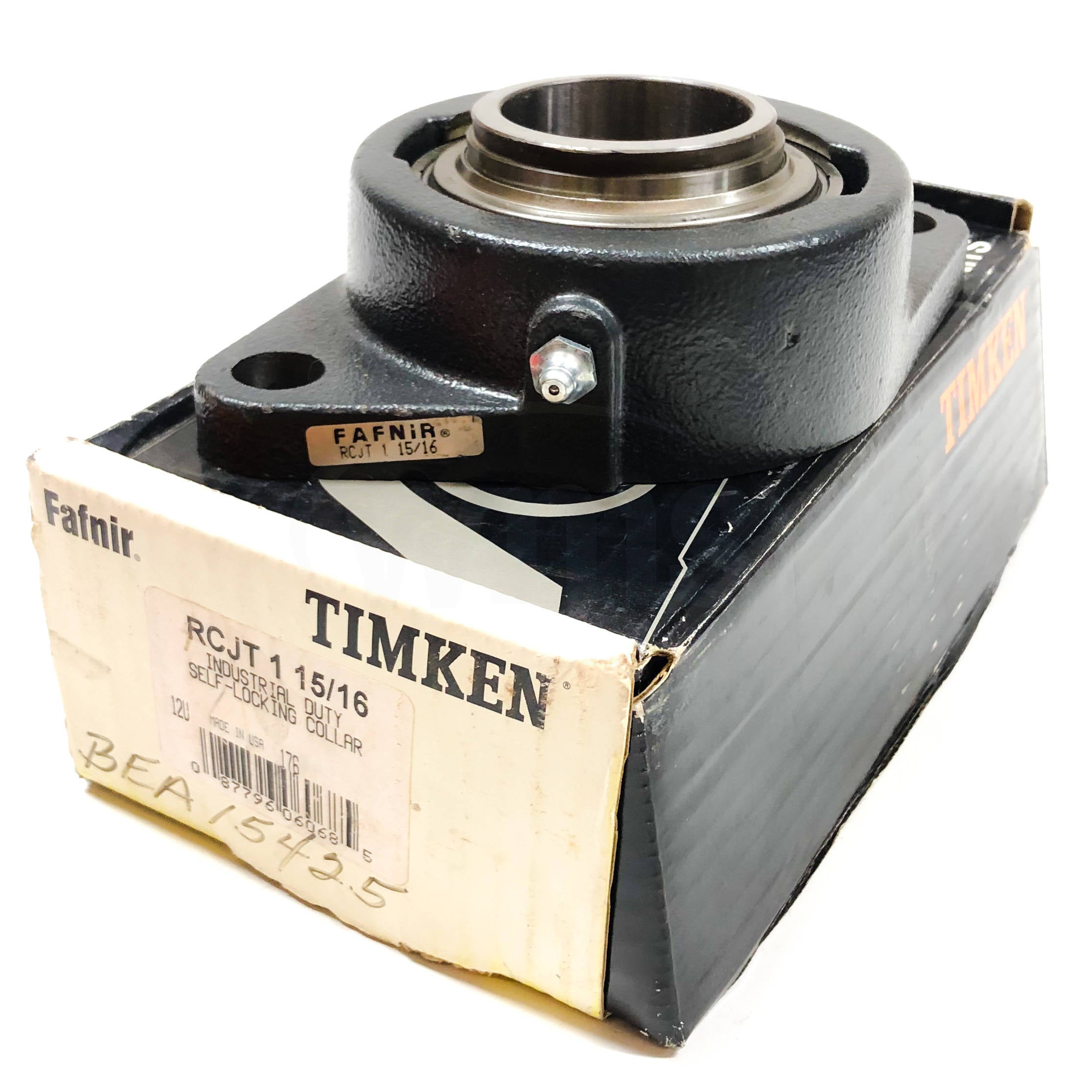

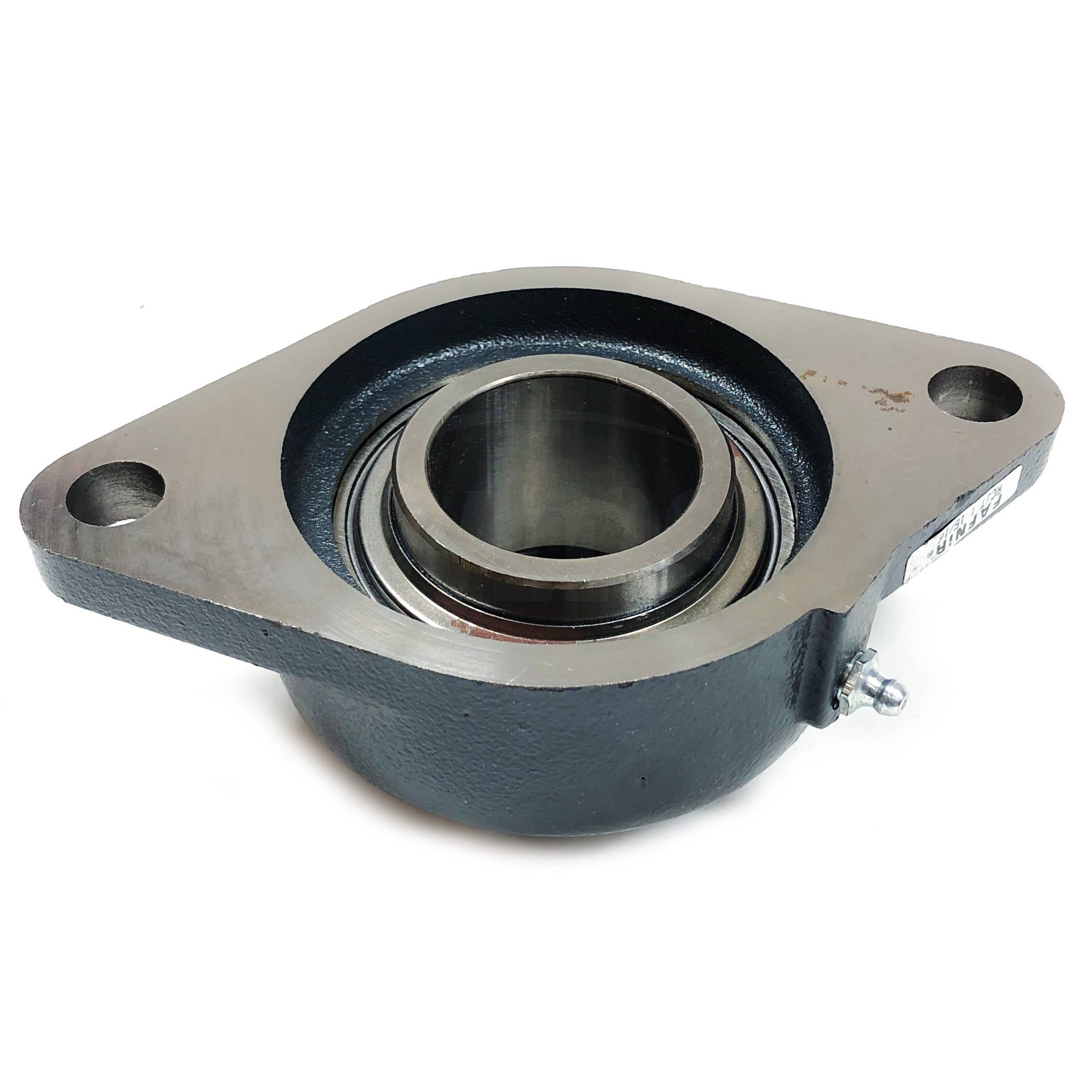

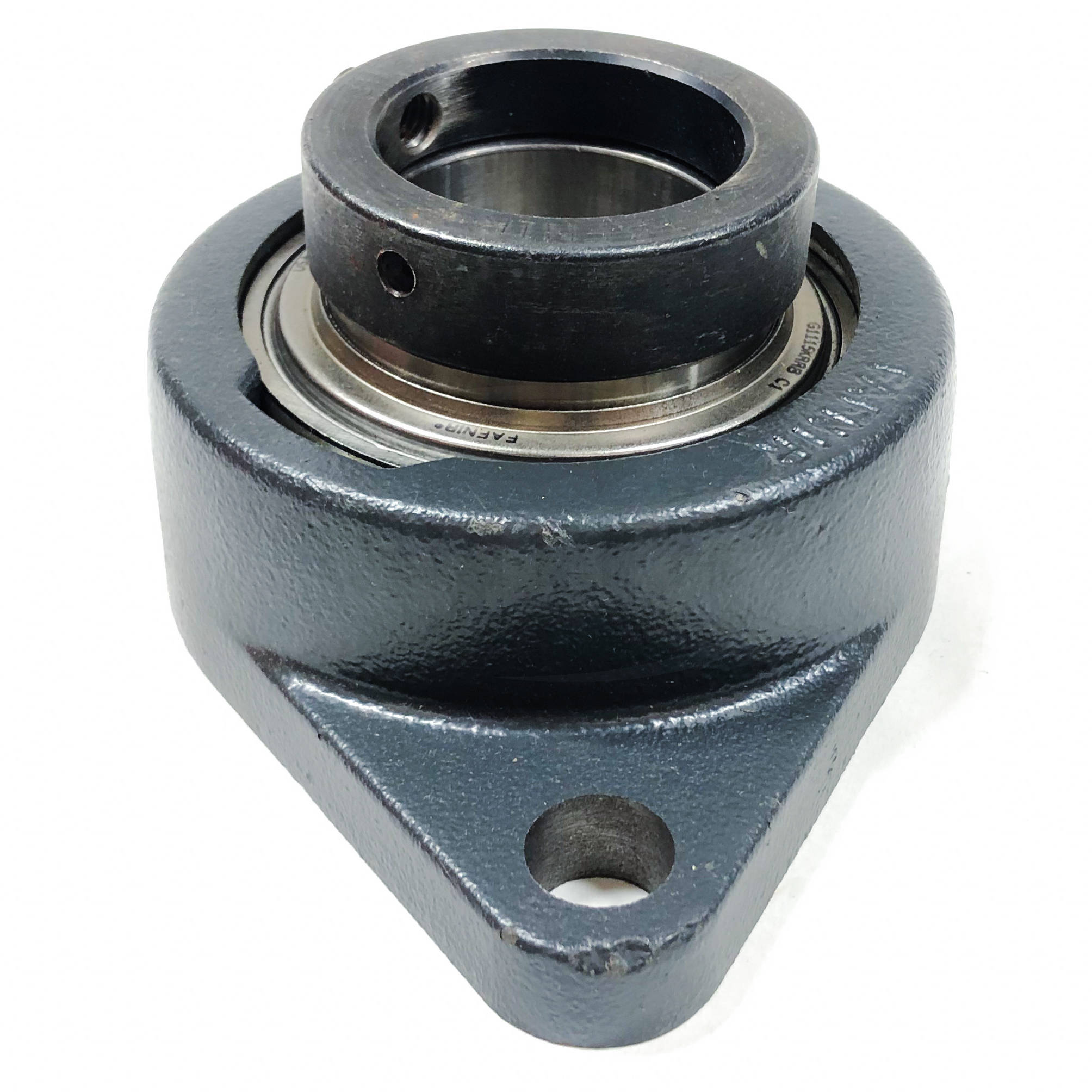

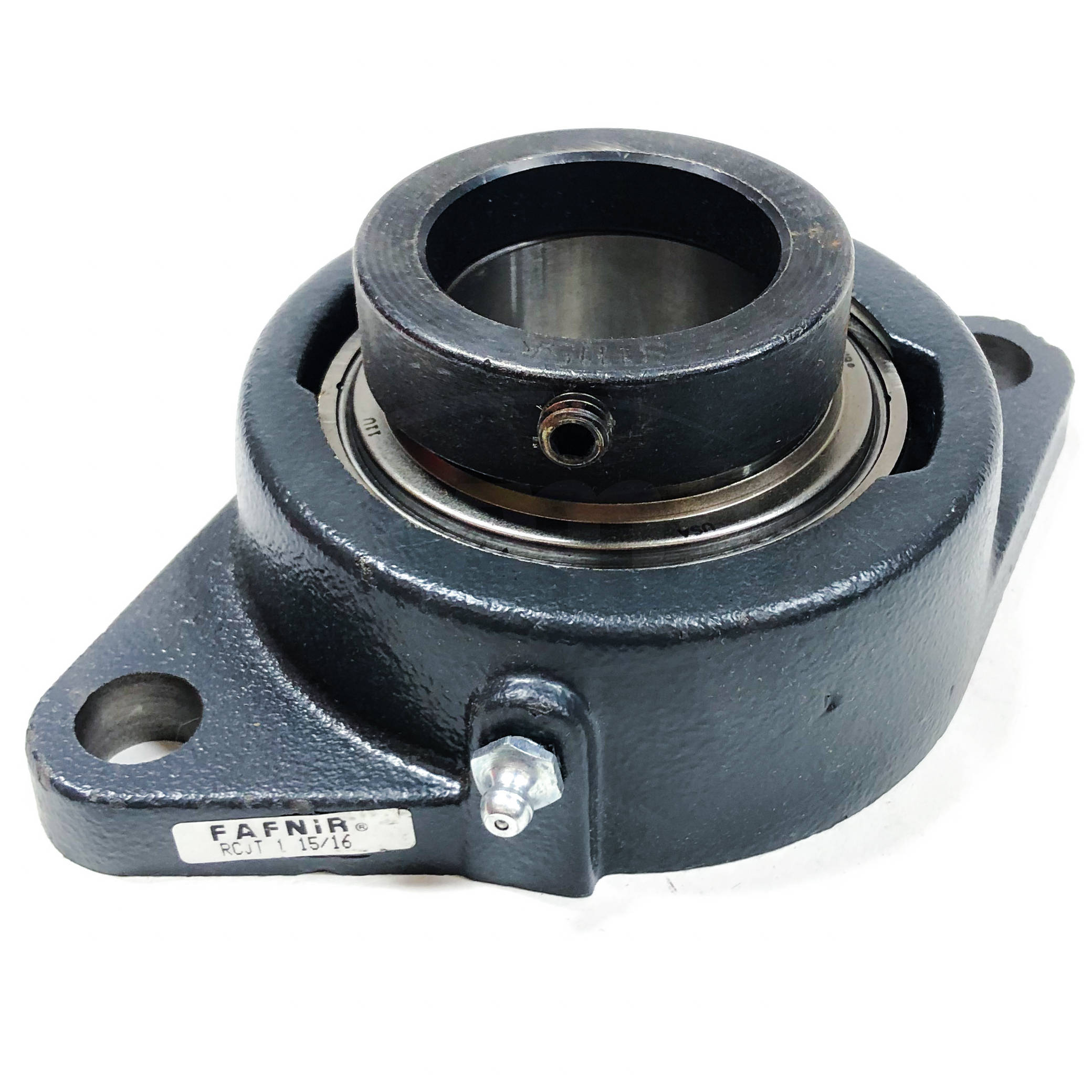

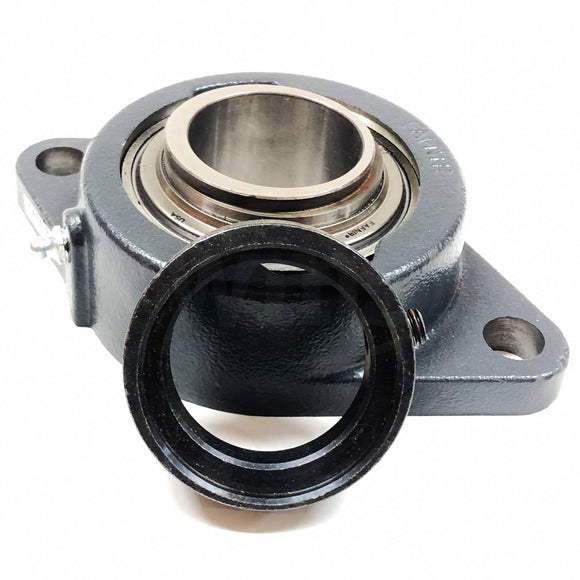

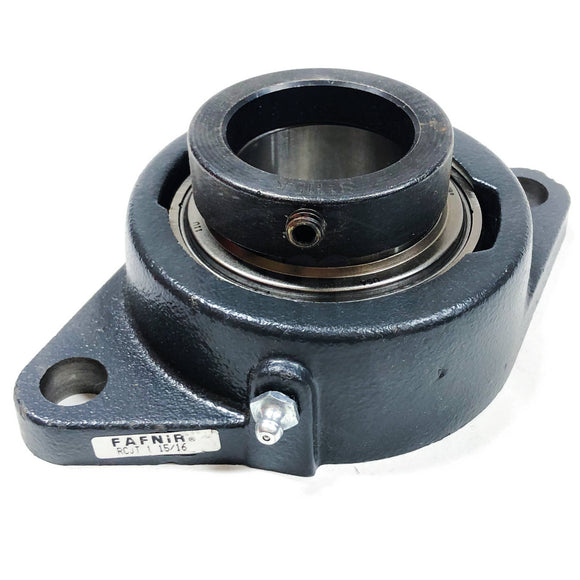

RCJT1-15/16 Timken Two-Bolt Flanged Ball Bearing, 1-15/16"

$199.97

Shipping calculated at checkout

Witmer Motor Service SKU: RCJT1-15/16 Barcode: 087796060685

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

Shaft Size d

 1 15/16 in49.2 mm

Bearing Type

 Ball Bearing

Bearing Number

 G1115KRRB

Dimension E

 2.614 in66.4 mm

Inside Ring Outside Diameter

 2.728 in69.3 mm

e

 0.103 in2.615 mm

Series

 Industrial

Weight

 6.005 lb2.724 Kg

Seal Type

 Shroud Seal

Housing Construction

 Two-Bolt Flange

Alternate Part Name

 RCJT1 15/16

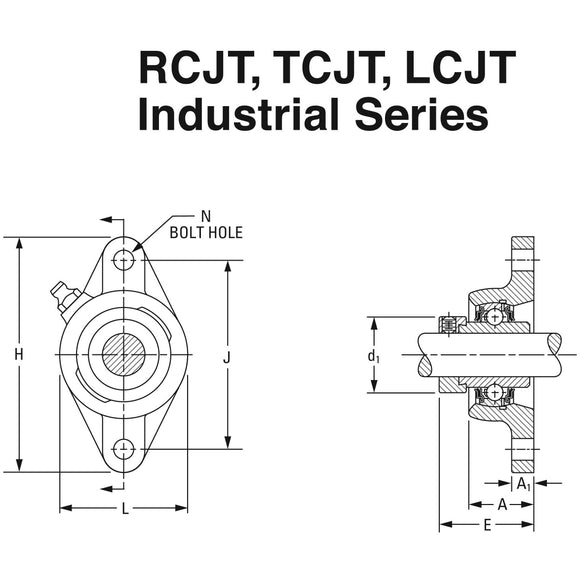

Dimensions

Housing Width A

 42.9 mm1.689 in

Total Length H

 188.9 mm7.437 in

Total Height L

 115.9 mm4.563 in

Bolt Hole Spacing J

 157.2 mm6.189 in

Bolt Hole Size N

 17.1 mm0.673 in

Flange Thickness A1

 12.70 mm0.500 in

Center of Bearing from Housing End A2

 1.116 mm0.044 in

Inside Ring Width B

 0 mm0.000 in

Basic Load Ratings

Static Load Rating

 5210 lbf23200 N

Dynamic Load Rating

 8740 lbf38900 N
