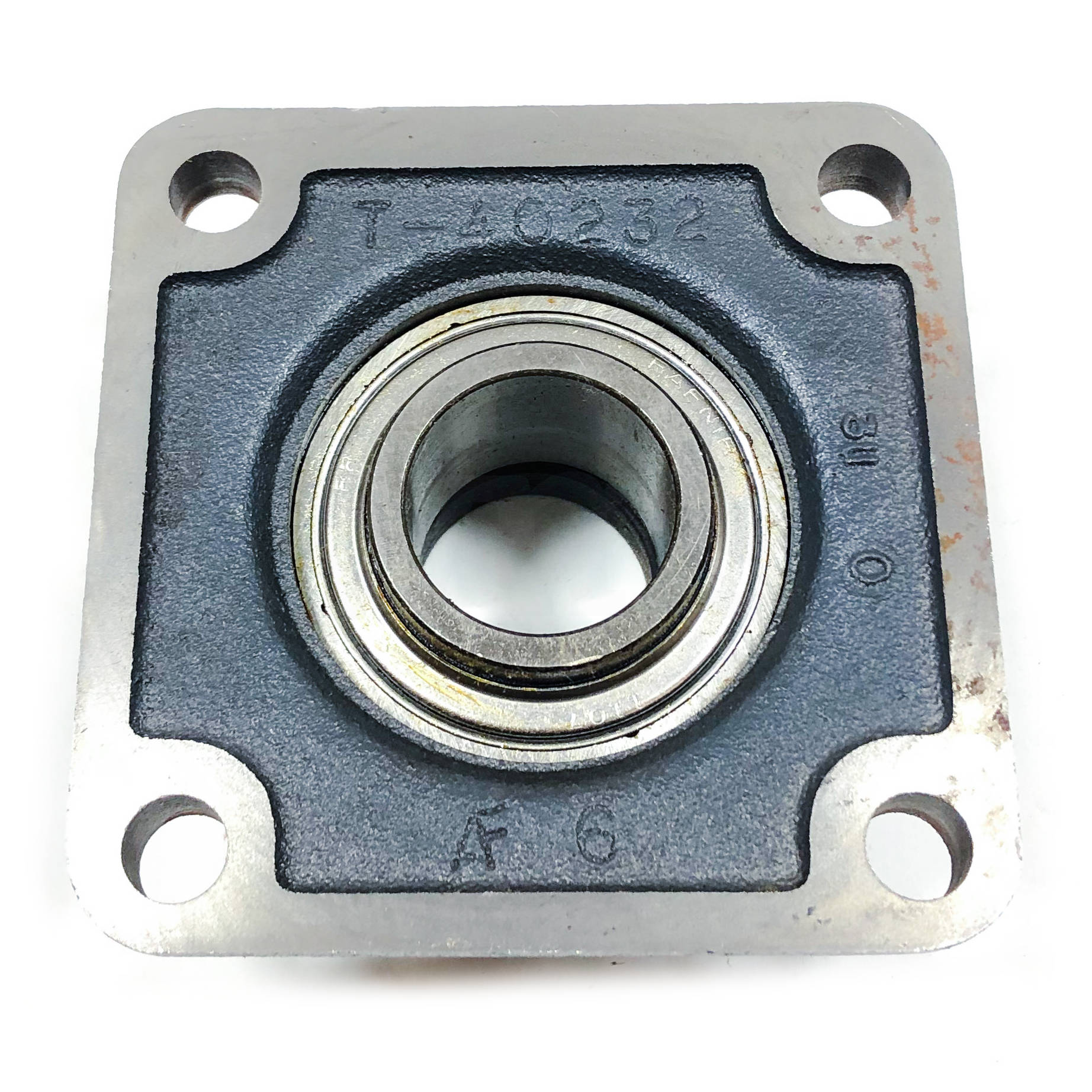

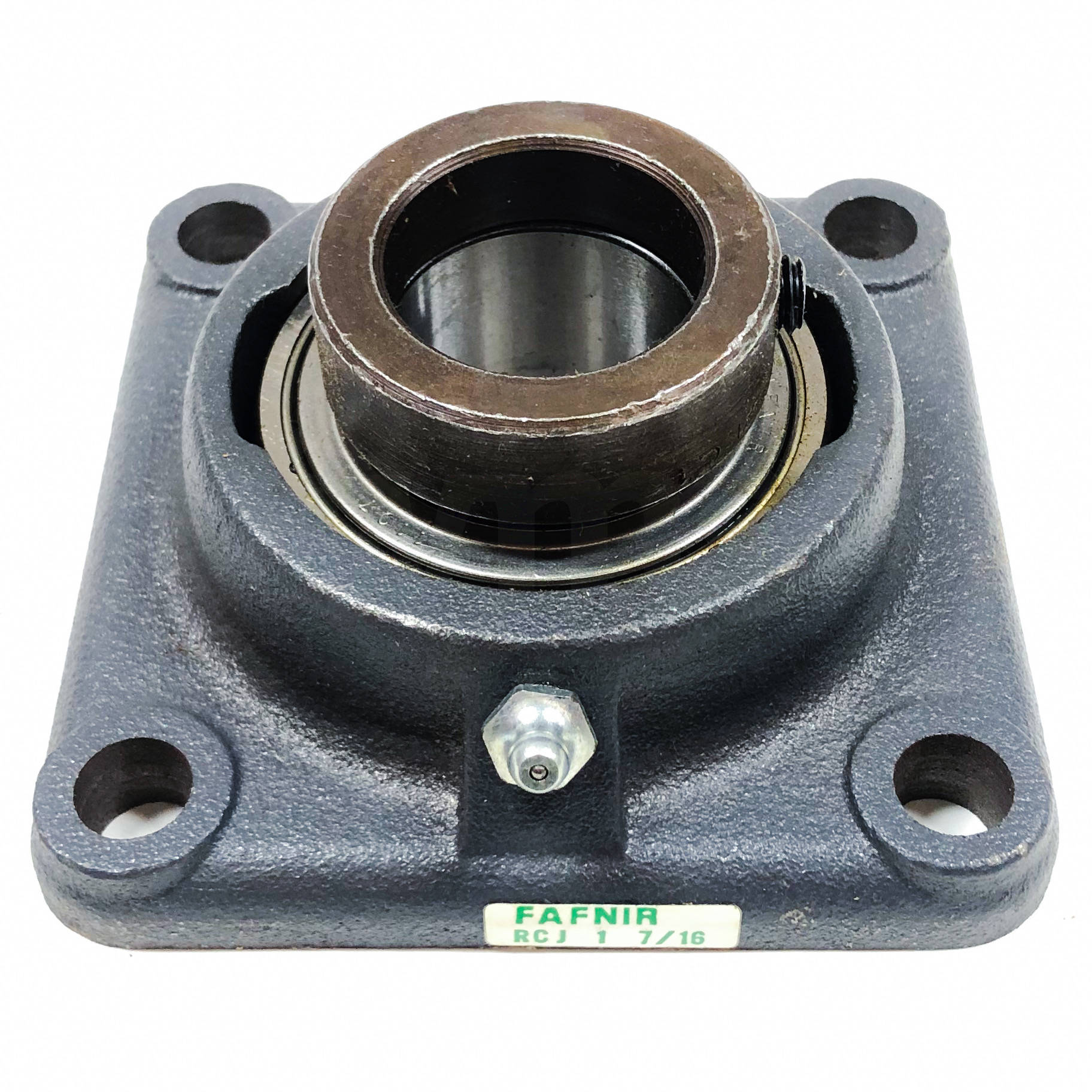

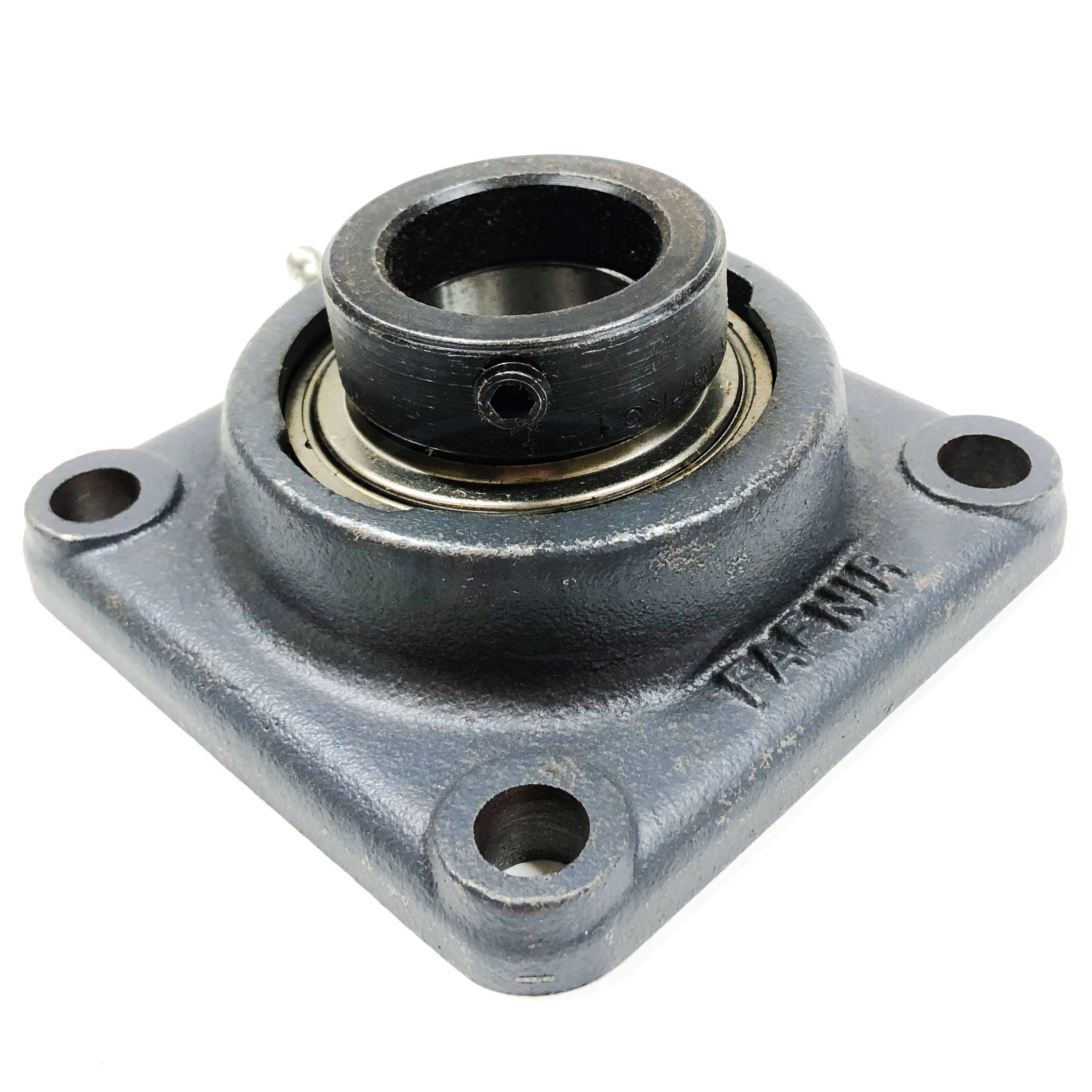

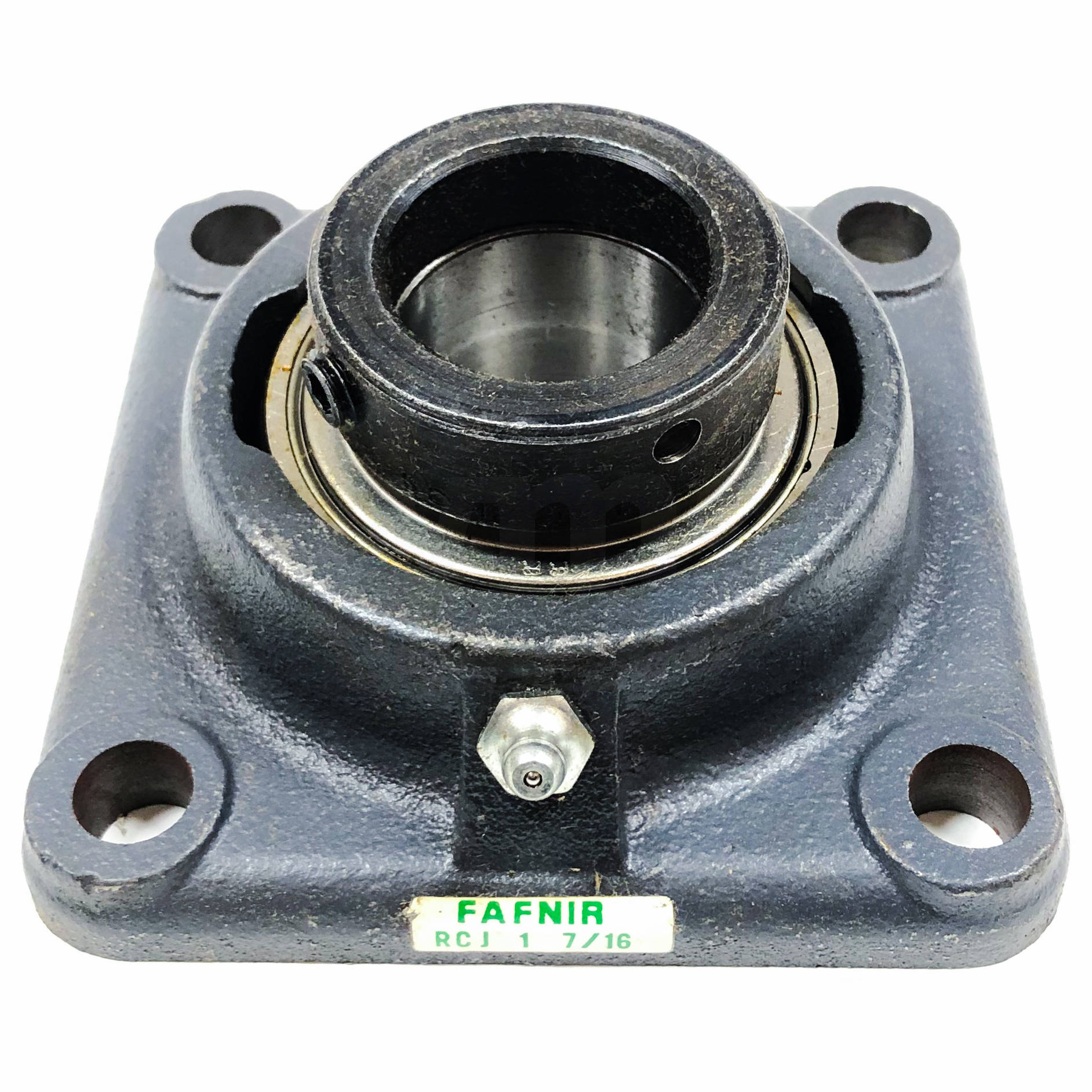

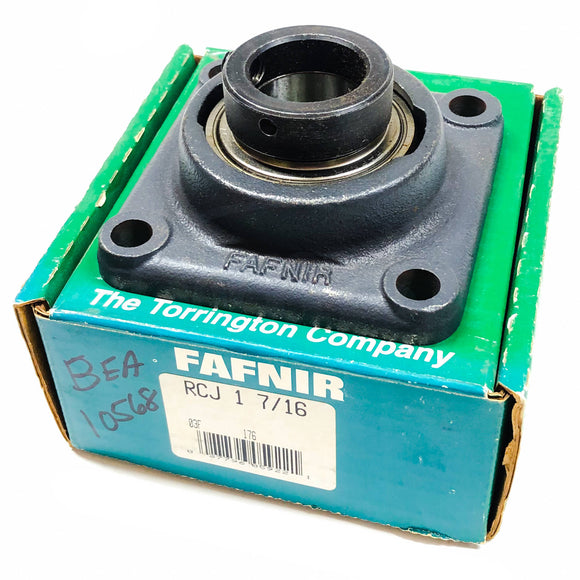

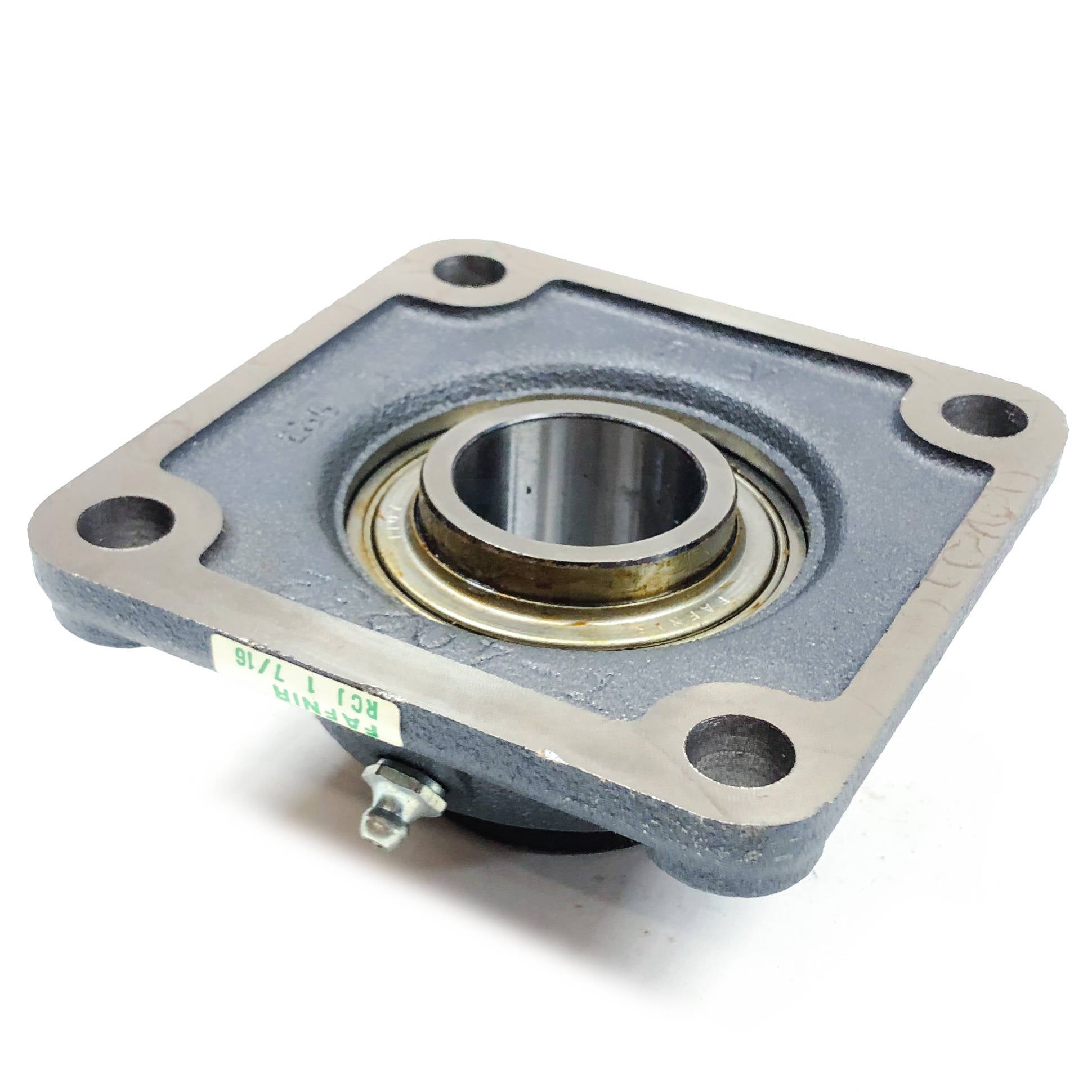

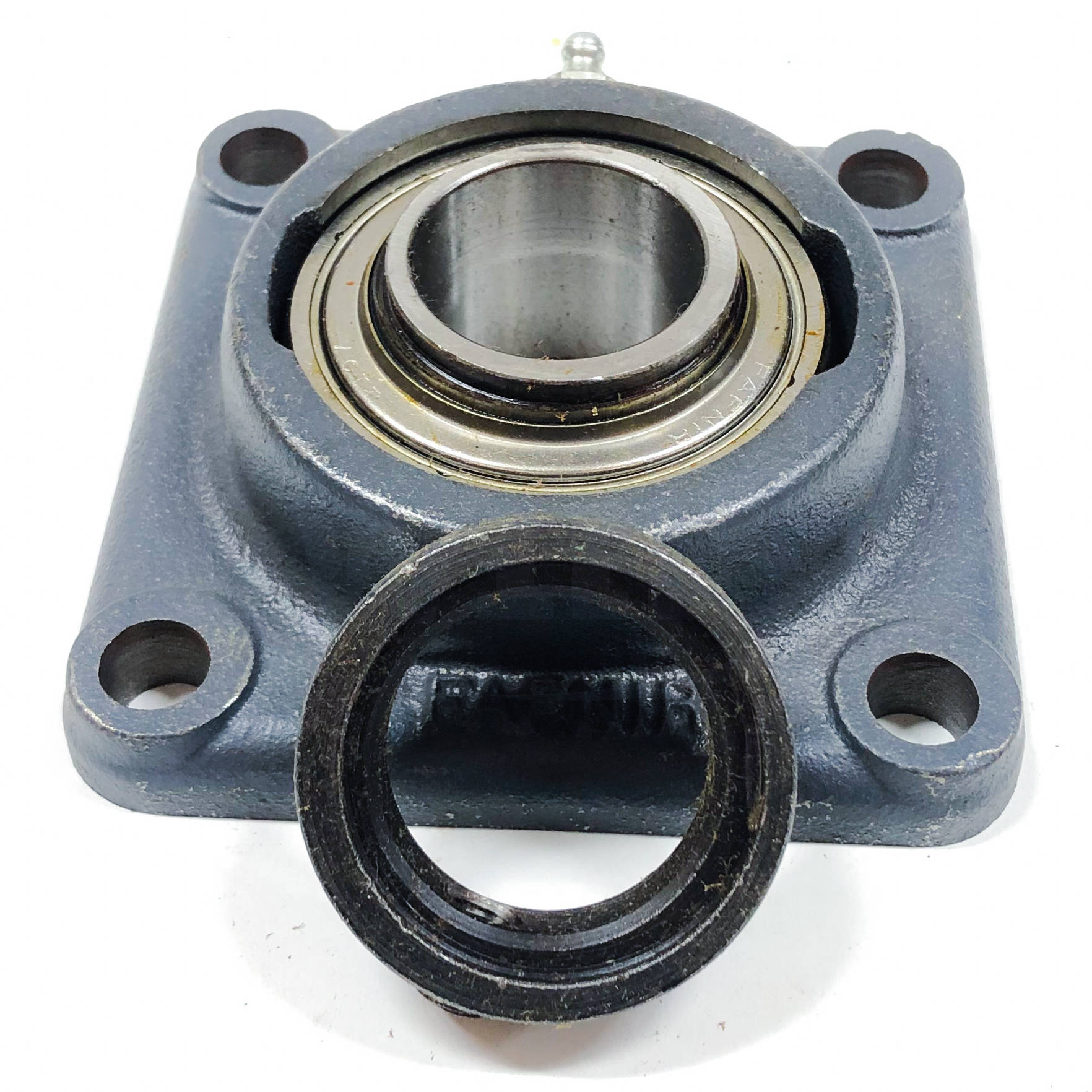

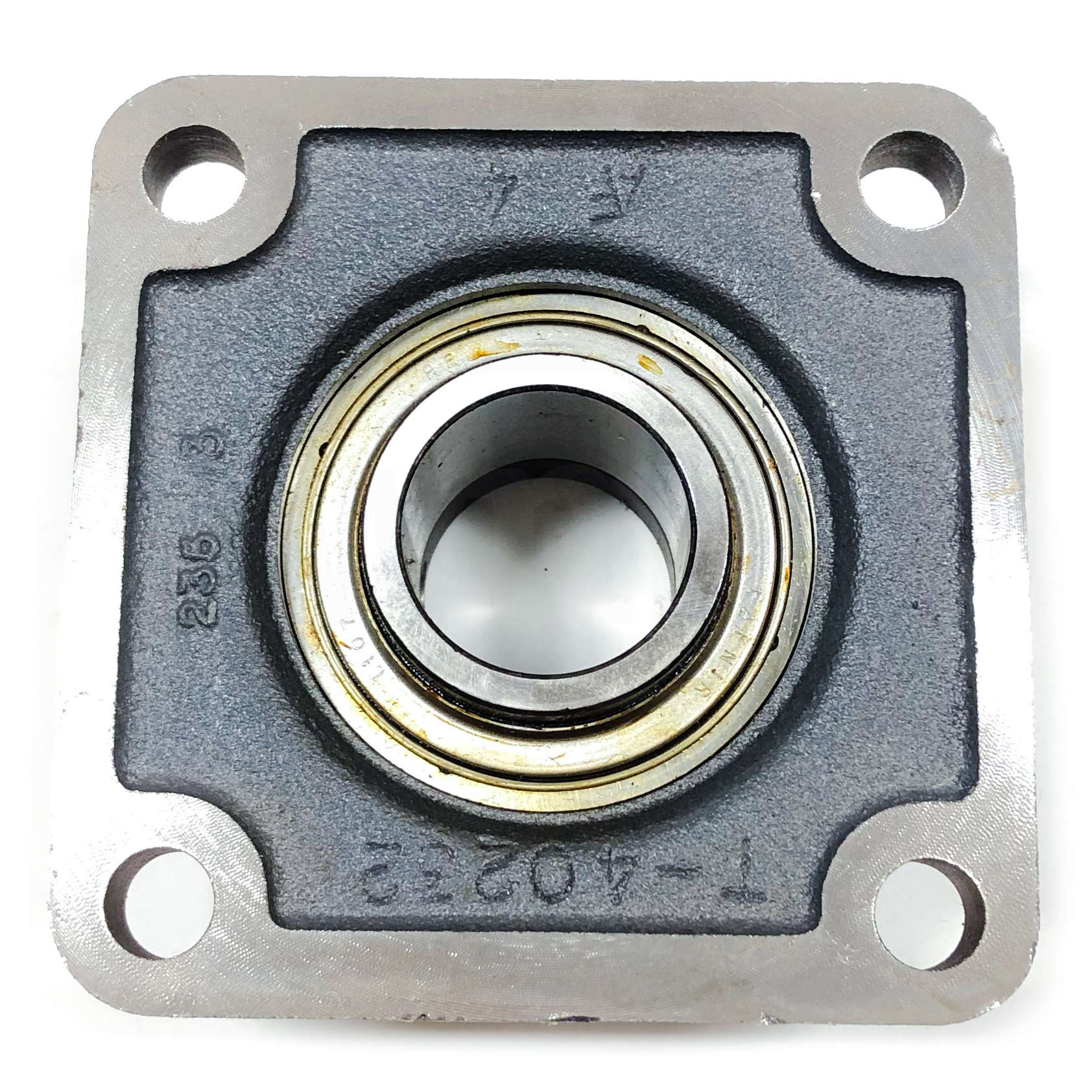

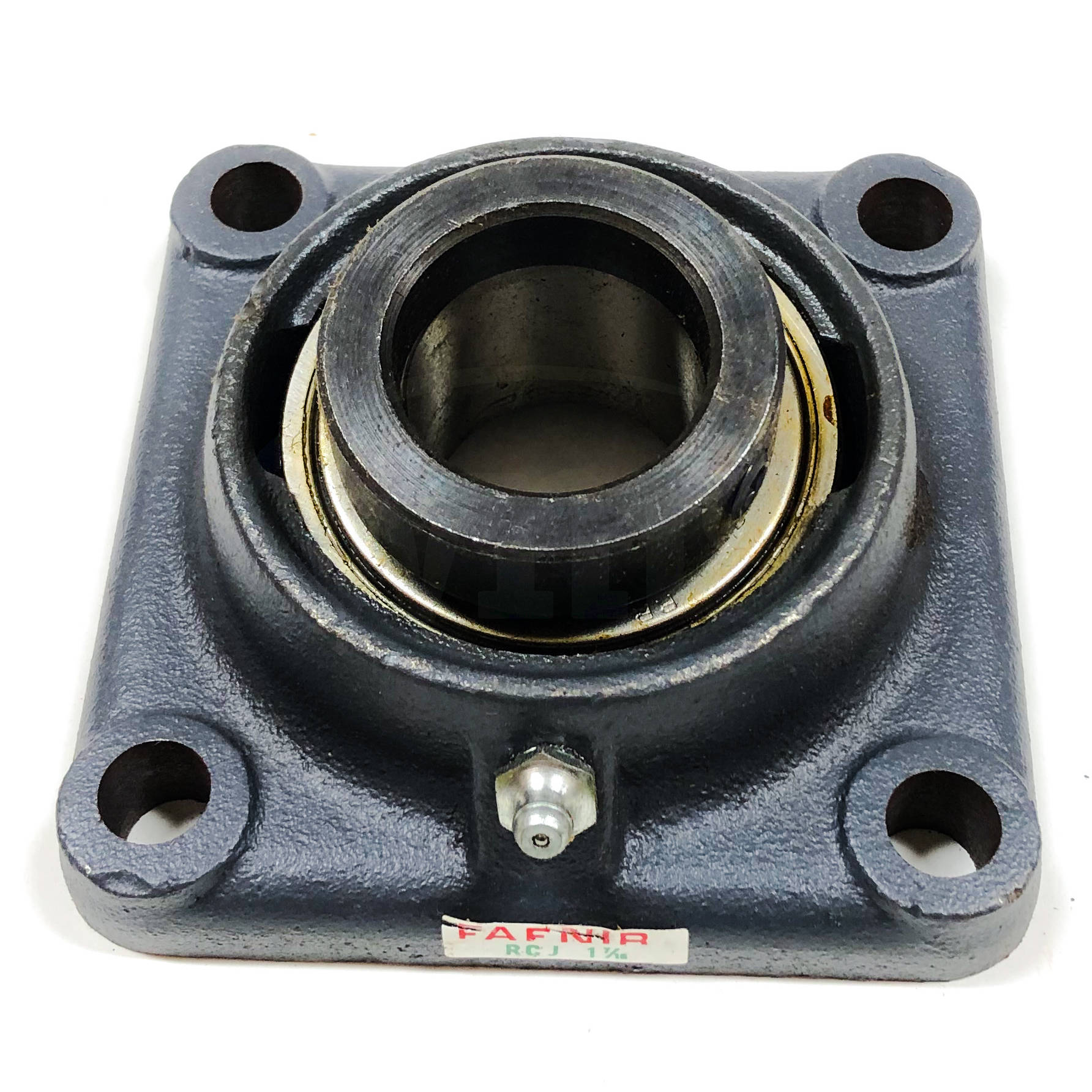

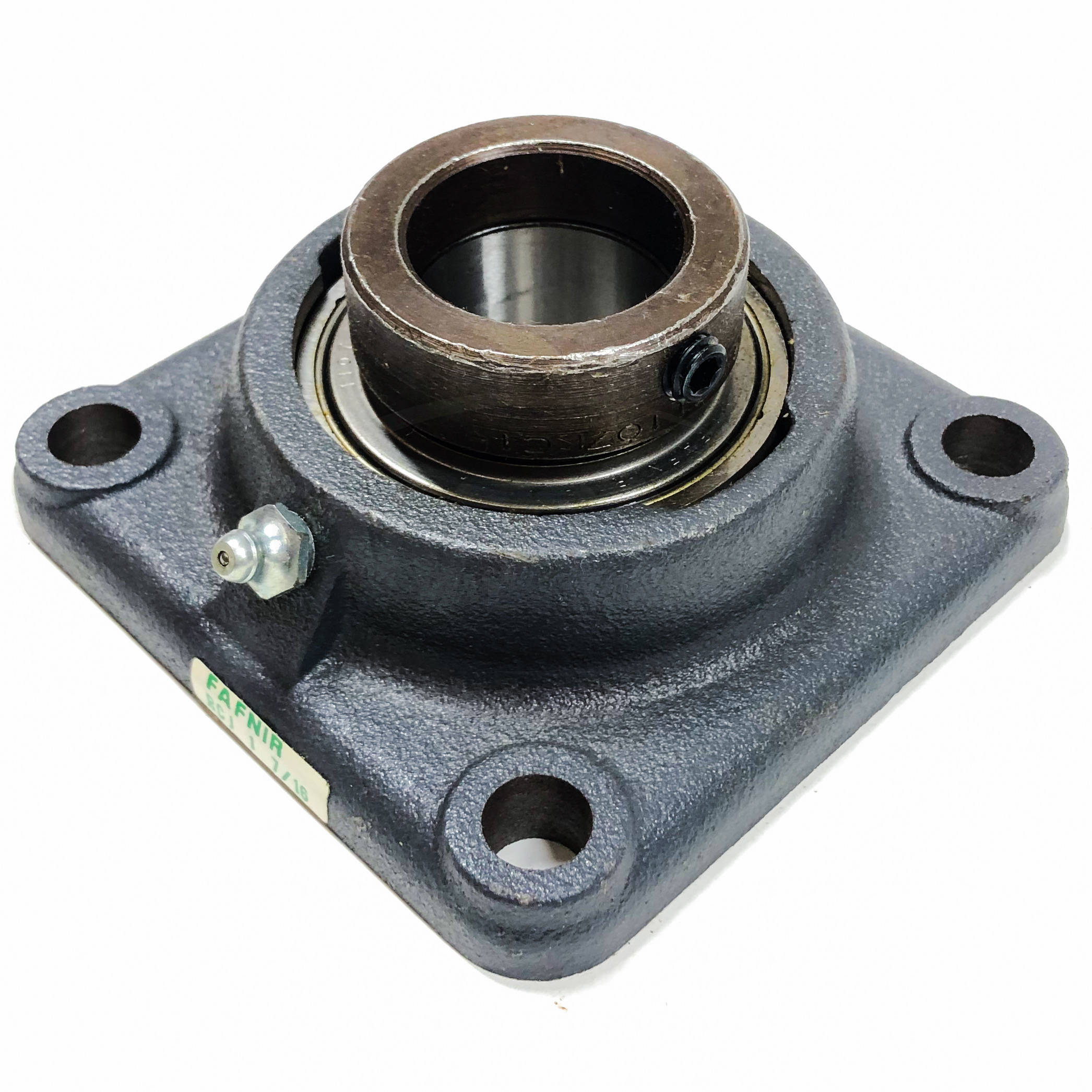

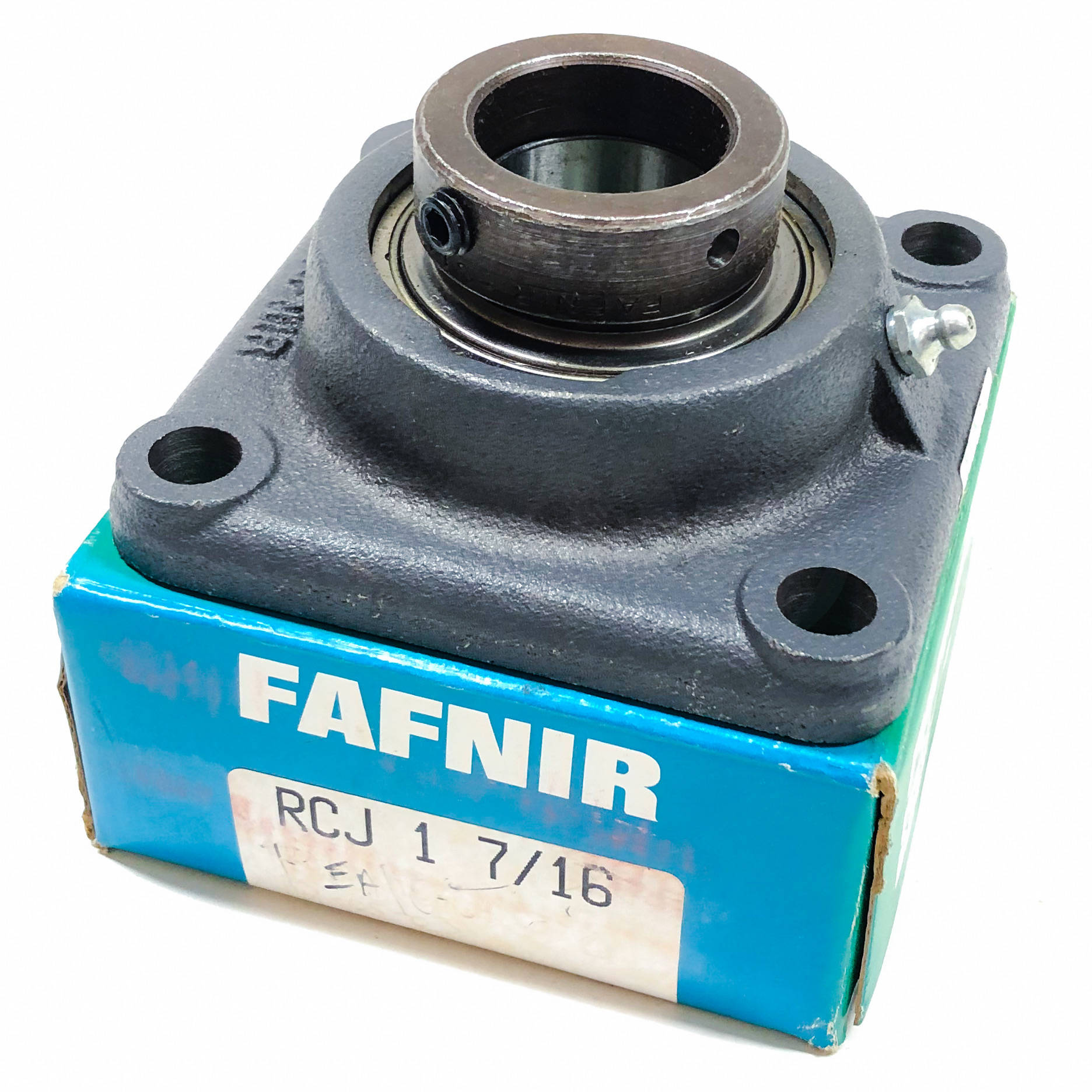

RCJ1-7/16 Fafnir Four-Bolt Flanged Ball Bearing, 1-7/16" Bore

$129.97

Shipping calculated at checkout

Witmer Motor Service SKU: RCJ1-7/16 Barcode: 087796059221

30 Day
Return Policy

Ships Fast
in 24 hours

6

In stock!

Specifications

Shaft Size d

 1 7/16 in36.5 mm

Bearing Number

 G1107KRRB

Dimension D

 3.500 in88.9 mm

Dimension E

 2.106 in53.5 mm

Inside Ring Outside Diameter

 2.110 in53.6 mm

Series

 Industrial

Weight

 3.94 lb1.787 Kg

Seal Type

 Shroud Seal

Housing Construction

 Four-Bolt Square Flange

Alternate Part Name

 RCJ17/16

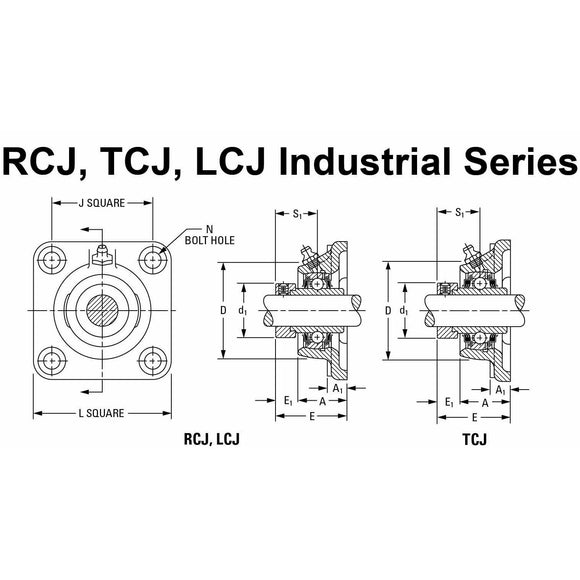

Dimensions

Total Length L

 117.5 mm4.626 in

Housing Width A

 1.252 in31.8 mm

Bolt Hole Spacing J

 92.1 mm3.626 in

Bolt Hole Size N

 12 mm0.472 in

Flange Thickness A1

 13.5 mm0.531 in

Center of Bearing from Housing End A2

 21 mm0.827 in

Inside Ring Width B

 N/A

Bolt Size

 M12

Center of Bearing from Bearing End S

 21 mm0.827 in

Basic Load Ratings

Static Load Rating

 3440 lbf15300 N

Dynamic Load Rating

 6400 lbf28500 N
