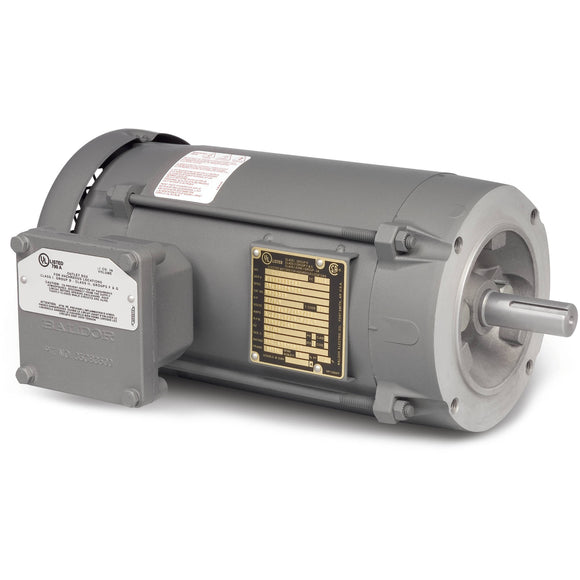

VEM7014T Baldor 1HP Explosion Proof Electric Motor, 1800RPM

$1,055.73 USD

Shipping calculated at checkout

Baldor Electric Company SKU: VEM7014T Barcode: 781568816318

30 Day
Return Policy

Ships Fast
in 24 hours

XPFC, 143T Frame, 230/460VAC 3-Phase 60Hz, C-Face, Footless, 7/8" Shaft

1 In Stock!

Description Product Specs Manufacturer





Specifications





Specs






Catalog Number

VEM7014T-5



Enclosure

XPFC



Frame

143TC



Frame Material

Steel



Frequency

60.00 Hz



Output @ Frequency

1.000 HP @ 60 HZ



Phase

3



Synchronous Speed @ Frequency

1800 RPM @ 60 HZ



Voltage @ Frequency

575.0 V @ 60 HZ



XP Class and Group

CLI GP D; CLII GP F,G



XP Division

Division I



Agency Approvals

CSA

CSA EEV

UL

UR



Ambient Temperature

40 °C



Auxillary Box

No Auxillary Box



Auxillary Box Lead Termination

None



Base Indicator

No Mounting



Bearing Grease Type

Polyrex EM (-20F +300F)



Blower

None



Current @ Voltage

1.200 A @ 575.0 V



Design Code

B



Drip Cover

No Drip Cover



Duty Rating

CONT



Efficiency @ 100% Load

85.5 %



Electrically Isolated Bearing

Not Electrically Isolated



Feedback Device

NO FEEDBACK



High Voltage Full Load Amps

1.2 a



Front Face Code

Standard



Front Shaft Indicator

None



Heater Indicator

No Heater



Insulation Class

B



Inverter Code

Not Inverter



KVA Code

L





Lifting Lugs

No Lifting Lugs



Locked Bearing Indicator

Locked Bearing



Motor Lead Exit

Ko Box



Motor Lead Termination

Flying Leads



Motor Lead Quantity/Wire Size

3 @ 18 AWG



Motor Type

X3520M



Mounting Arrangement

F1



Number of Poles

4



Overall Length

14.33 IN



Power Factor

71



Product Family

General Purpose



Pulley End Bearing Type

Ball



Pulley Face Code

C-Face



Pulley Shaft Indicator

Standard



Rodent Screen

None



RoHS Status

ROHS NON-COMPLIANT



Service Factor

1.00



Shaft Diameter

0.875 IN



Shaft Extension Location

Pulley End



Shaft Ground Indicator

No Shaft Grounding



Shaft Rotation

Reversible



Shaft Slinger Indicator

No Slinger



Speed

1760 rpm



Speed Code

Single Speed



Motor Standards

NEMA



Starting Method

Direct on line



Thermal Device - Bearing

None



Thermal Device - Winding

Normally Closed Thermostat



Vibration Sensor Indicator

No Vibration Sensor



Winding Thermal 1

None



Winding Thermal 2

None



XP Temp Code

T3C






Applications




  • Customer specified Division 1 hazardous areas

  • Pumps, fans and conveyors

  • Fixed speed operation




Features




  • Robust steel and cast iron frame designs

  • Auto thermal overload (<1 Hp), normally closed thermostats (>1 Hp)

  • Threaded lead inlet

  • Low noise vibration dampening bases



Nameplate





Nameplate

































































































NO. CC 010A
SER.
SPEC. 35E380M849G1
CAT.NO. VEM7014T-5
HP 1 T. CODE T3C
VOLTS 575
AMPS 1.2
RPM 1760
HZ 60 PH 3 CL B
SER.F. 1.00 DES B CODE L
RATING 40C AMB-CONT
FRAME 143TC NEMA-NOM-EFF 85.5
USABLE AT 208V PF 71
BLANK
NP1426XPSLEV




Performance





Performance



Performance at 575 V, 60 Hz, 1 hp


Typical performance; not guaranteed values.

General Characteristics





Full Load Torque
0 LB-FT


No-Load Current
0 A


Line-Line Res. @ 25° C
23.9 Ohms A Ph / 0 Ohms B Ph


Temp. Rise @ Rated Load
36° C


Temp. Rise @ S.F. Load





Start Configuration
DOL


Break-Down Torque
13.3 LB-FT


Pull-Up Torque
8.11 LB-FT


Locked-Rotor Torque
8.38 LB-FT


Starting Current
9.77 A



Load Characteristics






























































Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 29.0 47.0 60.0 69.0 76.0 80.0 0.0
Efficiency 0.0 74.4 83.2 85.2 85.9 85.3 84.4 0.0
Speed (RPM) 1,799 1,790 1,780 1,770 1,760 1,748 1,735 0
Line Amps 0.84 0.87 0.98 1.10 1.26 1.46 1.68 0.00

Performance Curves






  • Electric Motor
  • 1HP
  • 1800RPM

Baldor Electric Company
